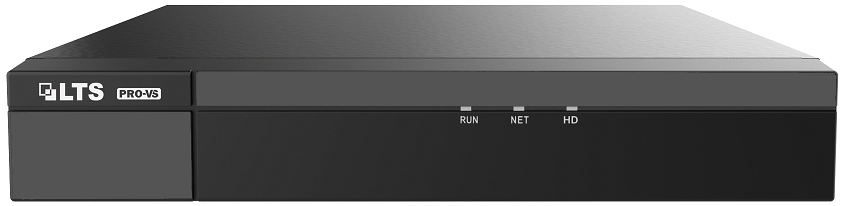

LTS VSN7104-P4 4 Channel NVR with 4 Channel Built-in PoE
LTS VSN7104-P4 4 Channel NVR with 4 Channel Built-in PoE
- Video Input: 4CH IP@80Mbps
- Video Output: HDMI up to 4K(3840 x 2160) / VGA up to 1080P
- Max. Recording Resolution: Up to 8MP(3840 x 2160)
- Decoding Format: H.265/H.264
- Decoding Capability: 1CH@4K / 4CH@1080P
- Max. Playback Resolution: Up to 8MP(3840 x 2160)
- Audio In/Out: 1CH/1CH, RCA
- Built-in PoE: 4CH
- Network: 10/100M, 1 RJ45
- Storage: 1 SATA up to 10TB
- Backup: 1 USB 2.0, 1 USB 3.0
- Dimensions: 10.2"(W)x9.4"(D)x1.9"(H)
- Recorder Case: mini 1U
Model | VSN7104-P4 |
Video/Audio Input | |
IP Video Input | 4-ch |
Two-way Audio Input | 1-ch, RCA |
Network | |
Incoming Bandwidth | 80Mbps |
Outgoing Bandwidth | 64Mbps |
Remote Users | 128 |
Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
Video/Audio Output | |
HDMI/VGA Output | HDMI: 3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
Recording Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
Audio Output | 1-ch, RCA |
Synchronous Playback | 4-ch |
Corridor Mode Screen | 3/4 |
Decoding | |
Decoding format | Ultra 265/H.265/H.264 |
Liveview/Playback | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
Capability | 1 x 4K@30, 1 x 5MP@30, 2 x 4MP@30, 2 x 3MP@30, 4 x 1080P@30 |
Hard Disk | |
SATA | 1 SATA interface |
Capacity | up to 10TB for each disk |
Smart | |
VCA Detection | Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking, Object Left Behind, Object Removed |
VCA Search | Face search, Behavior search |
Statistical Analysis | People counting |
External Interface | |
Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
USB Interface | Rear panel: 1 x USB2.0, 1 x USB3.0 |
PoE | |
Interface | 4 independent 100 Mbps PoE network interfaces |
Max Power | Max 30W for single port Max 54W in total (13.5W for each) |
Supported Standard | IEEE 802.3at, IEEE 802.3af |
General | |
Power Supply | 48V DC; Power Consumption: ≤9 W (without HDD) |
Working Environment | -10℃ ~ + 55℃ (+14℉ ~ +131℉), Humidity ≤ 90% RH (non-condensing) |
Dimensions (W×D×H) | 260mm x 240mm x 47mm (10.2"x9.4"x1.9") |
Weight (without HDD) | 1kg (2.20 lb) |
