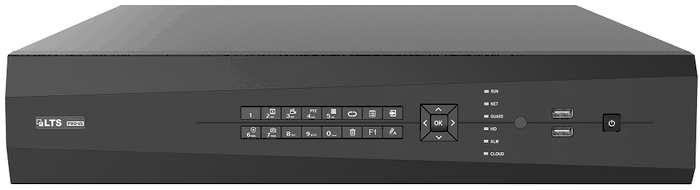

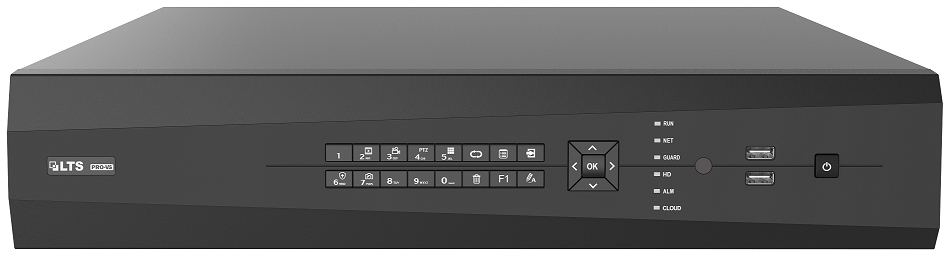

LTS VSN7432-P16 32 Channel NVR with 16 Channel Built-in PoE
LTS VSN7432-P16 32 Channel NVR with 16 Channel Built-in PoE
- Video Input: 32CH IP@160Mbps
- Video Output: HDMI up to 4K(3840 x 2160) / VGA up to 1080P
- Max. Recording Resolution: Up to 8MP(3840x2160)
- Decoding Format: H.265/H.264
- Decoding Capability: 2CH@4K / 8CH@1080P
- Max. Playback Resolution: Up to 8MP(3840x2160)
- Audio In/Out: 1CH/1CH, RCA
- Alarm In/Out: 16CH/4CH
- Built-in PoE: 16CH
- Network: 10/100/1000M, 1 RJ45
- Storage: 4 SATA up to 14TB
- Backup: 1 USB 2.0, 1 USB 3.0
- Dimensions: 15.7"(W)x14.2"(D)x2.9"(H)
- Recorder Case: 1.5U
Model | VSN7432-P16 |
Video/Audio Input | |
IP Video Input | 32-ch |
Two-way Audio Input | 1-ch, RCA |
Network | |
Incoming Bandwidth | 160Mbps |
Outgoing Bandwidth | 64Mbps |
Remote Users | 128 |
Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
Video/Audio Output | |
HDMI/VGA Output | HDMI: 4K (3840x2160@30), 1920x1080@60, 1920x1080@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 VGA: 1920x1080@60, 1920x1080@50, 1280x1024@60, 1280x720@60, 1024x768@60 |
Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
Audio Output | 1-ch, RCA |
Synchronous Playback | 16-ch |
Corridor Mode Screen | 3/4/5/7/9/10/12/16 |
Decoding | |
Decoding format | Ultra265/H.265/H.264 |
Liveview/Playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
Capability | 2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P @30, 16 x 720P@30 |
Hard Disk | |
SATA | 4 SATA interfaces |
Capacity | Up to 14TB for each disk |
External Interface | |
Network Interface | 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface |
USB Interface | Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0 |
Serial Interface | 1 x RS485 |
Alarm In | 16-ch |
Alarm Out | 4-ch |
PoE | |
Interface | 16 independent 100Mbps PoE network interfaces |
Max Power | Max 30W for single port Max 240W in total |
Supported Standard | IEEE 802.3af/at |
General | |
Power Supply | 100 ~ 240 V AC Power Consumption: ≤15W(without HDD) |
Working Environment | -10℃ ~ + 55℃ (+14℉ ~ +131℉), Humidity ≤ 90% RH (non-condensing) |
Dimensions (W×D×H) | 400mm x362mm x 74mm (15.7" x 14.2" x2.9") |
Weight (without HDD) | ≤5kg (5.29lb) |
