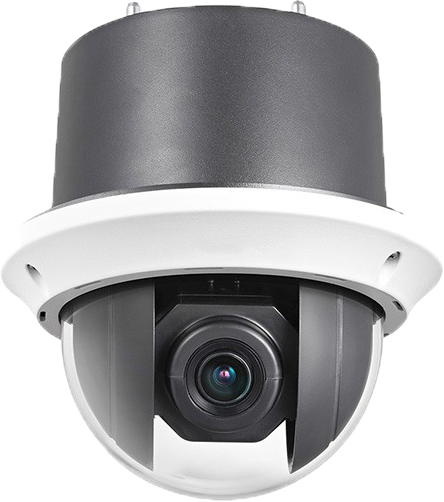

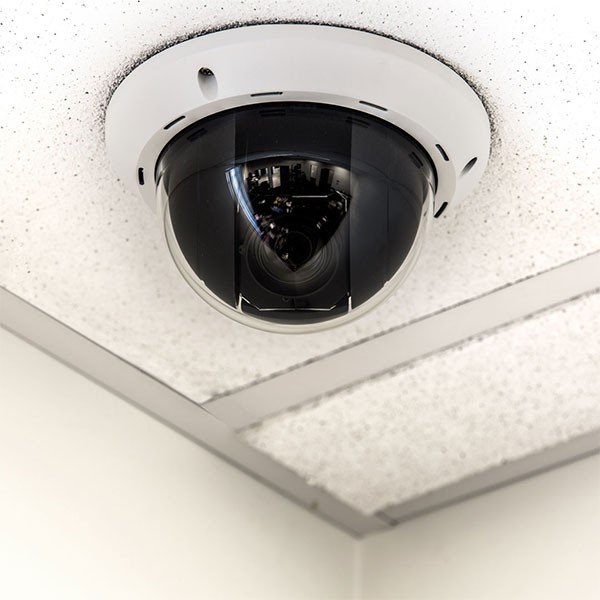

LTS PTZIP212X20N-C Platinum IP PTZ High Speed Dome 1080P - In Ceiling

Additional View

LTS PTZIP212X20N-C Platinum IP PTZ High Speed Dome 1080P - In Ceiling

SKU#

:

PTZIP212X20N-C

Regular Price

:

$599.95

Sale Price

:

$429.95

You Save

$170.00(28.34% )

Availability

:

Usually ships the next business day

Pre-Made Cat5e Cable

:

Quantity

:

LTS PTZIP212X20N-C Platinum IP PTZ High Speed Dome 1080P - In Ceiling

Model	PTZIP212X20N-C
Camera Series	Others
Camera Resolution	2.1MP / 1080P
Camera Technology	IP / Network
Camera Housing	PTZ, Turret
Featured Product	No
Camera
Image Sensor	1/2.8″ Progressive Scan CMOS
Effective Pixel	1920(H) � 1080(V)
Min. Illumination	Color: 0.05Lux @ (F1.6, AGC On), B/W: 0.01Lux @ (F1.6, AGC On)
White Balance	Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC	Auto / Manual
S / N Ratio	≥ 52dB
Digital Noise Reduction	3D DNR
Backlight compensation	BLC
Wide Dynamic Range	Digital WDR
Defog	Support
Shutter Speed	1 ~ 1/10,000s
Day & Night	IR Cut Filter
Digital zoom	16X
Focus Mode	Auto / Semiautomatic / Manual
Privacy Mask	2 privacy masks programmable
Lens
Focal Length	4.7-94mm, 20x
Zoom Speed	Approx 3s(Optical Wide-Tele)
Angle of View	58.3 ~ 3.2 degree (Wide-Tele)
Min. Working Distance	10 ~1000mm (Wide-Tele)
Aperture Range	F1.6 ~ F3.5
Pan and Tilt
Pan / Tilt Range	Pan: 360� endless; Tilt: -2� ~ 90� (Auto Flip )
Pan / Tilt Speed	Pan manual speed: 0.1� ~ 160�/s, Pan preset speed: 160�/s Tilt manual speed: 0.1� ~ 120�/s, Tilt preset speed: 120�/s
Proportional Zoom	Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset	256
Park action	Pattern/Pan scan/Tilt scan/Frame scan/Panorama scan/Random scan
Patrol	8 patrols, up to 32 presets per patrol
Power-off Memory	Support
PTZ position display	On / off
Preset freezing	Support
Local Video and Audio

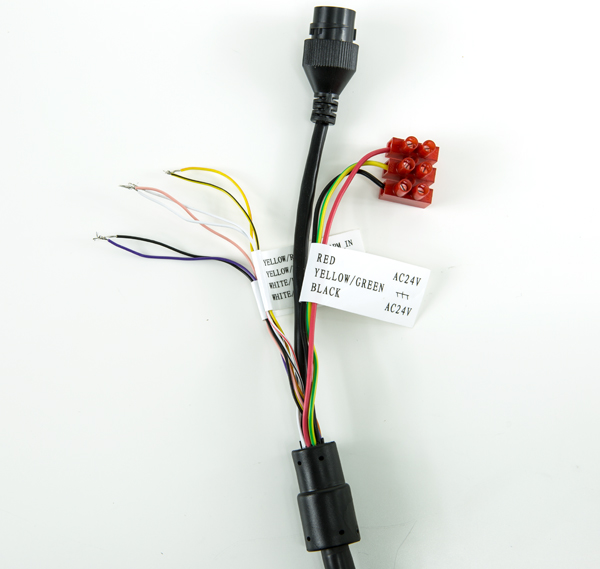

Alarm input / output	1 input 0-5V DC/1 relay output,alarm response actions configurable
Audio input / putput	1 mic/Line in, 2-2.4V[p-p]; output impedance: 1KΩ , �10% / 1 output, Line level, impedance: 600Ω
Network
Ethernet	10Base-T / 100Base-TX, RJ45 connector
Max. Image Resolution	1920�1080
Frame Rate	60Hz: 30 fps (1920�1080), 30 fps (1280�720) 50Hz: 25 fps (1920�1080), 25 fps (1280�720)
Image Compression	H.264/MPEG4
ROI encoding	Support 2 areas with adjustable levels
SVC	Support
Audio Compression	G.711u /G.711a /G.726 /MP2L2
Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Simultaneous Live View	Up to 6
Streams	Dual Streams
SD Memory Card	Built-in micro SD card slot, up to 64GB, support edge recording
User/Host Level	Up to 32 users, 3 Levels: Administrator, Camera control, Live view only
Security Measures	User authentication (ID and PW), Host authentication (MAC address), IP address filtering
Integration
Application programming	Open-ended API, support Onvif, PSIA and CGI
Web Browser	IE 7, IE 8, IE 9, Chrome 8 +, Firefox 3.5 +, Safari 5.02+
General
Working Temperature /Humidity	-14�F ~122�F (-10�C ~ 50�C) 90% or less
Power Supply	24VAC/PoE(802.3af), Max 12W
Impact Protection	IK08
Working Temperature-	30�C to +50�C (-22�F to 122�F)
Dimension	Φ 6.50″ � 6.61″ (Φ 165 � 168mm)
Weight	Approx. 4.41Ibs (2Kg)
