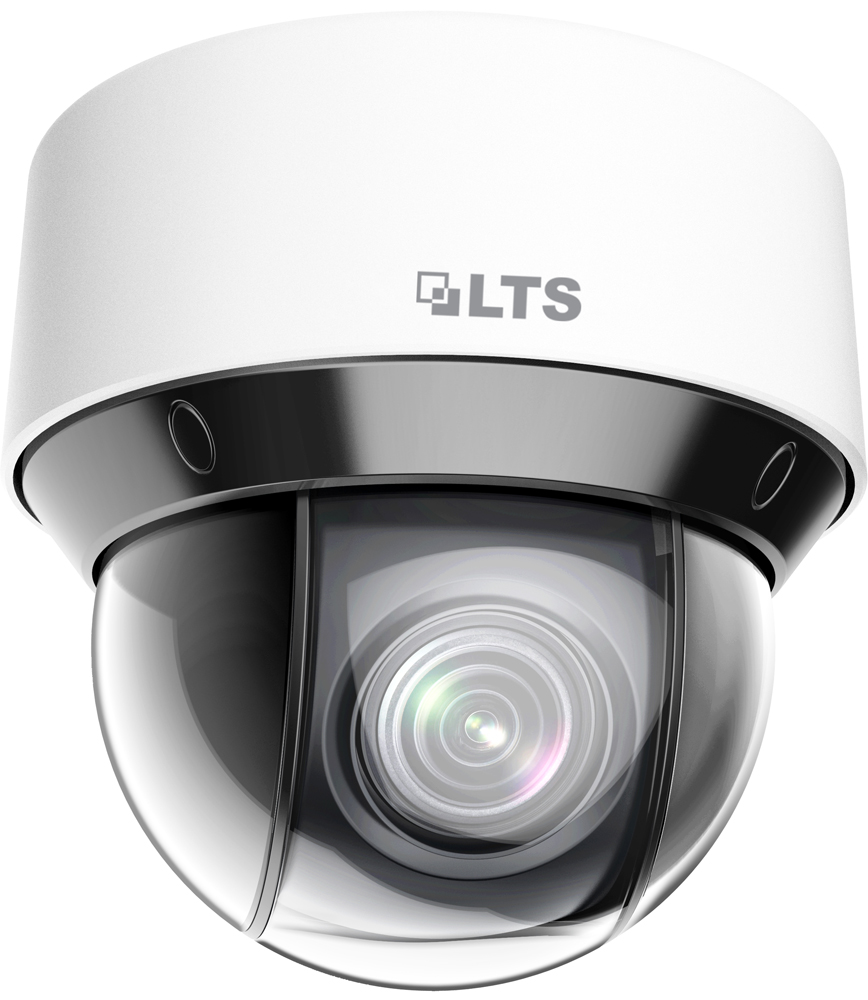

LTS PTZIP412X15WIR Platinum 2MP 15X Network IR PTZ Camera

Model	PTZIP412X15WIR
Camera Series	Platinum Series
Camera Resolution	2.1MP / 1080P
Camera Technology	IP / Network
Camera Housing	PTZ
Featured Product	No
Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Effective Pixel	1920(H) �1080(V)
Min. Illumination	Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
White Balance	Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC	Auto / Manual
WDR	120dB
Digital Noise Reduction	3D DNR
Backlight compensation	BLC
Shutter Speed	1 ~ 1/30,000s
Day & Night	IR Cut Filter
Digital zoom	16X
Focus Mode	Auto / Semiautomatic / Manual
Privacy Mask	24 programmable privacy masks
Lens
Focal Length	5 mm to 75 mm, 15� optical
Zoom Speed	Approx. 2.4 s (optical lens, wide-tele)
Angle of View	Horizontal field of view: 53.8� to 4.0� (wide-tele) Vertical field of view: 31.9� to 2.3� (wide-tele) Diagonal field of view: 60.4� to 4.6�(wide-tele)
Min. Working Distance	10 ~1500mm (Wide-Tele)
Aperture Range	F1.6 ~ F3.5
Pan and Tilt
Pan / Tilt Range	Pan: 360� endless; Tilt: -5� ~ 90� (Auto Flip )
Pan / Tilt Speed	Pan manual speed: 0.1� ~ 300�/s, Pan preset speed: 350�/s Tilt manual speed: 0.1� ~ 160�/s, Tilt preset speed: 200�/s
Proportional Zoom	Support
Number of Preset	300
Patrol Scan	8 patrols, up to 32 presets per patrol
Pattern Scan	4 pattern scans, record time over 10 minutes for each scan
Power-off Memory	Support
Park Action	Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PTZ Position Display	Support
Scheduled Task	Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust
Preset freezing	Support
Local Video and Audio
Network Interface	1 RJ45 10 M/100 M Ethernet Interface; PoE+ (802.3 at, class4)
Audio input / putput	1-ch audio input and 1-ch audio output
Network
Max. Image Resolution	1920�1080
Frame Rate	60Hz: 30fps (1920 � 1080, 1280 � 960, 1280 � 720), 60fps (1920 � 1080, 1280 � 960, 1280 � 720) 50Hz: 25fps (1920 � 1080, 1280 � 960, 1280 � 720), 50fps (1920 � 1080, 1280 � 960, 1280 � 720)
Image Compression	Main Stream: H.265+/H.265/H.264+/H.264
ROI encoding	Main stream, sub-stream, and third stream respectively support two fixed areas.
SVC	Support
Audio Compression	G.711alaw/G.711ulaw/G.722/G.726/MP2L2/PCM
Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Simultaneous Live View	Up to 20
API	Open-ended, support ONVIF, ISAPI, and CGI, support Third-Party Management Platform
SD Memory Card	Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
User/Host Level	Up to 32 users, 3 Levels: Administrator, Camera control, Live view only
Security Measures	User authentication (ID and PW), Host authentication (MAC address), IP address filtering
IR
IR Distance	Up to 164ft(50 m)
IR Intensity	Automatically adjusted, depending on the zoom ratio
General
Working Temperature/Humidity	-22�F ~149�F (-30�C ~ 65�C) 90% or less
Power Supply	12 VDC and PoE+ (802.3 at, class4), Max.: 18 W (IR light 5 W Max.)
Protection Level	IP66 Standard; TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimension	? 6.65" � 6.34"(? 169 mm � 161 mm )
Weight	Approx. 5.40Ibs (2.45Kg)
