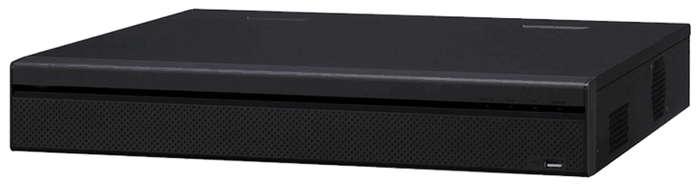

ENS XVR504L-16 16 Channel Penta-brid 1080P Lite 1.5U Digital Video Recorder

Model	XVR504L-16
Max Image Resolution	5MP
System Compression	H.264+/H.264
Main Processor	Embedded Processor
Operating System	Embedded Linux
Video Interface	2 HDMI, 1 VGA, 1 TV
Video Resolution	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Multi-Screen Display	1/4/8/9/16/25
HDCVI Camera Input	16 Channel
IP Camera Input	16 Channel, each channel up to 5MP
OSD	Yes
Audio In	1
Audio Out	1
2 Way Audio	1 mic in, 1 mic out, BNC
Recording Resolution	1080P, 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Recording Frame Rate	Mainstream: 1080P (1~15fps), 1080N/720/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps) Substream: D1/CIF/QCIF/ (1~15fps)
Bit Rate	1Kbps ~ 6144Kbps Per Channel
Recording Mode	Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), alarm, stop
Record Interval	1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Playback Channels	1/4/9/16
Playback Search	Time/Calendar Search, Event (motion)
Playback Function	Play, Pause, FF, FB; Digital zoom
Backup Mode	USB Device/Network
Trigger Events	Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection	Motion Detection, MD Zones: 396 (22 x 18), Video Loss, Tampering and Diagnosis
Alarm In	16
Alarm Relay Output	6
Network Interface	1 RJ-45 Port (1000M)
Network Function	HTTP, TCP/IF, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DONS, FTP, Alarm Server, P2P, Search (Support Dahua IP camera, DVR, NVS, etc.)
Network Max. Users	128
Interoperability	ONVIF 2.42, CGI Conformant
Mobile	iPhone, Android
RS485	1 Port, for PTZ Control
USB	3 USB Ports (1 USB 2.0, 2 USB 3.0)
RS232	1 Port, for PC communication & keyboard
RS422	N/A
Power Supply	AC100V ~ 240V, 50/60Hz
Power Consumption	<30W (Without HDD)
Internal HDD	4 SATA Port, up to 8TB capacity for each disk
e-SATA	1
Operating Conditions	-10�C ~ +55�C (+14�F ~ 131�F), 0~90% RH
Storage Conditions	-20�C ~ +70�C (-4�F ~ 158�F), 0~90% RH
Dimensions	1.5U, 440mm x 417mm x 76mm (17.3" x 16.4" x 3.0")
Weight	Net weight 6kg (13.23lb) (without HDD); Gross weight 7kg (15.43lb)

free shipping

orders $500 and up

Search Product

Products

customer services

By Manufacturer

By Price

Surveillance Mega-Store Ultimate Destination for All CCTV Needs

Lifetime technical support.

ENS XVR504L-16 16 Channel Penta-brid 1080P Lite 1.5U Digital Video Recorder

SKU#

:

XVR504L-16

Regular Price

:

$599.95

Sale Price

:

$499.95

You Save

$100.00(16.67% )

Availability

:

Usually ships the next business day

Hard Drive

:

Warranty

:

Hi-Res Security Monitor

:

Quantity

:
