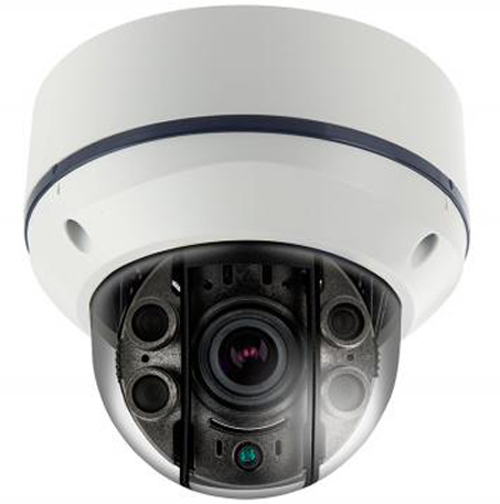

Eyemax XVI-2544V Anti-IR Reflection Series HD-SDI 1080p IP68 STORM IR Dome Camera
Eyemax XVI-2544V Anti-IR Reflection Series HD-SDI 1080p IP68 STORM IR Dome Camera
- HD-SDI - The next generation HD security. 1080p FULL HD flawless video
- Anti-IR Reflection Series : (The Shield) : prevents washed out video caused by IR reflection from obstacles(water or oil) on cover (U.S. Patent Pending)
- 4 High Powered IR LED : Up to 50% more brighter than conventional IR LED
- STORMŽ IP-68 Water & Vandal-proof (US Patent: 7963707 / WO2010114190 8337100)
- Easy Twist and Lock Installation : No drilling thru camera required (Drill hole guide included)
- 4-Axis Construction : By adjusting '4-Axis' control, you get a straight view regardless whether the camera is installed on a wall or ceiling
- Dual Video Output (HD-SDI / CVBS)
- 1/2.9 inch Sony CMOS : Low Power Consumption
- Minimum Illumination - 0 Lux with IR on
- 2.8~12mm Auto-Iris IR Corrected Lens Installed - provides the best focused image both color & IR mode
- Auto Removable IR-Cut Filter (ICR) : True Day & Night. Deep color and clear video at both day and night time
- OSD (On Screen Display) - Easy camera setup
- DNR (Digital Noise Reduction)
- D-WDR (Digital Wide Dynamic Range)
- HLM (High Light Masking)
- MDIR (Motion Detection IR) and more advanced image enhancing features
- DC 12V / AC 24V
Model | XVI-2544V |
Patent | China: 201430447051.X, 201430489022.X, 201430488715.7, 2014305487734 US: 7963707 / WO2010114190 8337100 |
Resolution | HD-SDI (1080p, 720p) / over 1000 TV Line |
Sensor | 1/2.9 inch Sony CMOS |
Total Pixels | 2000(H) × 1241(V) = 2,482,000 |
Effective Pixels | 1944(H) × 1092(V) = 2,122,648 |
Scanning System | Progressive |
S/N (Y Signal) | More then 52 dB (AGC Off) |
Video Output | SMPTE292M (HD-SDI) CVBS: 1.0Vp-p (75Ohm) |
Min. Illumination | 0 Lux at IR On |
White Balance | Auto / Auto Ext / Preset / Manual |
Shutter | Auto / Manual (1/30sec ~ 1/60,000sec) |
Brightness | Adjustable (0~20 Step) |
Sens Up | Off / ×2~8 |
DNR | Off / Low / Middle / High |
WDR / BLC | Off / WDR / BLC |
HLM | Off / Set |
ACE | Off / Low / Middle / High |
Day & Night | Auto ( Day <--> Night time change) Color , B/W, Extern, MDIR |
Privacy | Off / On (16 Zone) |
Motion | Off / Set |
Digital Zoom | up to ×127 |
Flip | Off / On |
Freeze | Off / On |
Language | English |
Sharpness | Adjustable (0~10 Step) |
Defog | Off / Set |
Communication Port | RS-485 ( PELCO-D ) |
Smart IR | Adjustable (0~20 Step) |
Operating Temp / Humidity | -10°C ~ +50°C(14°F ~ 122°F) / 30%~80% RH |
Storage Temp / Humidity | -20°C ~ +60°C(-4°F ~ 140°F) / 20%~90% RH |
Power | DC 12V/AC 24V |
Case | Anti-IR Relection IP68 STORMŽ Case |
Dimensions | 5.79(Ř) x5.38(H) / 147mm(Ř) x 136.74mm(H) |
