Home EX-SDI and HD-SDI Digital Video Recorders and Cameras Eyemax XSQ-202P 1080p Miniature Pinhole Camera with 1/3 SONY CMOS HD-SDI Camera

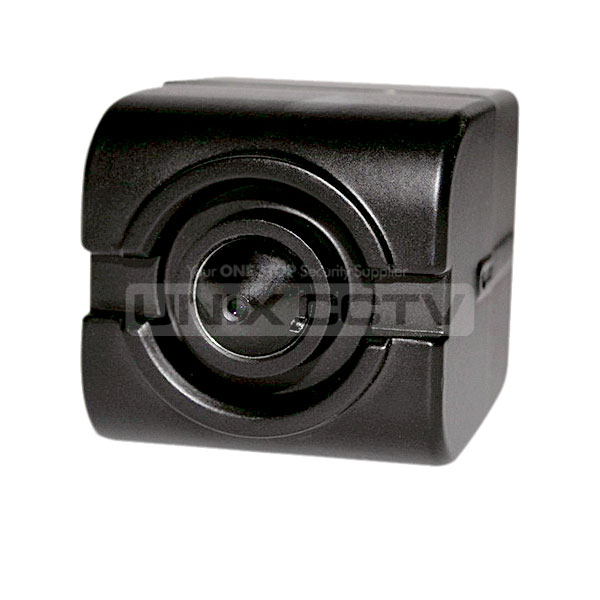

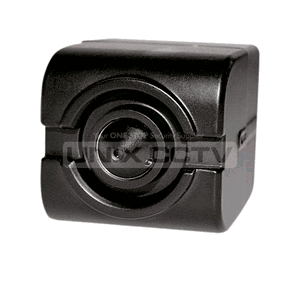

Eyemax XSQ-202P 1080p Miniature Pinhole Camera with 1/3 SONY CMOS HD-SDI Camera
FEATURES
- 1/3" SONY CMOS / High Definition Serial digital Interface
- HD-SDI (1080P, 720P) / High Resolution (1000 TV Line OVER)
- 1 Lux at F1.2 / 0.1 Lux (B/W) / DNR (Digital Noise Reduction) / Day & Night
- 3.7 mm Fixed lens, 4.3 mmP inhole
Model | XSQ 202P | |
Resolution | HD-SDI(1080p, 720p) | |
Sensor | 1/3" Sony CMOS | |
Total Pixels | 2010(H) × 1108(V) = 2.2M Pixel | |
Effective Pixels | 1944(H) × 1092(V) = 2.1M Pixel | |
Scanning System | Progressive | |
S/N (Y signal) | More than 52 dB (AGC Off) | |
Video Output | SMPTE292M (HD-SDI) | |
Min.Illumination | 1 Lux at F1.2 | |
White Balance | Auto | |
Electronic Shutter Speed | Auto (1/30sec ~ 1/60,000sec) | |
Brightness | Adjustable (0 ~ 20 Step) | |
Sens up | Off | |
WDR/BLC | Off | |
HLM | Off | |
ACE | Off | |
DNR | Middle | |
Day & Night | Auto | |
Privacy | Off | |
Motion Detection | Off | |
D.ZOOM | Off | |
FLIP | Off | |
Privacy | Off | |
Motion Detection | Off | |
D.ZOOM | Off | |
FLIP | Off | |
FREEZE | Off | |
Sharpness | Off | |
Image Conversion | Off | |
Language | English | |
Operating Temperature / Humidity | 14°F~122°F (-10°C~+50°C) / 30%~80% RH | |
Storage Temperature / Humidity | -4°F~+140°F (-20°C~+60°C) / 20%~90% RH | |
Power | DC 12V Only | |
Signal Transmission | The distant difference is occurred according to cable option and other circumstances. (based on RG59: 100M) |
