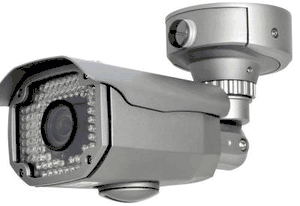

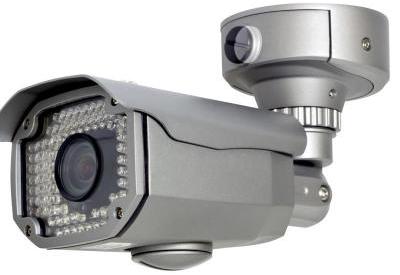

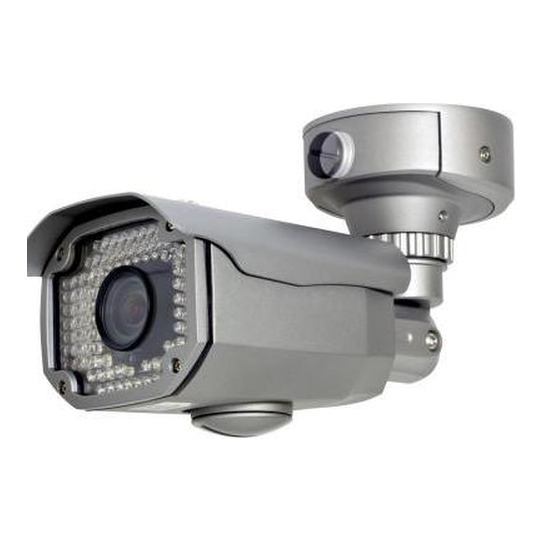

Eyemax XIR-2284FV 1080p Long Range Outdoor IR Bullet with ICR and Dual Power HD-SDI Camera
Eyemax XIR-2284FV 1080p Long Range Outdoor IR Bullet with ICR and Dual Power HD-SDI Camera
- 1/3" Sony CMOS
- HD-SDI (1080p, 720p) / high resolution (1000 TV line over)
- HD-SDI (High Definition Serial Digital Interface) / 0 lux at IR On (IR LED 80pcs)
- Upgraded waterproof housing (IP67 rating) / OSD Controlled
- True Day & Night(ICR) / DNR (Digital Noise Reduction)
- Motion / Privacy / Easy Installation
- 2.8~12mm DC auto IRIS vari-focal lens (external angle & focus control)
- DC 12V / AC 24V : DUAL POWER
Model | XIR-2284FV |
Resolution | HD-SDI(1080p, 720p) / 1000 TV line over |
Sensor | 1/3" Sony CMOS |
Total Pixels | 2010(H) ? 1108(V) = 2.2M Pixel |
Effective Pixels | 1944(H) ? 1092(V) = 2.1M Pixel |
Scanning System | Progressive |
S/N (Y signal) | More than 52 dB (AGC Off) |
Video Output | SMPTE292M (HD-SDI) |
Min.Illumination | 0 lux at IR On |
White Balance | Auto / Auto EXT / Pushing / Manual |
Electronic Shutter Speed | Auto / Manual (1/30sec ~ 1/30,000sec) |
Brightness | Adjustable (0 ~ 20 Step) |
SENS_UP | Off / ?2 / ?3 / ?4 |
DNR | Off / Low / Middle / Hi |
WDR / BLC | Off / Single scan WDR / BLC |
HLM | Off / Set |
ACE | Off / On |
Day & Night | Auto (Day <--> Night time change) , Color , B/W |
Privacy | Off / On (28 Zone) |
Motion Detection | Off / On |
D.ZOOM | 0 ~ ?112 |
FLIP | Off / On |
FREEZE | Off / On |
Language | English |
Sharpness | Adjustable (0 ~ 10 Step) |
Mirror | On / Off |
COMM. | RS-485(PELCO-D) |
Operating Temperature / Humidity | 14?F~122?F (-10?C~+50?C) / 30%~80% RH |
Storage Temperature / Humidity | -4?F~+140?F (-20?C~+60?C) / 20%~90% RH |
Power | DC 12V / AC 24V |
Distance | 300 ~ 450ft (100 ~ 150m) |
Transmission range | Max transmission range is depends on the cable manufacturer and the installation environment. |
