Home New Arrivals LTS VSPOE-SW1602 16 Port PoE Switch with 2 Combo Ports

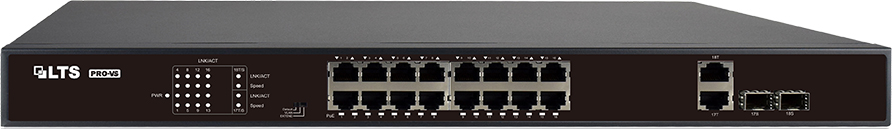

LTS VSPOE-SW1602 16 Port PoE Switch with 2 Combo Ports
LTS VSPOE-SW1602 16 Port PoE Switch with 2 Combo Ports
- Megabit
- UL Listed
- Up to 820ft
- 16×100Mbps PoE ports (RJ45)+2×1000Mbps Combo port
- AC: 100-240V, 50/60Hz
- PoE: 802.3at/af
- Max capacity: 250W Max capacity for single port: 30W
Model | VSPOE-SW1602 |
Ports | 16×100Mbps PoE ports (RJ45)+2×1000Mbps Combo ports |
Standards | IEEE802.3,IEEE802.3u,IEEE802.3z,IEEE802.3ab,IEEE802.3x,IEEE802.3af,IEEE802.3at,IEEE802.3az |
Switching Capacity | 7.2Gbps |
Forwarding Performance | 5.36Mpps |
Packet Buffer | 4M bit |
MAC | 16K |
Dimensions (W×D×H) | 440mm x 207mm x 45mm(17.3"×8.1"×1.8") |
Weight | <4.2kg |
Power supply | AC: 100-240V, 50/60Hz |
PoE | 802.3at/af |
Max. PoE Power | Max capacity: 250W Max capacity for single port: 30W |
Cooling Fans | 2 |
Mean Time Between Failure (MTBF) | >50000 hours |
Operating temperature | 0°C-40°C (32°F-104°F) |
Operating humidity | 10%~90% (noncondensing) |
Storage humidity | 5%~90% (noncondensing) |
Indicator | |
PWR | Steady on: AC input is normal Off: No AC input |
PoE | Off: No PoE power supply Steady on: PoE power supply is normal Flashing: PoE power supply is abnormal |
LINK/ACT | Off: No link Steady: Linked at 10/100Mbps Flashing: Transmitting data |
Speed | Off: Linked at 10/100Mbps On: Linked at 1000Mbps |
Working Mode | |
Working Mode | Default(Normal mode) : All ports can communicate with each other. VLAN(Secure mode): Downlink ports can communicate only with uplink ports. EXTEND(Surveillance mode): Transmission distance up to 820ft(250 meters). |
