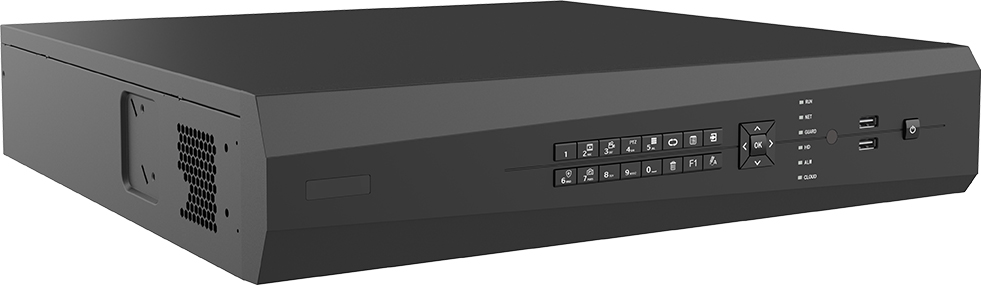

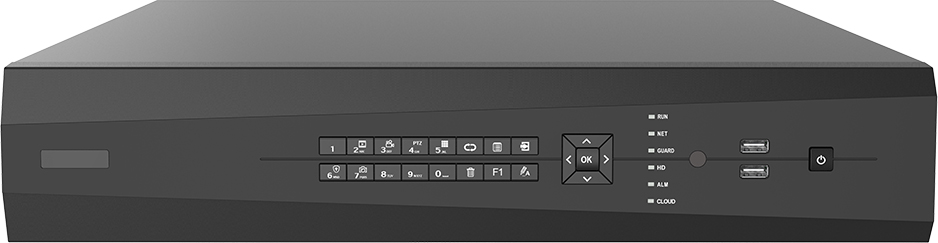

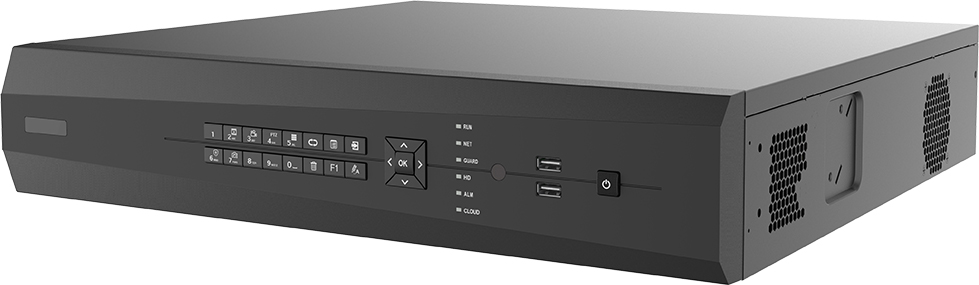

LTS VSN8864-R Pro-VS 64CH 4K Network Video Recorder
LTS VSN8864-R Pro-VS 64CH 4K Network Video Recorder
- Ultra H.265/H.265/H.264
- 64-channel input
- Support 2-ch HDMI, 1-ch VGA. HDMI1 and HDMI2 up to 4K (3840x2160) resolution
- HDMI1, HDMI2, VGA independent outputs provided
- Up to 12 Megapixels resolution recording
- Support RAID 0, 1, 5, 6, 10
- 8 SATA HDDs, Up to 10TB for each HDD
- Various fisheye dewarping modes for live view and playback for both web interface and GUI
- Support N+1 Hot spare
- Support for 12V Power output
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
Model | VSN8864-R |
Recorder Series | Pro-VS |
Recorder Channel | 64-Channel |
Recorder Case | 2U Case |
Recorder Technology | IP / NVR |
Video/Audio Input | |
IP Video Input | 64-ch |
Two-way Audio Input | 1-ch, RCA |
Network | |
Incoming Bandwidth | 384Mbps |
Outgoing Bandwidth | 384Mbps |
Remote Users | 128 |
Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
Video/Audio Output | |
HDMI/VGA Output | VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI1/HDMI2(HDMI audio output is not supported): 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
Audio Output | 1-ch, RCA |
Synchronous Playback | 16-ch |
Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
Decoding | |
Decoding format | Ultra 265, H.265, H.264 |
Live view/Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
Capability | 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1 |
Hard Disk | |
SATA | 8 SATA interfaces |
Capacity | up to 10TB for each HDD |
eSATA | 1 eSATA interface |
Disk Array | |
Array Type | RAID 0, 1, 5, 6, 10 |
Smart | |
VCA Detection | Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking, Object left behind, Object removed |
VCA Search | Face search, Behavior search |
Statistical Analysis | People counting |
External Interface | |
Network Interface | 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces |
Serial Interface | 1 x RS232, 1 x RS485 |
USB Interface | Front panel: 2 x USB2.0,Rear panel: 1 x USB3.0 |
Alarm In | 16-ch |
Alarm Out | 4-ch |
General | |
Power Supply | 100~240V AC Power Consumption: ≤ 25 W (without HDD) |
Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) |
Dimensions (WxDxH) | 442mm x426mmx 89mm (17.4" x 16.8"x 3.5") |
Weight (without HDD) | ≤5.7Kg (12.57lb) |
