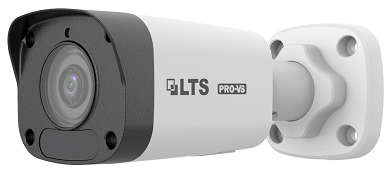

LTS VSIP8442W-28MA 4MP SD Card Mini Fixed Bullet Network Camera

SKU#

:

VSIP8442W-28MA

Regular Price

:

$199.95

Sale Price

:

$119.95

You Save

$80.00(40.01% )

Availability

:

Usually ships the next business day

Power Supply

:

Pre-Made Cat5e Cable

:

Quantity

:

LTS VSIP8442W-28MA 4MP SD Card Mini Fixed Bullet Network Camera

Model

VSIP8442W-28MA

Camera

Sensor

1/3", 4.0 megapixel, progressive scan, CMOS

Lens

2.8mm@F2.0

DORI Distance

Lens	2.8mm	4.0mm
Detect(m)	63.0	90.0
Observe(m)	25.2	36.0
Recognize(m)	12.6	18.0
Identify(m)	6.3	9.0

Angle of View (H)

107.8°

Angle of View (V)

57.0°

Angle of View (O)

140.1°

Adjustment angle

Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°

Shutter

Auto/Manual, 1 ~ 1/100000s

Minimum Illumination

Colour:0.01Lux (F2.0, AGC ON)
0Lux with IR on

Digital noise reduction

2D/3D DNR

Day/Night

IR-cut filter with auto switch (ICR)

S/N

>56dB

IR Range

Up to 30m (98 ft) IR range

Wavelength

850nm

IR On/Off Control

Auto/Manual

Defog

Digital Defog

WDR

120dB

Video

Video Compression

Ultra 265, H.265, H.264, MJPEG

H.264 code profile

Baseline profile, Main Profile

Frame Rate

"Main Stream: 4MP (2592*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps;1080P(1920*1080),Max30fps
Sub Stream: 4CIF (704*576), Max 30fps;
Third Stream: CIF (352*288), Max 30fps"

Video Bit Rate

128 Kbps~16 Mbps

OSD

Up to 4 OSDs

Privacy Mask

Up to 4 areas

ROI

Up to 2 areas

Motion Detection

Up to 4 areas


White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital noise reduction

2D/3D DNR

Smart IR

Support

Flip

Normal/Vertical/Horizontal/180�

HLC

Supported

BLC

Supported

Audio

Audio Compression

G.711

Suppression

Supported

Sampling Rate

8KHZ

Storage

Edge Storage

Micro SD, up to 256GB

Network Storage

ANR

Smart

Behavior Detection

Human Body Detection

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL

Compatible Integration

ONVIF (Profile S, Profile G, Profile T), API

Web Browser

Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Interface

Network

1 RJ45 10M/100M Base-TX Ethernet

Built-in Mic

Supported

Certifications

Certifications

CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15

General

Power

DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 6.4W

Dimensions (L x W x H)

165 x 63.1 x 62.5mm (6.5" x 2.5" x 2.5")

Net Weight

0.45kg (0.99lb)

Material

Sun shield: plastic; Front cover: metal; Body: metal; Bracket: metal; Bottom plate: metal

Working Environment

-30℃ ~ 60℃ (-22℉ ~ 140℉), Humidity: ≤95% RH (non-condensing)

Strorage Environment

-30℃ ~ 60℃ (-22℉ ~ 140℉), Humidity: ≤95% RH (non-condensing)

Surge Protection

2KV

Ingress Protection

IP67
