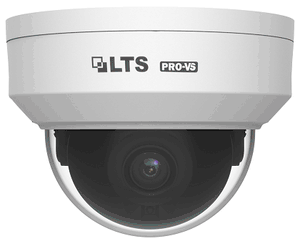

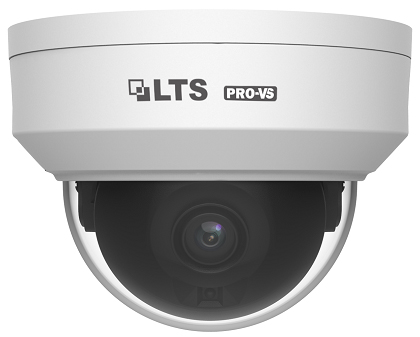

LTS VSIP7442W-28S 4MP WDR Network IR Fixed Dome Camera

SKU#

:

VSIP7442W-28S

Regular Price

:

$199.95

Sale Price

:

$119.95

You Save

$80.00(40.01% )

Availability

:

Usually ships the next business day

Power Supply

:

Pre-Made Cat5e Cable

:

Quantity

:

LTS VSIP7442W-28S 4MP WDR Network IR Fixed Dome Camera

Model

VSIP7442W-28S

Camera

Sensor

1/3", 4.0 megapixel, progressive scan, CMOS

Lens

2.8mm@F2.0

DORI Distance

Lens	2.8mm	4.0mm
Detect(m)	63.0	90.0
Observe(m)	25.2	36.0
Recognize(m)	12.6	18.0
Identify(m)	6.3	9.0

Angle of View (H)

95.8°

Angle of View (V)

55.2°

Angle of View (O)

124.5°

Adjustment angle

Pan: 3° ~ 360°, Tilt: 0° ~ 68°, Rotate: 3° ~ 360°

Shutter

Auto/Manual, 1 ~ 1/100000s

Minimum Illumination

Colour: 0.01Lux (F2.0, AGC ON)
0Lux with IR

Day/Night

IR-cut filter with auto switch (ICR)

Digital noise reduction

2D/3D DNR

S/N

>56dB

IR Range

Up to 30m (98ft) IR range

Wavelength

850nm

IR On/Off Control

Auto/Manual

Defog

Digital Defog

WDR

120dB

Video

Video Compression

Ultra 265, H.265, H.264, MJPEG

H.264 code profile

Baseline profile, Main Profile

Frame Rate

"Main Stream: 4MP (2592*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps;1080P(1920*1080),Max30fps
Sub Stream: 4CIF (704*576), Max 30fps;
Third Stream: CIF (352*288), Max 30fps"

Video Bit Rate

128 Kbps~16 Mbps

OSD

Up to 4 OSDs

Privacy Mask

Up to 4 areas

ROI

Up to 2 areas

Motion Detection

Up to 4 areas


White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital noise reduction

2D/3D DNR

Smart IR

Support

Flip

Normal/Vertical/Horizontal/180°

HLC

Supported

BLC

Supported

Audio

Audio Compression

G.711

Two-way audio

Supported

Suppression

Supported

Sampling Rate

8KHZ

Storage

Edge Storage

Micro SD, up to 256GB

Network Storage

ANR

Smart

Behavior Detection

Human Body Detection

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL

Compatible Integration

ONVIF (Profile S, Profile G, Profile T), API

Web Browser

Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Interface

Audio I/O

Input: impedance 35kΩ; amplitude 2V [p-p]
Output: impedance 600Ω; amplitude 2V [p-p]

Alarm I/O

1/1

Network

1 RJ45 10M/100M Base-TX Ethernet

Certifications

Certifications

CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15

General

Power

DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 5.5W

Dimensions (Ø x H)

Φ108.7 x 81.1mm (Ø 4.3" x 3.2")

Net Weight

0.45kg (0.99lb)

Material

Shield: PC; Body: plastic; Bottom plate: metal

Working Environment

-35℃ ~ 60℃ (-31℉ ~ 140℉), Humidity: ≤95% RH (non-condensing)

Strorage Environment

-35℃ ~ 60℃ (-31℉ ~ 140℉), Humidity: ≤95% RH (non-condensing)

Surge Protection

2KV

Ingress Protection

IP67

Vandal Resistant

IK10
