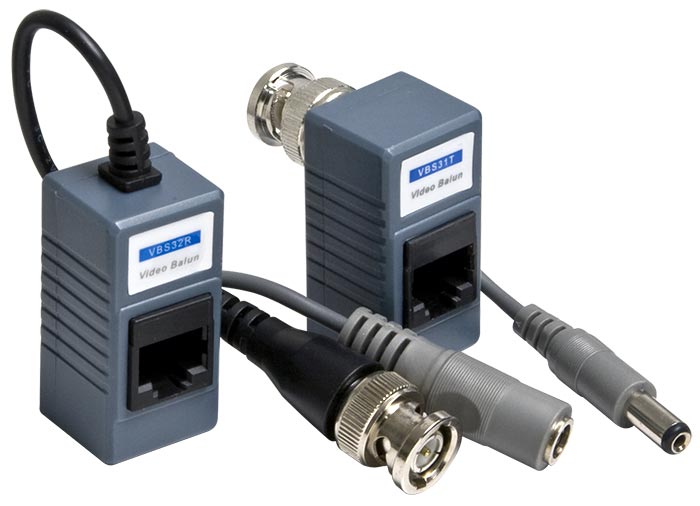

Passive Video/Power Balun - One Pair
Send power and video via Cat5 cable up to 500ft
SPECIFICATIONS
| VBC5P | |
| Spec | 1CH Passiv Power/Video/DATE PVD Video Transceiver |
| Video | Frequency respons: DC-6Mhz Common-mode/Differential-mode Rejection: 15khz-6Mhz 60dB typ 60dB typ |
| Audio/data | No |
| Power | Yes |
| Impedance | Coax,male BNC:75Ω UTP(Screw-less)Terminal Block or UTP RJ45 Data Connector:100Ω |
| Wire type | One Unshielded Twisted Pair 24-16AWG(0.5-1.31mm) Per video signal:DC Loop Resistance 52Ω per 1,000 ft(18Ω per 100m) |
| UTP Port | RJ45 |
| Dimensions | 40mm x 20 x 2.1mm |
| Weight | 35g |
| Environment | Temperature:-10°C~+50°C Humidity:0~95% |
