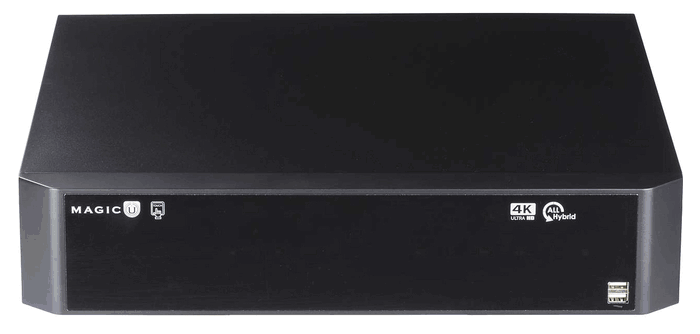

Eyemax UVST-MAGIC-4K16 Magic U 4K Series | 16CH Octa-brid DVR System, All-channel 4K Recording, 8 HDD slots, eSATA, 16CH Audio

Additional View

Eyemax UVST-MAGIC-4K16 Magic U 4K Series | 16CH Octa-brid DVR System, All-channel 4K Recording, 8 HDD slots, eSATA, 16CH Audio

Model	UVST-MAGIC-4K16
Video
Camera input	16 BNC
Individual HD/Analog selectable	Analog, HD-SDI, EX-SDI, TVI, AHD, CVI, IP
Available source	Upto 8MP IPC EX-SDI 720p25,30/1080p25,30/4MP 25,30/8MP 25,30 TVI/AHD/CVI 720p25,30/1080p25,30/3MP 18/4MP@12 ~ 30 HD-SDI 720p25,30/1080p25,30 /Composite/960H/Mixed
IP Camera Spec	ONVIF 2.3, RTSP, H.264, dual stream use gigabit ethnet hub
IP Camera Num	8

IP Camera Restriction	Cannot setup Private ZONE Cannot support Timestamp
Output	2 HDMI (Main Display or Programmable HD Spot) 1 VGA (Main Display or Programmable HD Spot) 1 Composite (Programmable SPOT)
Audio
Audio input	16 RCA
Output	1 RCA
Sensor In	16 (NC, NO selectable)
Alarm out	2 Relay, 14 TTL
Operating System	Embedded Linux OS
Display
Speed	Real Time
Resolution (Pixel)	1280 � 1024, 1280 � 720, 1920 � 1080, UHD
Split screen	1,4,6,8,9,13,16
Main Recording
CODEC	H.264
Resolution (Pixel), Video IN : Possible Recording	8MP : 8MP, 1080p 4MP : 4MP, 720p 3MP : 3MP, 720p 1080p : 1080p, 720p 720p : 720p, 960 � 540 960H, Composite : 960H, D1"
Picture quality	4 steps (Super, High, Medium, Low)
Speed	240fps @ 8MP
Dual Recording
CODEC	H.264
Resolution (Pixel)	640 � 360
Playback
Display	1,4,6,8,9,13,16
Search mode	Calendar, Event ,POS , Panorama, Thumbnail
Speed	480 fps
Fast/Slow speed	Normal, REW & FF [recorded speed � 2, � 4, � 8, � 16,x32,x64,x1/2,x1/4], Frame to frame, Pause
Network (Individual setting of resolution, frame rates and picture quality)
Network Interface	Gigabit Ethernet
High Resolution (Pixel) Video IN : Possible Recording	8MP : 1080p, 720p 4MP : 1080p, 720p 3MP : 1080p, 720p 1080p : 1080p, 720p 720p : 720p, 960 � 540 960H, Composite : 960H, D1"
Low Resolution (Pixel) Video IN : Possible Recording	8MP : 480 � 256 4MP : 480 � 256 3MP : 480 � 256 1080p : 480 � 256 720p : 480 � 256 960H, Composite : CIF"
Speed	140fps @ 1080p
Protocol	TCP/IP, HTTP, DHCP
Application	Windows 7 / 8 (PC Client system& IE)/MAC
Web Browser	Internet Explorer, Safari, Chrome, Firefox
Smart phone App	Android, iPhone for live and search
Backup
Interface	USB 2.0 � 3
Backup device	External HDD and CD/DVD-RW, Network, Thumb Drive
The number of HDD	8 SATA + 1 eSATA(upto 8 bays, No capacity limit ; 8TB or more)
Others
Power Consumption	150W
Operating Temperature	41�F ~ 104�F(5�C ~ 104�C)
Relative Humidity	Maximum 80% non-condensing
Dimension	17(W) � 16.6(D) � 3.47(H)in
