Home EX-SDI and HD-SDI Digital Video Recorders and Cameras EX-SDI and HD-SDI Digital Video Recorders 4, 8, 16, 32 Channel Eyemax UVST-KS4416 KS Series – 16CH Octa-brid DVR System

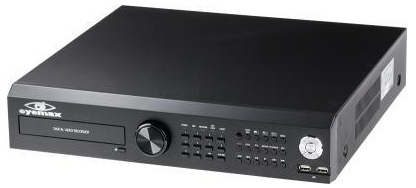

Eyemax UVST-KS4416 KS Series – 16CH Octa-brid DVR System, Supports EX-SDI • HD-SDI • IP Camera • TVI • CVI • A-HD • 960H • Analog
Supports EX-SDI • HD-SDI • IP Camera • TVI • CVI • A-HD • 960H • Analog • Real-time Display & Recording • iPhone Android App Available (T DVR VIEWER) • POS Interface ready • Free DDNS Support • 4 SATA ( up to 24TB; 6TB EA. ) • 1 eSATA
- Customizable logo displays on the screen
- Setup Wizard (Easy to setup)
- ANS(auto Network Setting)
- POS/ATM
- Network Dual Streamming
- Keyboard Controller Support
Model | UVST-KS4416 | |
Type | EX-SDI Hybrid Standalone DVR | |
Codec | H.264 (Main Profile) | |
Recording Performance | 1080p30 × 30 FPS × 16 CH = 480 FPS | |
Playback Performance | 1920×1080 × 30 FPS × 16 CH = 480 FPS | |
Hardware | ||
Video Input Format | EX-SDI 2.0 / HD-SDI / Analog HDs / 960H / SD | |
Video Input | 16CH | |
Video Output | 1 HDMI (Max. 1920 × 1080P), 1 VGA, 1 Composite | |
Audio Input | 4 Inputs (RCA) | |
Audio Output | 1 Output (RCA) | |
Audio Codec | ADPCM | |
Ethernet | 1 Port (10 / 100 Mbps / 1 Gbps Ethernet (RJ-45)) | |
PTZ port | 1 Port (RS-485/422 Terminal Block) | |
Keyboard controller port | 1 Port (RS-485/422 Terminal Block) | |
POS/ATM | 4 Port ( usb to serial) | |
Alarm Input / Output | 4 (NC/NO) / 1 (Relay) | |
USB Port | 4 Ports (2 × Front Panel, 2 × Rear Panel) | |
Storage | Up to 3+1(DVD/RW) / eSATA | |
ODD | 1 CD/DVD RW(Optional) | |
Software | ||
Wizard Support | Wizard for Easy Setup | |
ANS support | Auto Network Setup Support | |
Recording Scheduling | Fully Programmable (by Weekday / by Hour / by Camera / by Continous+ Event + PreEvent) | |
Network | Dual Stream ( User Selectable ) | |
Recording Quality Level | Best / High / Moderate / Economic | |
Scheduling Mode | Continuous / Alarm / Motion / Panic ( Fully Programmable) | |
Pre-Event | Up to 30 Minites | |
Motion Detection | Region Selection (Mouse dragging support) | |
Playback Speed | ×1, ×2, ×4, ×8, ×16, ×32, ×64, ×128 | |
Backup Format | EXE(Self Executable Format), JPEG | |
Backup Devices | CD/DVD-RW/USB | |
GUI | User Friendly Interface | |
Time Zone | Yes | |
NTP | Yes | |
DDNS | Bulit-in ddns / dyndns / no-ip / zoneedit / freedns | |
Day Light Saving | Yes | |
Panic Recording | Yes | |
Multi Language | 33 languages | |
CMS | Full Featured Enterprise Edition for Windows / Mac / Linux | |
Mobile Viewer | iPhone / Android / iPad | |
Operating System | Embedded Linux | |
Dimension(WxHxD) | 440 mm x 88 mm x 410.4 mm / 17.32 inch x 3.46 inch x 16.15 inch | |
Operating Temperature & Humidity | 5°C~40°C / 41°F~104°F, 0% ~ 90% | |
Power | Adaptor |
