Home EX-SDI and HD-SDI Digital Video Recorders and Cameras EX-SDI and HD-SDI Dome Cameras Eyemax UVI-2544DV-W2812 Anti-IR Reflection | 2MP EX-SDI STORMŽ IR IP68 andal-Resistant Dome Camera with Vari-Focal Lens, True WDR, L-size, AC 24V/DC 12V Duel Power

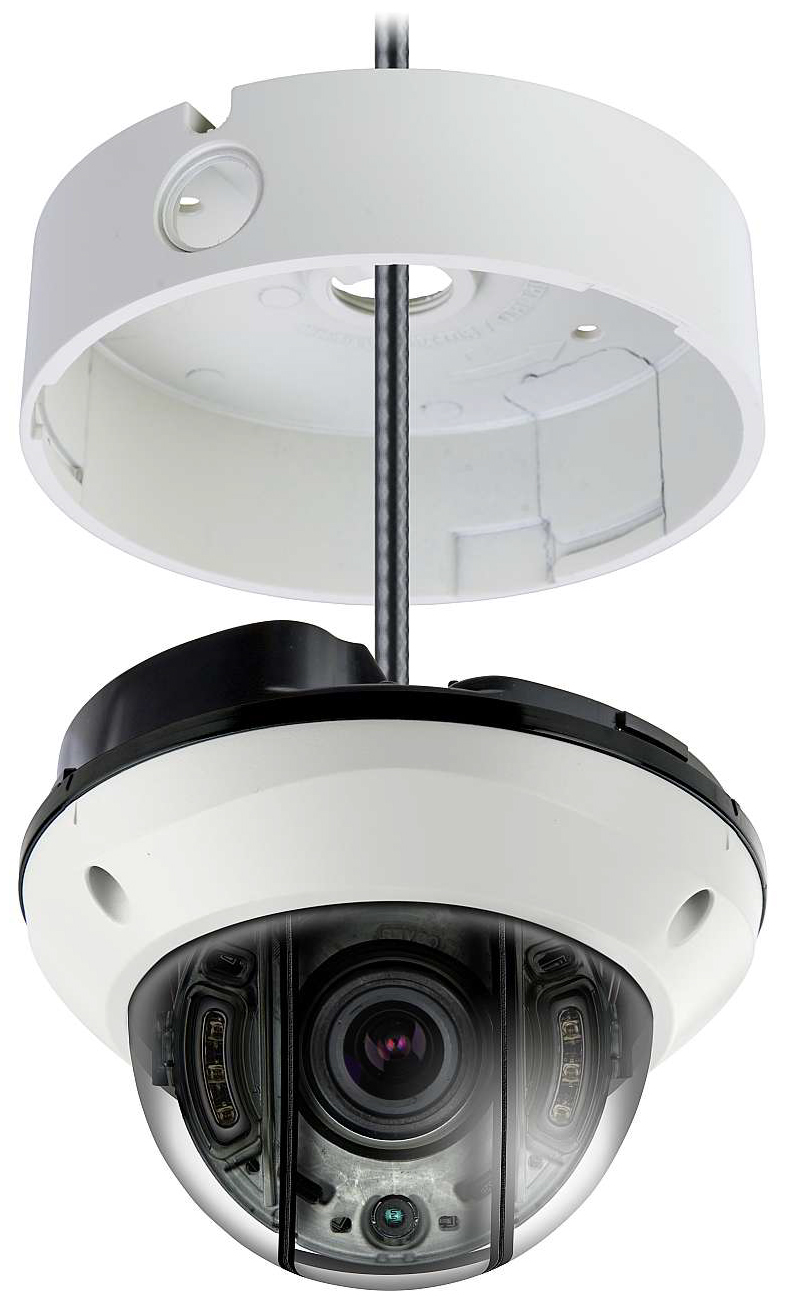

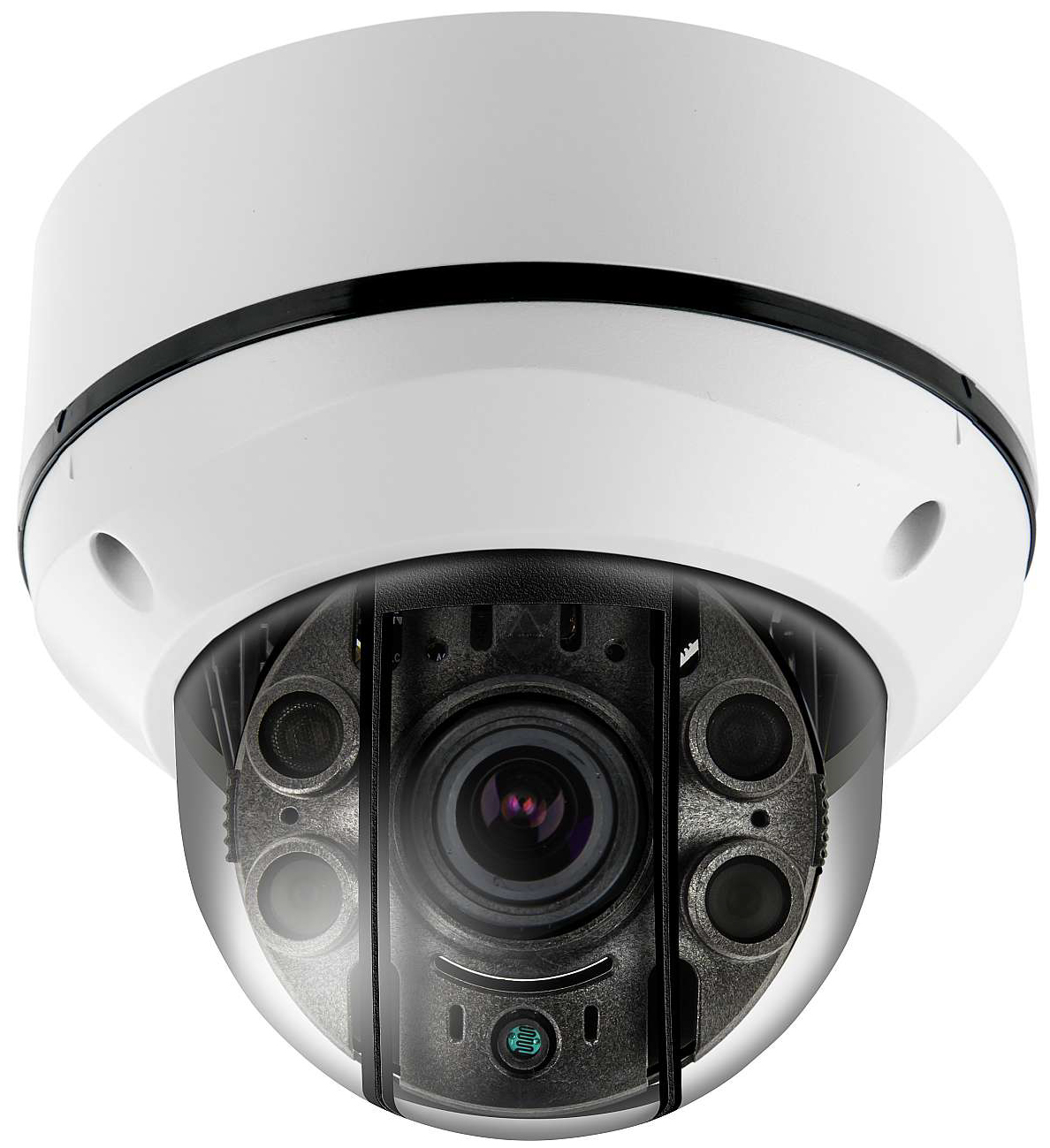

Eyemax UVI-2544DV-W2812 Anti-IR Reflection | 2MP EX-SDI STORMŽ IR IP68 andal-Resistant Dome Camera with Vari-Focal Lens, True WDR, L-size, AC 24V/DC 12V Duel Power
What is EX-SDI?
The Secrets

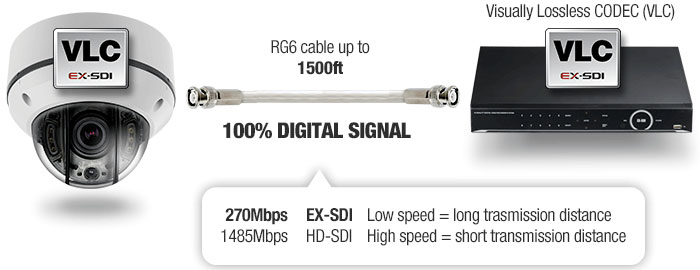

EX-SDI utilize low frequency signal combine with the new VLC (Visually Lossless CODEC) technology, able to push up 99% identical image quality at more than twice the transmission distance.
Ready for 4K
EX-SDI is built in mind of adopting 4K resolution to security. Thanks to the EX-SDI VLC feature, because of that it is possible to transmit 4K in realtime FPS over coaxial cable.
Backward Compatibility
EX-SDI Magic series will work with any HD-SDI cameras. Just like the Magic series once were compatible with their predecessors' technologies

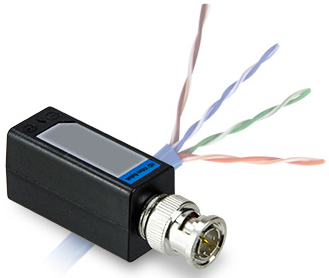

Video Balun compatible
UTP cable is another option to transmit EX-SDI video signal in order to reduce cable cost. Specialized video balun for EX-SDI is required. (sold separately)
- 1/2.8 inch SONY CMOS (IMX-290) / HD-SDI (1080P, 720P)
- 0 Lux at IR On (IR LED 4 pcs) / Upgraded Waterproof Housing (IP 68 rating)
- DNR (Digital Noise Reduction) / HIGH DEFINITION SERIAL DIGITAL INTERFACE/
- WDR (Wide Dynamic Range) /Day & Night (ICR Option) / Easy Installation
- ICR V/F lens, DC Auto IRIS V/F Lens, DC Auto IRIS & TDN V/F Lens
- Focal Length : 2.8~12mm
- 1group
Model | UVI-2544DV-W2812 |
Resolution | 1080P, 720P |
Sensor | 1/2.8 inch SONY CMOS (IMX-290) |
Total Pixels | 1945(H) × 1109(V) = 2.16M |
Effective Pixels | 1945(H) × 1097(V) = 2.13M |
Scanning System | PROGRESSIVE |
S/N (Y signal) | More than 52 dB (AGC Off) |
Video Output | SMPTE274M (EX-SDI, HD-SDI)/(CVBS : 1.0Vp-p (75ohm)) |
Min.Illumination | 0 Lux at IR On |
White Balance | AUTO/AUTO EXT/PRESET/MANUAL |
Shutter | AUTO/MANUAL (1/30sec ~ 1/30,000sec)/FLICKER |
Brightness | ADJUSTABLE (0 ~ 20 STEP) |
SENS_UP | OFF/× 2 ~ × 32 |
DNR/ACE | OFF/LOW/MIDDLE/HIGH |
BACKLIGHT | OFF/WDR/BLC/HLC |
Day & Night | AUTO (Day <> Night TIME Change), COLOR, B/W, EXTERN |
PRIVACY/MOTION/FLIP/DEFOG | OFF/ON |
Language | ENG, CHN, CHN(S), JPN, KOR |
Sharpness | ADJUSTABLE (0 ~ 10 STEP) |
COMM. | RS-485(PELCO-D) |
Smart IR | ADJUSTABLE (0 ~ 20 STEP) |
Temperature/Humidity | Operating (14°F ~ 122°F(-10°C ~ 50°C)/30% ~ 80% RH)/Storage (-4°F ~ 140°F(-20°C ~ 60°C)/ 20% ~ 90% RH) |
Power | AC24V/DC12V DualPower |
signal Transmission | The distant difference is occurred according to cable option and other circumstances. (based on 5C-HFBT : HD-SDI 100M / EX-SDI 500M) |
