Home EX-SDI and HD-SDI Digital Video Recorders and Cameras Eyemax USQ-202P-B37 / EX-SDI Square Case Camera / 1080p Res(2MP) / 3.7mm Pin-hole / DC 12V

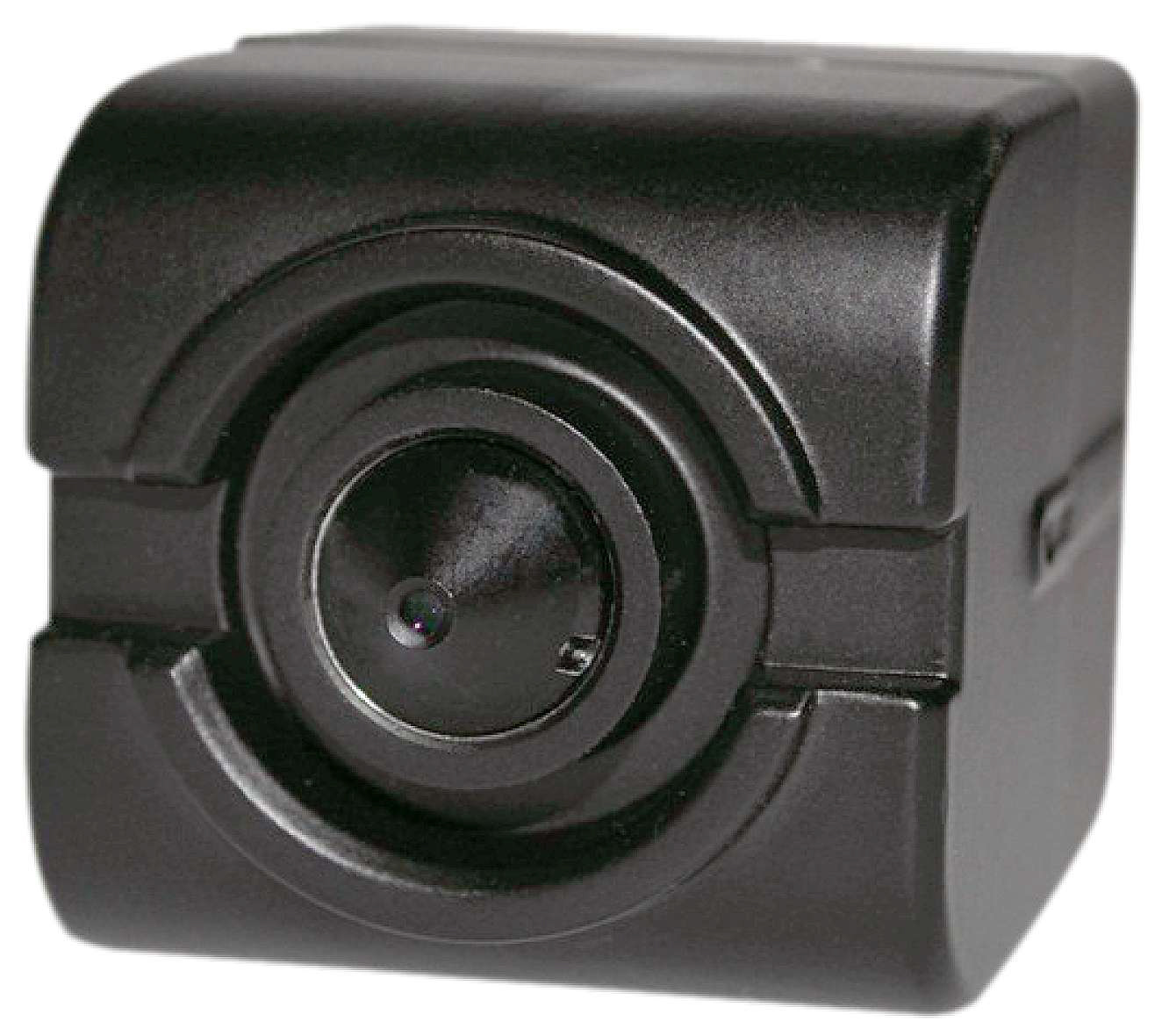

Eyemax USQ-202P-B37 / EX-SDI Square Case Camera / 1080p Res(2MP) / 3.7mm Pin-hole / DC 12V
Eyemax USQ-202P-B37 / EX-SDI Square Case Camera / 1080p Res(2MP) / 3.7mm Pin-hole / DC 12V
- 1/2.9? SONY CMOS (IMX-222)
- HD-SDI (1080P)
- EX-SDI(1080P)
- Extended Serial Digital Interface
- Day & Night(ICR Option)
- DNR (Digital Noise Reduction)
- Easy Installation
- Fixed Lens 3.6mm
- Pinhole Lens 4.3mm
Model | USQ-202P-B37 |
Resolution | 1080P |
Sensor | 1/2.9? SONY CMOS (IMX-222/IMX322) |
Total Pixels | 2000(H) x 1241(V) = 2482000 |
Effective Pixels | 1999(H) x 1092(V) = 2122648 |
Scanning System | Progressive |
S/N (Y Signal) | More than 52dB(AGC Off) |
Video Output | SMPTE292M(HD-SDI)/(CVBS: 1.0Vp-p(75ohm) Option) |
Min Illumination | 1Lux at F1.2/0.1 Lux(B/W) |
White Balance | Auto |
Shutter | Auto(1/30sec – 1/60000sec |
AGC | On |
DNR | On |
Day & Night | On |
Operating Temperature / Humidity | 14? ~ 120?(-10°C ~ 50°C) / 30% ~ 80% RH |
Storage Temperature / Humidity | -4? ~ 140?(-20°C ~ 60°C) / 20% ~ 90% RH |
Power | DC12V |
Signal | The distant difference occurred according cable option and other circumstances. Based on 5C-HFBT HD-SDI(200M) / EX-SDI(400M) |
