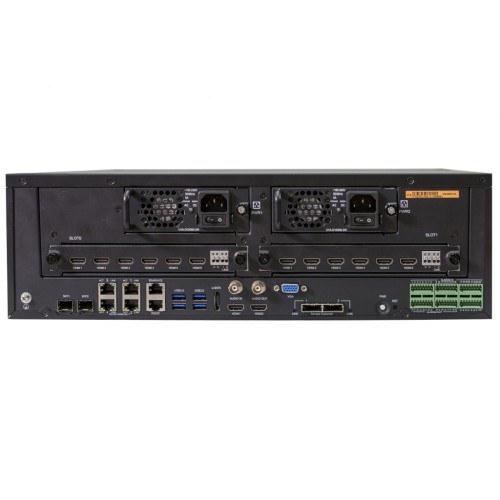

Home IP Cameras and Network Video Recorders NVRs Uniview Cameras and NVRs Uniview UN-NVR516128|Ultra265 128CH NVR|16 SATA
Uniview UN-NVR516128|Ultra265 128CH NVR|16 SATA
Uniview UN-NVR516128|Ultra265 128CH NVR|16 SATA
- H.265 Compression + U-Code (Ultra 265)
- 128 channel input
- Third-party IP cameras supported with ONVIF conformance
- Support 2-ch HDMI, 1-ch VGA, 1-ch CVBS, HDMI2 at up to 4K(3840x2160) resolution
- Up to 12 Megapixels resolution recording
- Support H.265/H.264 video formats
- Accurate retrieval, instant playback
- Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable
- 16 SATA HDDs, Up to 8TB for each HDD
- Support various VCA detection alarm and VCA search
- Support N+1 Hot spare
- Support for 12V Power output
- Support 2 miniSAS interface
- Plug & Play with up to 16 independent PoE network interfaces
- Support for P2P, UPnP, NTP, DHCP, PPPoE
- Support for mobile client access
Model | UN-NVR516128 | |
System | ||
Compression | Ultra 265 (H.265 + U-Code) / H.265 / H.264 | |
Camera | ||
Video Output | HDMI1≤ 4K (3840x2160) /60Hz, 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz. | HDMI2: 4K (3840x2160) /60Hz, 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz. | VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz | |
Video | ||
Video Resolution | 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF | |
Video & Audio | ||
IPC Input | 128CH | |
Audio Out | RCA x 1 | |
Playback | ||
Playback | 16CH | |
Decoding | ||
Live View / Playback | 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF | |
Capability | 4 x 12MP@20, 4 x 4K@30, 16 x 1080p@30, 36 x 720p@30, 64 x D1 | |
Alarm | ||
Alarm In | 24CH | |
Alarm Out | 8CH | |
Special Features | ||
Video Analysis Functions | support face detection, intrusion detection, cross line detection, people counting, scene change detection, defocus Detection, audio Detection, auto tracking | |
Trigger action | When VCA alarm happened, can set the trigger action as send email, upload to FTP and so on. | |
Smart Search | instruction, face detection, line crossing, etc. | |
Corridor Mode | Display and playback | |
Network | ||
Common Interface | 4 x RJ-45 10M/100M/1000M adaptive Ethernet Interface. 2 x 1000M SFP Ethernet Interface | |
Incoming Bandwidth | 512Mbps | |
Outgoing Bandwidth | 384Mbps | |
PoE Ports | N/A | |
User Access | 128 | |
PTZ | ||
Protocol | TCP/IP, UDP, DHCP, DNS, PPPoE, DDNS, Email | |
Storage | ||
Internal HDD | SATA × 16 (8TB per slot) | |
External HDD | 1 eSATA interface | |
Array Type | RAID 0/1/5/6/10/50/60 | |
miniSAS | 2 miniSAS ports | |
Auxiliary Interface | ||
RS232 | 1CH | |
RS485 | 1CH | |
USB | Rear panel: 4 x USB3.0 | |
General | ||
Power Supply | 100 ~ 240 VAC | |
Power Consumption | ≤ 50 W | |
Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity: 10% ~ 90% | |
Dimensions | 131mm × 482mm ×477mm ( 5.1" × 19.0" × 18.8" ) | |
Weight | ≤ 10 Kg ( 22.05 lb ) |
