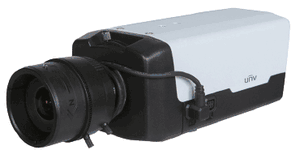

Uniview UNV UN-IPC562EDUG|2MP H.265 HD IP Starlight Box Camera
Uniview UNV UN-IPC562EDUG|2MP H.265 HD IP Starlight Box Camera
- H.265 Compression
- 1/1.9" progressive scan CMOS
- Effective Pixels: 1920 (H) × 1080 (V)
- Colour: 0.02 Lux (F1.6, AGC ON);
- 1080P (1920×1080): Max. 60 fps
- WDR, HLC, ABF, 2D/3D DNR
- Audio I/O, Alarm I/O
- SD card, Max 128GB
- DC12V±25% / AC24V±25% / PoE
Model | UN-IPC562EDUG | |
Camera | ||
Image Sensor | 1/1.9" CMOS, progressive scan | |
Image Resolution | 1920 × 1080 | |
Electronic Shutter | Auto/Manual, 1/6~1/100000 s | |
Mini. Illumination | Colour: 0.002 Lux (F1.2, AGC ON); B/W:0.0002 Lux(F1.2, AGC ON) | |
S/N Ratio | >52dB | |
Camera Features | ||
Day / Night | IR-cut filter with auto switch (ICR) | |
Evaluative Metering | Supported | |
Noise Reduction | 3D DNR | |
Privacy Masking | Supported | |
Defog | Optical Defog & Digital Defog | |
HLC | Supported | |
WDR | True WDR 120dB | |
Video | ||
Video Output | 1 BNC, impedance 75 Ω; amplitude 1 V [p-p] | |
Frame Rate | 1080P (1920×1080): Max. 60 fps; 1080P (1920×1080): Max. 15 fps; / 1080P (1920×1080): Max. 60 fps; 720P (1280×720): Max. 30 fps; D1 (720×576): Max.15 fps; / 1080P (1920×1080): Max. 30 fps; 720P (1280×720): Max. 30 fps; D1 (720×576): Max.30 fps | |
ROI | Supported | |
Video & Audio | ||
Audio In | 1 Input: impedance 35 kΩ; amplitude 2 V [p-p] | |
Audio Out | 1 Output: impedance 600 Ω; amplitude 2 V [p-p] | |
2-Way Audio | Supported | |
Display | ||
OSD | Up to 8 OSDs | |
Audio | ||
Audio | 3.5 mm audio interface | |
Compression | H.265 / H.264 / MJPEG | |
Alarm | ||
Alarm In | 2CH | |
Alarm Out | 1CH | |
Special Features | ||
Behavior Detection | Intrusion, crossing line, motion detection | |
Intelligent Identification | Face detection, | |
Statistical Analysis | People counting | |
Exception Detection | Audio detection | |
ABF | Supported | |
Network | ||
Network Function | L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x | |
Storage | ||
Edge Storage | microSD, Max 128GB | |
Auxiliary Interface | ||
RS485 | 1 RS485 (support Pelco-D/P) | |
General | ||
Power Supply | DC12V±25%, AC24V±25%, PoE (IEEE802.3 at) | |
Power Consumption | 4.8W (6.8W with ICR on) | |
Working Environment | –20°C ~ 60°C (-4°F ~ 140°F), Humidity ≤ 95% RH(non-condensing) | |
Dimensions | 151.5 x 71 x 65 mm (6.0“ x 2.8“ x 2.6”) (excluding the lens) | |
Weight | 0.48 kg (1.1 lb) |
