ENS UN-IPC262ER9X10DU Uniview UNV 2MP WDR Starlight AF Network IR Bullet Camera

Additional View

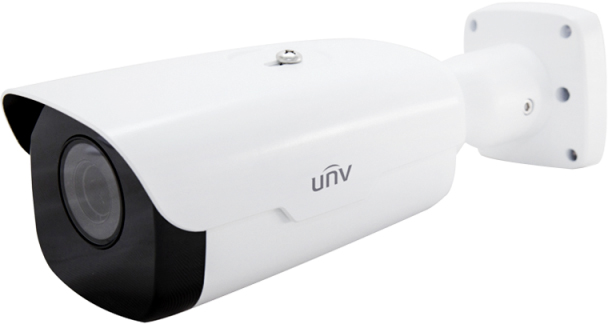

ENS UN-IPC262ER9X10DU Uniview UNV 2MP WDR Starlight AF Network IR Bullet Camera

Model

UN-IPC262ER9X10DU

Image Sensor

1/2.8", progressive scan, 2.0 megapixel, CMOS

Image Size

1920 x 1080

Electronic Shutter

Auto/Manual, 1/10~1/100,000s

Minimum Illumination

Colour: 0.001 Lux (F1.4, AGC ON)
0 Lux with IR

Focal Length

4.7~47mm; P-Iris, AF automatic focusing and motorized zoom lens

DORI Distance

Lens	Detect(m)	Observe(m)	Recognize(m)	Identify(m)
4.7mm	72.9	29.2	14.6	7.3
47mm	729.3	291.7	145.9	72.9

IR LEDs

Smart-IR

IR Distance

Up to 100m (328ft) IR range

S/N Ratio

> 52dB

Angle of View

(H): 65�~9�, (V): 36.9�~3.8�, (O): 80�~10.6�

Angle Adjustment

Pan: 0�~360�, Tilt: 0�~90�, Rotate: 0�~360�

Defog

Digital Defog

Wide Dynamic Range

120dB

OSD

Yes

Video Compression

Ultra 265,H.265, H.264, MJPEG

Video Resolution

2MP / 1MP / D1

Video Frame Rate

Main Stream: 2MP (1920�1080): Max. 30 fps;
Sub Stream: 2MP (1920�1080): Max. 30 fps;
Third Stream: D1(720�576) : Max. 30fps

9:16 Corridor Mode

Supported

Day / Night

IR-cut filter with auto switch (ICR)

BLC Mode

Supported

HLC

Supported

ROI

Up to 8 areas

Digital Noise Reduction

2D/3D DNR

Motion Detection

Up to 4 areas

Privacy Masking

Up to 8 areas

Behavior Detection

Intrusion, crossing line, motion detection

Exception Detection

Face detection, Audio detection

Intelligent Identification

Defocus, Scene Change, Object Left, Object Moving

Statistical Analysis

People counting

General Function

Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio Compression

G.711

Audio In

1 Input: impedance 35 kΩ; amplitude 2 V [p-p]

Audio Out

1 Output: impedance 600 Ω; amplitude 2 V [p-p]

Alarm In

2CH

Alarm Out

1CH

Ethernet

1 x RJ45, 10M/100M Base-TX Ethernet

Network Protocol

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP

Network Interoperability

ONVIF,API

Storage

ANR

Storage Card

Micro SD, Up to 256GB

Web Viewer

IE web browser

Mobile

iPhone, Android

Video Output

1 x BNC, impedance 75 Ω; amplitude 1 V [p-p]

RS485

1 x RS485

Power Supply

DC12V�25%, AC24V�25%, PoE (IEEE802.3 at)

Power Consumption

Power consumption: Max. 13.7W

Operating Temperature

-40�C ~ +60�C (-40�F ~ 140�F), Humidity:10%~95% RH(non-condensing)

Storage Temperature

-40�C ~ +60�C (-40�F ~ 140�F), Humidity:10%~95% RH(non-condensing)

Ingress Protection

IP67

Dimensions

12.0� � 4.1� � 3.8� (305.5 �104.1 �97.3mm )

Weight

3.6Lbs (1.65kg)
