ENS UN-IPC2125SR3ADUPF40 Uniview UNV 5MP WDR Starlight Mini Fixed Bullet Network Camera

Additional View

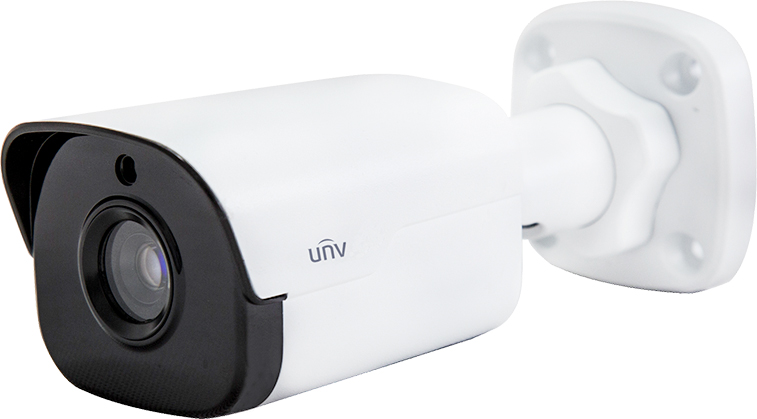

ENS UN-IPC2125SR3ADUPF40 Uniview UNV 5MP WDR Starlight Mini Fixed Bullet Network Camera

Model

UN-IPC2125SR3ADUPF40

Image Sensor

1/2.7", progressive scan, 5.0megapixel, CMOS

Image Size

2592 x 1944

Electronic Shutter

Auto/Manual, 1/6~1/100000s

Minimum Illumination

Color: 0.005 Lux (F1.6, AGC ON)
B/W: 0 Lux with IR on

Focal Length

4.0mm@F1.6

DORI Distance

Lens	Detect(m)	Observe(m)	Recognize(m)	Identify(m)
4mm	90	36	18	9
6mm	135	54	27	13.5

IR LEDs

Hidden IR

IR Distance

98ft (30m)

S/N Ratio

> 52dB

Angle of View

H: 79.7�/ V: 51.8 / O: 98.1

Angle Adjustment

Pan: 0�~360�, Tilt: 0�~90�, Rotate:0�~360�

Defog

Digital Defog

Wide Dynamic Range

120dB

OSD

Yes

Video Compression

Ultra 265,H.265, H.264, MJPEG

Video Resolution

5MP / 4MP / 3MP / 2MP / 1MP / D1

Video Frame Rate

Main Stream:5MP(2592 x 1944): Max.20 fps,5MP(2592 x 1944): Max.25fps(WDR OFF), 4MP(2560 x 1440): Max. 30 fps,3MP(2048x 1536): Max. 30 fps, 2MP(1920 x 1080): Max.30 fps;
Sub Stream:2MP(1920 x 1080): Max.30 fps;
Third Stream: D1(720 x 576): Max.30 fps;

9:16 Corridor Mode

Supported

Day / Night

IR-cut filter with auto switch (ICR)

BLC Mode

Supported

HLC

Supported

ROI

Up to 8 areas

Digital Noise Reduction

2D / 3D DNR

Motion Detection

Up to 4 areas

Privacy Masking

Up to 8 areas

Behavior Detection

Intrusion, crossing line, motion detection

Exception Detection

Face detection, Audio detection

Intelligent Identification

Defocus, Scene Change, Object Left, Object Moving

Statistical Analysis

People counting

General Function

Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio Compression

G.711

Audio In

Built-In Mic

Ethernet

RJ45 x 1, 10M/100M Base-TX Ethernet

Network Protocol

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, SSL, TLS

Network Interoperability

ONVIF, API

Web Viewer

IE web browser

Mobile

iPhone, Android

Power Supply

DC 12V�25%, PoE (IEEE 802.3af)

Power Consumption

Max 6.4W

Operating Temperature

-35�C ~ +60�C (-31�F ~ 140�F), Humidity ≤ 95% RH(non-condensing)

Ingress Protection

IP67

Dimensions

6.2� � 2.5� � 2.5� (157.3 � 62.4 �63 mm)

Weight

0.99 Lbs (0.45 kg)
