Home New Arrivals Telpix UIR-B4352V 4MP IR Bullet Camera, EX-SDI / HD-SDI / CVBS(Analog), Weather-Resistant, Up to 164ft(50m) IR Range, Vari-focal Lens, True WDR, UCC Support, 12VDC

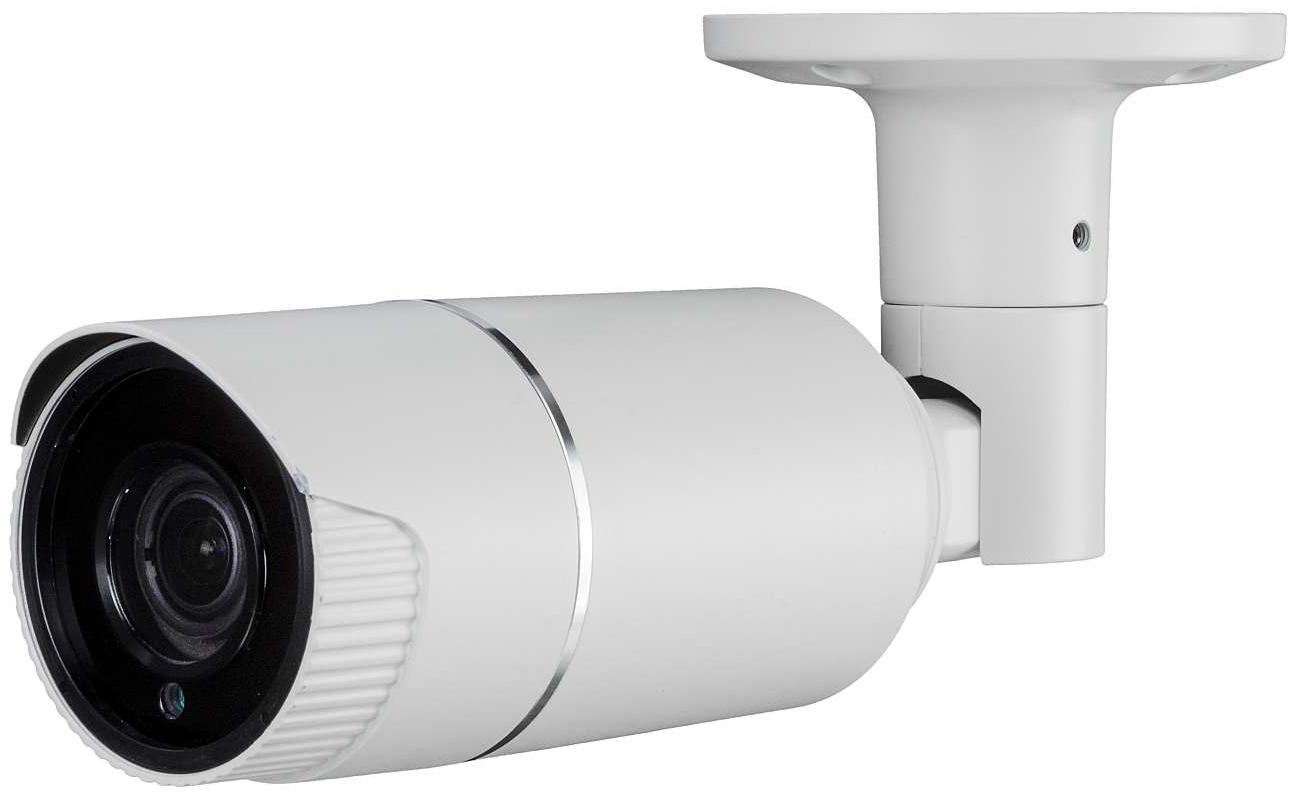

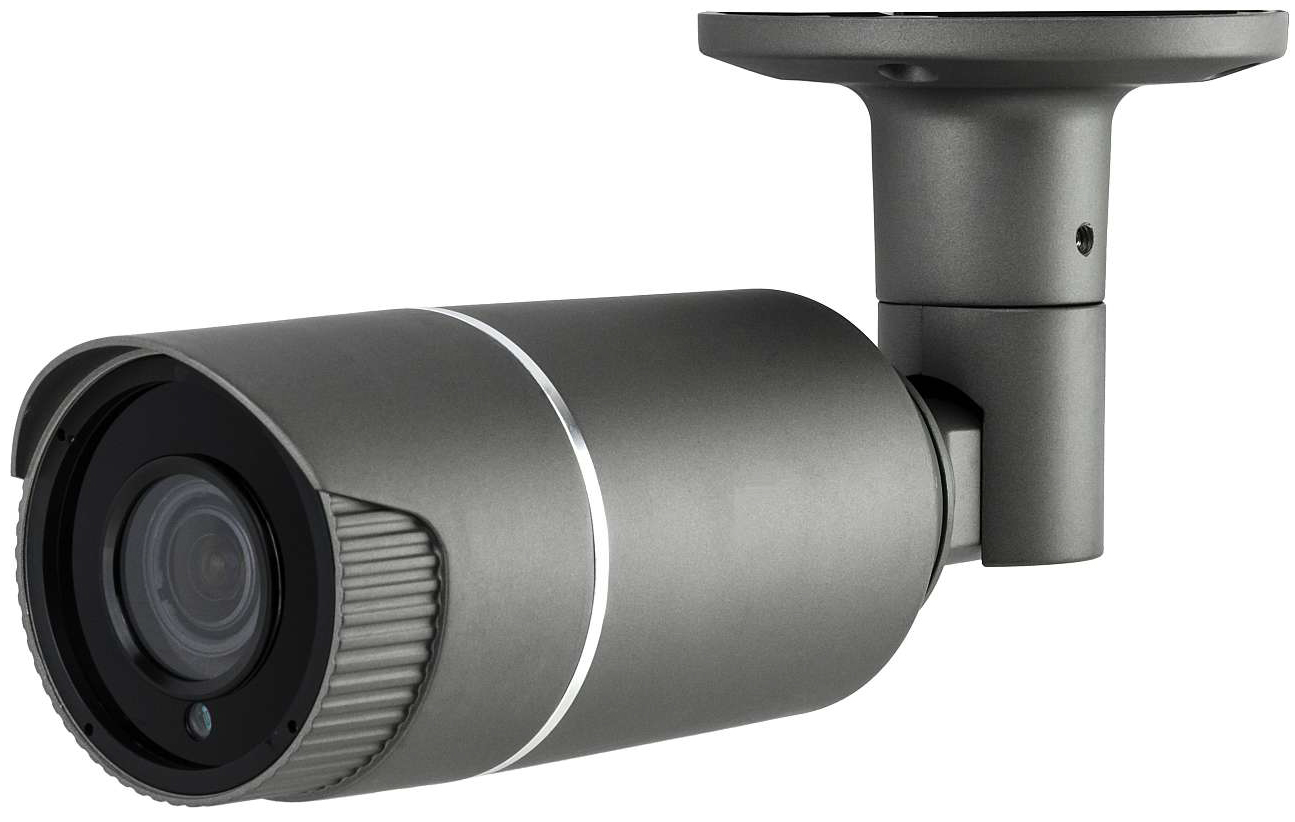

Telpix UIR-B4352V 4MP IR Bullet Camera, EX-SDI / HD-SDI / CVBS(Analog), Weather-Resistant, Up to 164ft(50m) IR Range, Vari-focal Lens, True WDR, UCC Support, 12VDC
What is EX-SDI?
The Secrets
EX-SDI utilize low frequency signal combine with the new VLC (Visually Lossless CODEC) technology, able to push up 99% identical image quality at more than twice the transmission distance.
Ready for 4K
EX-SDI is built in mind of adopting 4K resolution to security. Thanks to the EX-SDI VLC feature, because of that it is possible to transmit 4K in realtime FPS over coaxial cable.
Backward Compatibility
EX-SDI Magic series will work with any HD-SDI cameras. Just like the Magic series once were compatible with their predecessors' technologies
Video Balun compatible
UTP cable is another option to transmit EX-SDI video signal in order to reduce cable cost. Specialized video balun for EX-SDI is required. (sold separately)
- 1/2.7" 6 Mega Pixel SONY Sensor, EX-SDI 4MP 3 Array leds
- 2.8~12mm 5Mega Pixel Lens
- IR Bullet
- IR Cut Filter
- 3 white array leds, 164ft(50m) IR Distance
- Defog, HLI, 3DNR, SENSE UP
- Multi languages choice
- BLC, MIRROR, FLIP, ACE, PRIVACY, MONTION DETECT
- True WDR (ON /15FPS; OFF / 30FPS)
- SUPPORT UCC
- EX-SDI 2.0 & CVBS Output, switch on HD-SDI & EX-SDI Output
Model | UIR-B4352V |
Image Sensor | 1/2.7" 6 Mega Pixel Sensor |
Effective Pixels | 4.0 Mega Pixels |
Built-in Lens | 2.8 ~ 12mm 5Mega Pixel Lens |
Signal System | PAL/NTSC |
Horizontal Resolution | PAL: 2560 × 1440P 25F/S NTSC: 2560 × 1440P 30F/S |
Sync. System | Internal Sync. |
Sensor Area | 38 × 38mm |
Video Output | EX-SDI 2.0& CVBS Output, switch on HD-SDI & EX-SDI Output |
S/N Ratio | More than 50dB (AGC OFF) |
OSD Menu | Support |
White Balance | Auto Tracking White Balance |
Shutter Speed | 1/25 ~ 50,000Sec. |
IR Leds | 3 white array leds |
Working Temperature | -10°C ~ 50°C |
Storage Temperature | -20°C ~ 60°C |
Power Requirement | DC 12V, Max Power consumption Less Than 3W (When the infrared lamps turn on) |
Weight | 2.76 lbs (1.25kg) |
