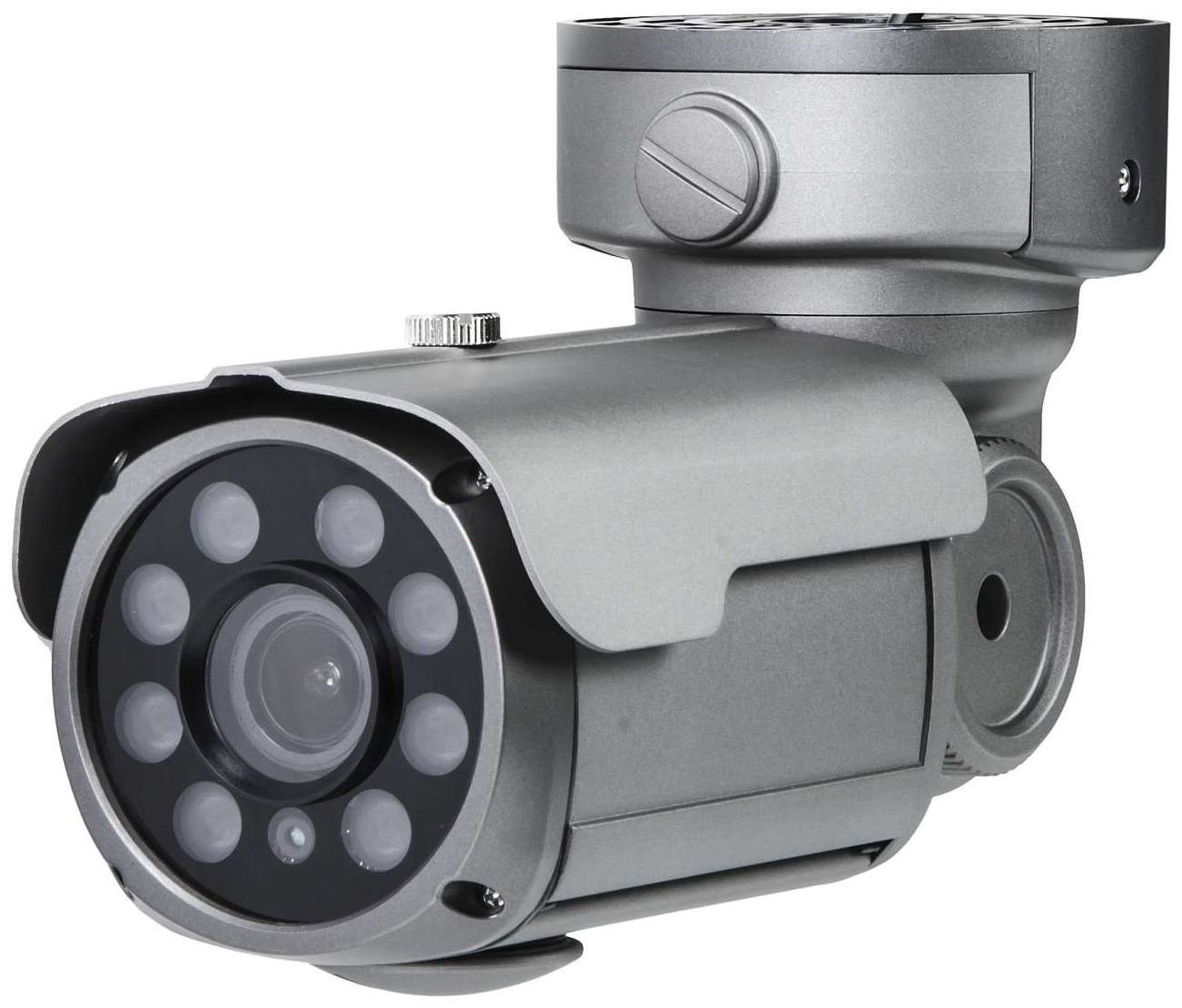

Eyemax UIR-2344V-B EX-SDI IR Bullet / 2MP / COB IRx8 / 2.8~12mm AVF MP / ICR / AC 24V/DC 12V / Smart Mount II
What is EX-SDI?
The Secrets
EX-SDI utilize low frequency signal combine with the new VLC (Visually Lossless CODEC) technology, able to push up 99% identical image quality at more than twice the transmission distance.
Ready for 4K
EX-SDI is built in mind of adopting 4K resolution to security. Thanks to the EX-SDI VLC feature, because of that it is possible to transmit 4K in realtime FPS over coaxial cable.
Backward Compatibility
EX-SDI Magic series will work with any HD-SDI cameras. Just like the Magic series once were compatible with their predecessors' technologies
Video Balun compatible
UTP cable is another option to transmit EX-SDI video signal in order to reduce cable cost. Specialized video balun for EX-SDI is required. (sold separately)
- 1/2.9 inch SONY CMOS (IMX-222 • IMX-322)
- HD-SDI (1080P • 720P • 720P CROP)
- Extended Serial Digital Interface
- 0 Lux at IR On (IR LED 08 pcs)
- Upgraded Waterproof Housing (IP68rating)
- OSD Controlled
- DNR (Digital Noise Reduction)
- Smart IR
- WDR (Wide Dynamic Range)
- Day & Night (ICR Option)
- D.ZOOM
- Privacy
- Image Conversion
- Easy Installation
- DC Auto IRIS V/F Lens 2.8~12mm
- DC Auto IRIS & TDN V/F Lens 2.8~12mm
- Fixed Lens 3.6mm • 3.7mm • 4mm • 4.3mm • 6mm
Model | UIR-2344V-B |
Resolution | 1080P, 720P, 720P CROP |
Sensor | 1/2.9 inch SONY CMOS (IMX-222 / IM × 322) |
Total Pixels | 2000(H) × 1241(V) = 2,482,000 |
Effective Pixels | 1944(H) × 1092(V) = 2,122,648 |
Scanning System | PROGRESSIVE |
S/N (Y signal) | More than 52 dB (AGC Off) |
Video Output | SMPTE274M (HD-SDI) / (CVBS: 1.0Vp-p (75ohm) : Option) |
Min.Illumination | 1 Lux at F1.2 / 0.1 Lux (B/W) |
White Balance | AUTO / AUTO EXT / PRESET / MANUAL |
shutter | AUTO / MANUAL (1/30sec ~ 1/60,000sec) |
Brightness | ADJUSTABLE (0 ~ 20 STEP) |
SENS_UP | OFF / × 2 / × 4 / × 8 / × 16 / × 32 |
DNR | OFF / LOW / MIDDLE / HIGH |
BACKLIGHT | OFF / WDR / BLC / HLC |
ACE | OFF / LOW / MIDDLE / HIGH |
Day & Night | AUTO (Day <–> Night TIME Change) , COLOR , B/W, EXTERN, |
Privacy | OFF / ON |
Motion | OFF / SET |
D.ZOOM | x1.0 ~ × 16.0 |
FLIP | OFF / ON |
FREEZE | OFF / ON |
Language | ENG, CHN, CHN(S), JPN, KOR |
Sharpness | ADJUSTABLE (0 ~ 10 STEP) |
DEFOG | OFF / SET |
COMM | RS-485 (PELCO-D) |
SMART IR (IR product SPEC.) | ADJUSTABLE (0 ~ 20 STEP) |
Operating Temperature / Humidity | 14°F ~ 122°F(-10°C ~ 50°C) / 30% ~ 80% RH |
Storage Temperature / Humidity | -4°F ~ 140°F(-20°C ~ 60°C) / 20% ~ 90% RH |
Power | DC12V [ AC24V / DC12V DualPower (option) ] |
signal Transmission | The distant difference is occurred according to cable option and other circumstances. (based on 5C-HFBT : HD-SDI (200M) / EX-SDI (400M)) |
