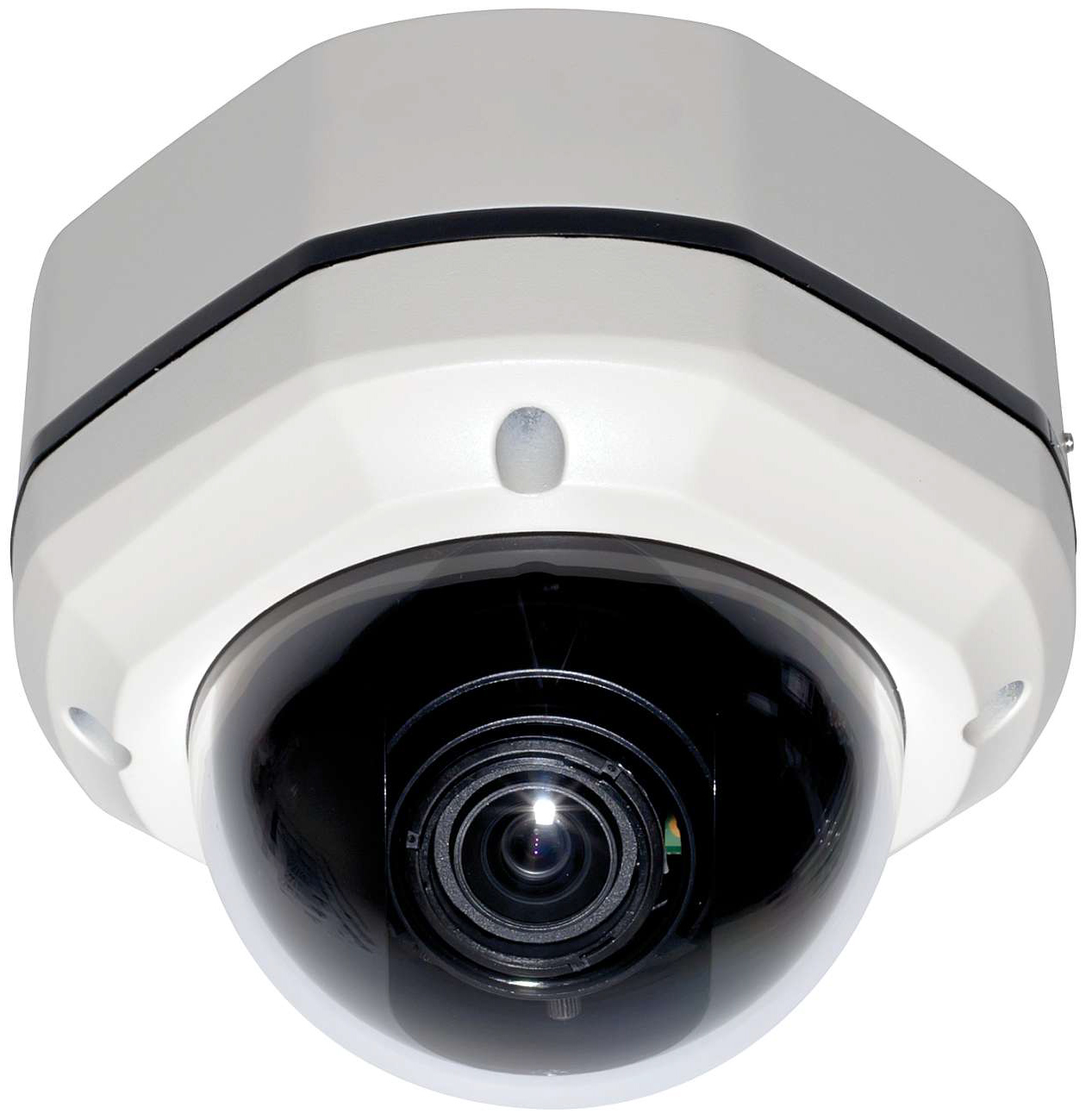

Eyemax UHM-202-W EX-SDI Outdoor Dome Camera(IP68) / 1080p Res(2MP) / 3.6mm MP / DC 12V
Eyemax UHM-202-W EX-SDI Outdoor Dome Camera(IP68) / 1080p Res(2MP) / 3.6mm MP / DC 12V
- 1/2.9 inch SONY CMOS (IMX-222 / IMX-322)
- Extended Serial Digital Interface / 1 Lux at F1.2 / 0.1 Lux (B/W)
- Upgraded Waterproof Housing (IP 68 rating) / DNR (Digital Noise Reduction)
- WDR (Wide Dynamic Range) / Day & Night (ICR Option) / Easy Installation
- ICR V/F lens, DC Auto IRIS V/F Lens, DC Auto IRIS & TDN V/F Lens
- (Focal Length : 2.8~12mm) / Fixed Lens 3.6mm
Model | UHM-202-W |
Resolution | 1080P, 720P, 720P CROP |
Sensor | 1/2.9 inch SONY CMOS (IMX-222 / IMX322) |
Total Pixels | 2000(H) x 1241(V) = 2,482,000 |
Effective Pixels | 1944(H) x 1092(V) = 2,122,648 |
Scanning System | PROGRESSIVE |
S/N (Y signal) | More than 52 dB (AGC Off) |
Video Output | SMPTE292M (HD-SDI) / (CVBS: 1.0Vp-p (75ohm) : Option) |
Min.Illumination | 1 Lux at F1.2 / 0.1 Lux (B/W) |
White Balance | AUTO / AUTO EXT / PRESET / MANUAL |
Electronic shutter speed | AUTO / MANUAL (1/30sec ~ 1/60,000sec) |
SENS_UP | OFF / X2 / X4 / X8 / x16 / x32 |
DNR / ACE | OFF / LOW / MIDDLE / HIGH |
BACKLIGHT | OFF / WDR / BLC / HLC |
Day & Night | AUTO (Day <–> Night TIME Change), COLOR, B/W, EXTERN |
PRIVACY / FLIP / FREEZE | OFF / ON |
MOTION / DEFOG | OFF / SET |
D.ZOOM | x1.0 ~ x16.0 |
Language | ENG, CHN, CHN(S), JPN, KOR |
Sharpness / Brightness | ADJUSTABLE (Sharpness : 0 ~ 10 STEP / Brightness : 0 ~ 20 STEP ) |
COMM. | RS-485(PELCO-D) |
Temperature/Humidity | Operating (14°F ~ 120°F(-10°C ~ 50°C) / 30%~80% RH) / Storage (-4°F ~ 140°F(-20°C ~ 60°C) / 20%~90% RH) |
Power | DC12V [ AC24V / DC12V DualPower (option) ] |
signal Transmission | The distant difference is occurred according to cable option and other circumstances. (based on 5C-HFBT : HD-SDI (200M) / EX-SDI (400M)) |
