Home EX-SDI and HD-SDI Digital Video Recorders and Cameras EX-SDI and HD-SDI Dome Cameras Eyemax UDL-202V EX-SDI : 1080p Non-IR Indoor Large Dome with Vari-focal Lens

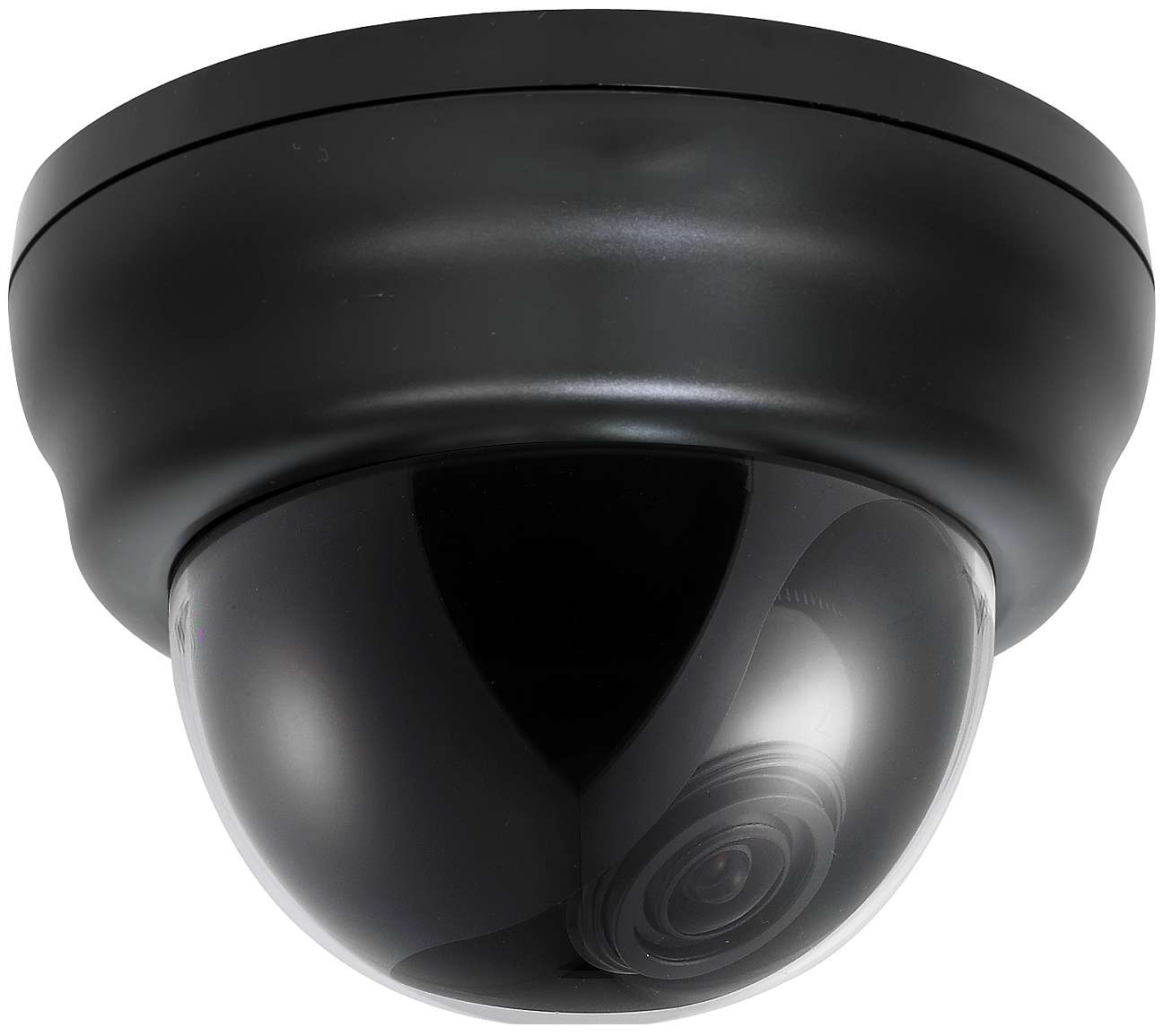

Eyemax UDL-202V EX-SDI : 1080p Non-IR Indoor Large Dome with Vari-focal Lens
Eyemax UDL-202V EX-SDI : 1080p Non-IR Indoor Large Dome with Vari-focal Lens
- 1/2.9 inch SONY CMOS (IMX-222 • IMX-322)
- HD-SDI (1080P • 720P • 720P CROP)
- Extended Serial Digital Interface
- 1 Lux at F1.2
- 0.1 Lux (B/W)
- OSD Controlled
- DNR (Digital Noise Reduction)
- Smart IR
- WDR (Wide Dynamic Range) Day & Night (ICR Option)
- D.ZOOM
- Privacy
- Image Conversion
- Easy Installation
- DC Auto IRIS V/F Lens 2.8~12mm
- DC Auto IRIS & TDN V/F Lens 2.8~12mm
Model | UDL-202V |
Resolution | 1080P, 720P, 720P CROP |
Sensor | 1/2.9 inch SONY CMOS (IMX-222 / IM × 322) |
Total Pixels | 2000(H) × 1241(V) = 2,482,000 |
Effective Pixels | 1944(H) × 1092(V) = 2,122,648 |
Scanning System | PROGRESSIVE |
S/N (Y signal) | More than 52 dB (AGC Off) |
Video Output | SMPTE274M (HD-SDI) / (CVBS: 1.0Vp-p (75ohm) : Option) |
Min.Illumination | 1 Lux at F1.2 / 0.1 Lux (B/W) |
White Balance | AUTO / AUTO EXT / PRESET / MANUAL |
shutter | AUTO / MANUAL (1/30sec ~ 1/60,000sec) |
Brightness | ADJUSTABLE (0 ~ 20 STEP) |
SENS_UP | OFF / × 2 / × 4 / × 8 / × 16 / × 32 |
DNR | OFF / LOW / MIDDLE / HIGH |
BACKLIGHT | OFF / WDR / BLC / HLC |
ACE | OFF / LOW / MIDDLE / HIGH |
Day & Night | AUTO (Day <–> Night TIME Change) , COLOR , B/W, EXTERN, |
Privacy | OFF / ON |
Motion | OFF / SET |
D.ZOOM | x1.0 ~ × 16.0 |
FLIP | OFF / ON |
FREEZE | OFF / ON |
Language | ENG, CHN, CHN(S), JPN, KOR |
Sharpness | ADJUSTABLE (0 ~ 10 STEP) |
DEFOG | OFF / SET |
COMM | RS-485 (PELCO-D) |
SMART IR (IR product SPEC.) | ADJUSTABLE (0 ~ 20 STEP) |
Operating Temperature / Humidity | 14°F ~ 122°F(-10°C ~ 50°C) / 30% ~ 80% RH |
Storage Temperature / Humidity | -4°F ~ 140°F(-20°C ~ 60°C) / 20% ~ 90% RH |
Power | DC12V |
signal Transmission | The distant difference is occurred according to cable option and other circumstances. (based on 5C-HFBT : HD-SDI (200M-656ft) / EX-SDI (400M-1312ft)) |
