Telpix TVST-TR5716 TR series 5716 | 16Ch TVI / AHD / CVI / Analog / IP Hybrid DVR System, H.265, up to 5MP, 8Ch Audio, HDMI, 2 × SATA, 1 × eSATA, iOS & Android App Available

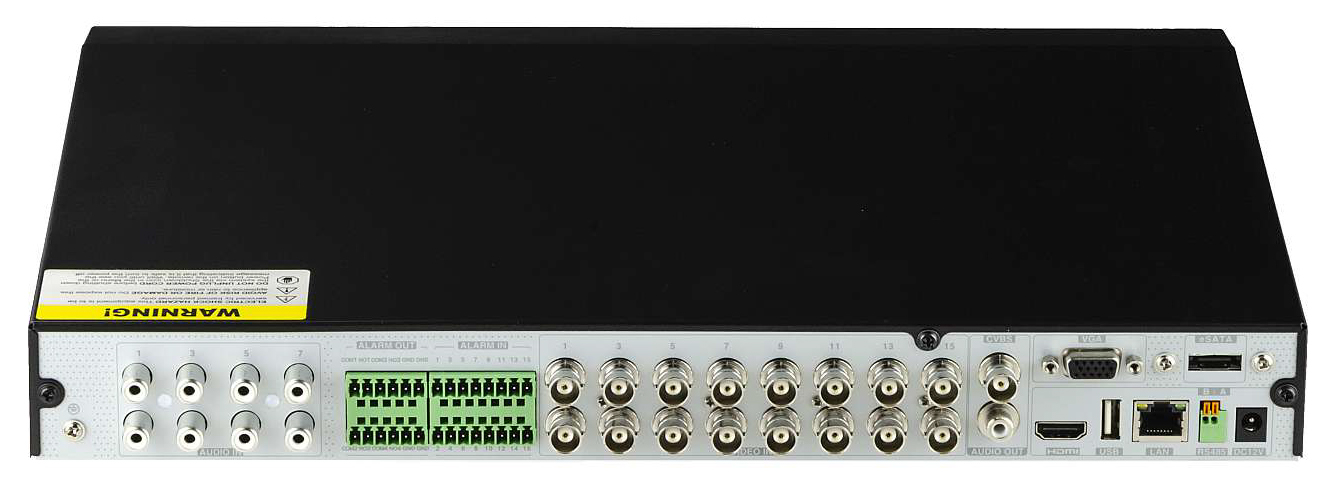

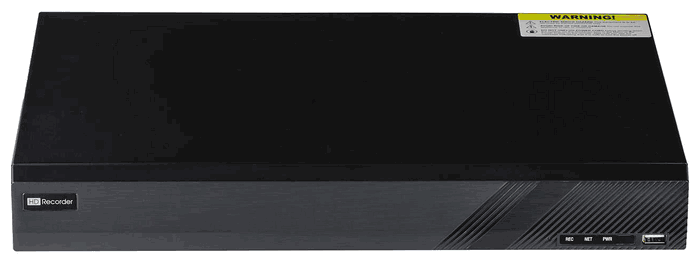

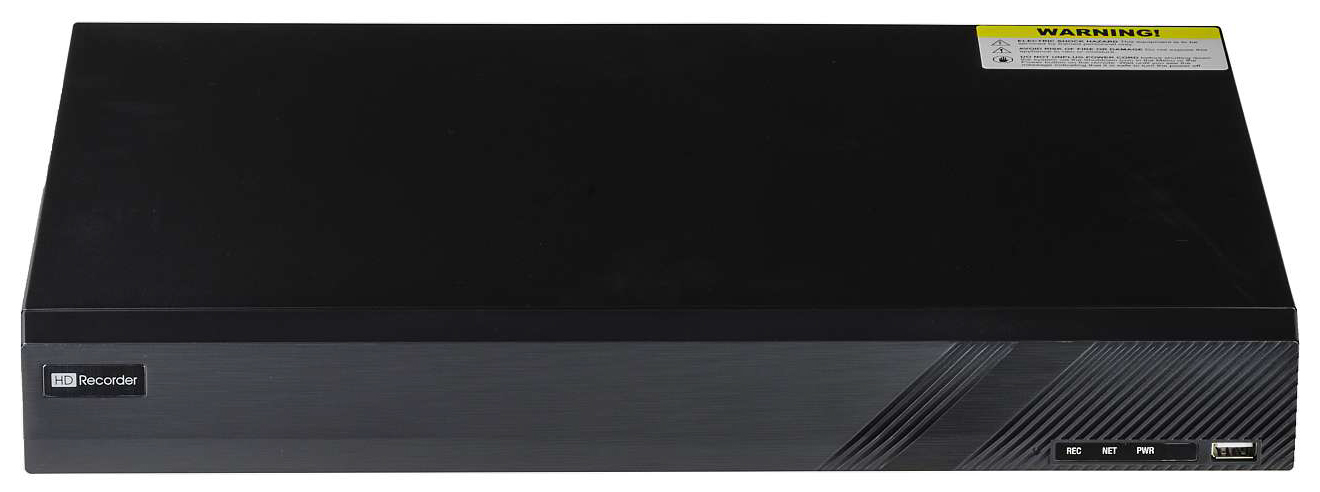

Additional View

Telpix TVST-TR5716 TR series 5716 | 16Ch TVI / AHD / CVI / Analog / IP Hybrid DVR System, H.265, up to 5MP, 8Ch Audio, HDMI, 2 × SATA, 1 × eSATA, iOS & Android App Available

SKU#

:

TVST-TR5716

Availability

:

Usually ships the next business day

Hard Drive

:

Warranty

:

Hi-Res Security Monitor

:

Quantity

:

Description
Features
Specifications
Downloads
Product Review

Telpix TVST-TR5716 TR series 5716 | 16Ch TVI / AHD / CVI / Analog / IP Hybrid DVR System, H.265, up to 5MP, 8Ch Audio, HDMI, 2 × SATA, 1 × eSATA, iOS & Android App Available

16 CH TVI / AHD video input, support 5MP / 4MP / 3MP / 1080P / 720P / WD1
16 CH CVI video input, support 4MP / 3MP / 1080P / 720P / WD1 Default support
8 CH IPC 5MP / 4MP / 3MP / 1080P / 960P / 720P
Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
Multi-mode recording: manual / timer / motion
Playback : 16 CH simultaneously playback
Search: time slice, time, event ( manual, motion ), tag search
Express and flexible backup via USB, network and so on
Pentaplex: preview, record, playback, backup and remote access
DHCP, DDNS, PPPoE network protocol, IE browse and CMS supported
Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
Multi-user online simultaneously
Authorization management, log review and device status review
1080P output, true high resolution display
Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
Support NAT function and QRCode scanning by mobile phone and PAD
Powerful smart phone & Pad surveillance with iOS and Andriod OS

Model	TVST-TR5716
System
Compression	Standard H.265 High Profile
CPU	Cortex A9
OS	Embedded Linux
Video
Input	BNC × 16
Resolution	TVI / AHD: 5MP / 4MP / 3MP / 1080P / 720P / WD1 CVI: 4MP / 3MP / 1080P / 720P / WD1
IP Input	8CH (up to 16CH)
Output	HDMI × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 BNC × 1 : CVBS ( used as the main or spot output)
Audio
Input	RCA × 8
Output	RCA × 1
Two-way audio	Take up channel one audio input
Record
Resolution	5MP Lite / 4MP Lite / 1080P / 1080P Lite / 720P / WD1
Frame Rate	5MP Lite@10fps 4MP Lite / 1080P@12fps(PAL) / 15fps (NTSC) 1080P Lite/720P/WD1@25fps (PAL) / 30fps (NTSC)
Bit Rate	32Kbps ~ 5Mbps
Mode	Manual, Timer, motion
IP Input
Resolution	5MP / 4MP / 3MP / 1080P / 960P / 720P
Frame Rate	25fps ( PAL ) / 30fps ( NTSC )
Playback
Playback	16 CH
Search	Time slice / time / event / tag search
Smart Search	Highlight colors to display the camera record in a certain period of time, different colors refer to different record events
Function	Play, Pause, FF, FB, Digital Zoom, etc.
Alarm
Mode	Manual, motion, exception
Input	16 CH
Output	4 CH
Triggering	Record, Snap, Preset, E-mail, etc.
Network
Interface	RJ45 100Mbps × 1
Protocol	TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP
Bandwidth	72 / 96Mbps (access/transfer)
Mobile Device
OS	iOS, Android
Storage
HDD	SATA × 2, up to 8TB eSATA × 1
Backup
Local Backup	U disk, USB removable HDD
Network Backup	Yes
Port
RS485	RS485 × 1, connect to PTZ or keyboard
USB	USB 2.0 × 2
Remote Controller	Optional
Others
Power Supply	DC 12V / 4A
Consumption	≤ 15W (without HDD)
Dimensions	380 × 268 × 52mm (W × D × H)
Work Environment	-10 ~ 50°C, 10% ~ 90% humidity
