Home HD-TVI High Definition Cameras and DVRs HD-TVI Digital Video Recorders 4-32 Channel Telpix TVST-TR2908A 8CH TR series 1080P Hybrid Securiy DVR System

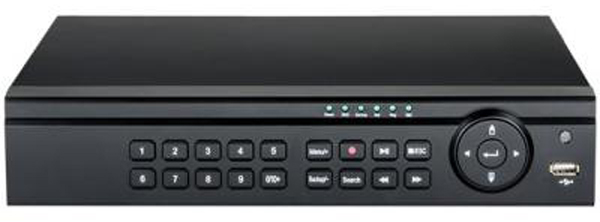

Telpix TVST-TR2908A 8CH TR series 1080P Hybrid Securiy DVR System
TVST TR series are standard 8 CH 1080P high resolution hybrid DVRs with ability to connect analog, AHD and IP cameras simultaneously, which adopt the standard high profile compression format and the most advanced SOC technique to ensure recording in each channel and realize outstanding robustness of the system. It support 8 CH video input, 4 CH audio input, simultaneous 8 CH playback. The series of product can meet different security requirements of home, financial, commerce, enterprise, transportation and government, etc.
- CVBS (analog) out (can be used as spot out)
- AHD camera support
- 8 CH HD TVI video input, 1080P / 720P / D1 recording
- 1 CH IPC 1080P/960P/720P/WD1/D1 recording.
- Adopt high profile compression format to get high-quality video at much lower bit rate
- Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
- Multi-mode recording: manual / timer / motion
- Playback: 8 CH simultaneously playback
- Search: time / calendar, events ( motion )
- Express and flexible backup via USB, network
- Pentaplex : preview, record, playback, backup and remote access
- DHCP, DDNS, PPPoE Network protocol, IE browse and CMS supported
- Remote control via IE or CMS: preview, playback, backup, PTZ and configuration
- Dual stream technology to encode recording stream and network stream respectively. User can adjust network stream to fit bandwidth without changing recording quality
- Multi-user online simultaneously
- Authorization management, log review and device status review
- HDMI 1080P output, true high resolution display
- Support PTZ preset and auto cruise, up to 128 presets and 8 cruises
- Powerful smart phone surveillance supporting iPhone, Andriod
- Support NAT function, support QR code scanning by mobile phone
Model | TVST-TR2908A |
Video Input / Resolution | 8 CH (BNC) / 1080P |
IP Cam Input | IPC x1/6MPS |
Output | VGA x 1: 1080P HDMI x 1:1080P BNC x 1: 1080P(CVBS or SPOT) |
Multi Operation | Pentaplex: Live Display / Record / Playback / Backup / Remote Access |
OS | Embedded Linux |
Recording | 720P (1280 X 720) , 1080P Lite(960x1080), 1080P (1920X 1080) |
Recording (720P) | 200fps: 25fps per channel |
Recording (1080P Lite) | 200fps: 25fps per channel |
Recording (1080P) | 100fps: 12fps per channel |
Audio in | RCA x 4 |
Two-Way Audio | Yes |
Mic in | No |
Audio out | RCA x 1 |
Bit Rate | 768Kbps ~ 8Mbps |
Encode | VBR / CBR |
Quality Levels | 6 level |
Recording Modes | Manual, Timer, Motion, Sensor |
File Management | Lock, Unlock, Reserving time, Redundancy |
Local Playback | 8 CH |
Search | Time, Motion,Sensor,Single or Multi-channel |
Function | Play, Pause, FF,FB,Shutter Control ,Jog,Digital zoom |
Alarm Modes | Sensor,Motion,Video loss |
Alarm Triggering | Record, PTZ move, Relay out,E-mail, etc |
Network Interface | RJ45 x 1 |
Remote Playback | 4CH |
Master Steam | 4CH |
Dual-stream | Individual Network Video Stream and local recording stream, set seperately |
PTZ Protocol | Pelco D, Pelco P, RANGE, VISCA, DSCP, VIDO, STAR, NEON, MINKING, LILIN |
Protocal | TCP/IP, UDP, DHCP, DNS, PPPOE, DDNS, SMTP, NAT, HTTP |
Remote Viewing | CMS / Web Browser / Mobile (iOS/Android) |
Remote Users | 10 users online, dual stream |
SATA HDD | Up to 6TB (1 x 6TB) |
Alarm in | 4 |
Alarm out | 1 |
RS485 | RS485 x1 (for PTZ or Keyboard) |
USB | USB2.0 x 2 (for mouse and USB backup device) |
Accessary | Remote controller, SATA cable, USB mouse |
Power Supply | DC: 12V |
Working Environment | -10°C ~50°C (14°F ~ 122°F) , 10% ~ 90%(Humidity) |
Dimension | 255(W)mm×210mm(D)×42(H)mm 10(W)in×8.27(D)in×1.65(H)in |
