Home HD-TVI High Definition Cameras and DVRs HD-TVI Digital Video Recorders 4-32 Channel Eyemax TVST-TR2708 8CH TR Series 1080p Hybrid Security DVR System - Analog + 960H + HD-TVI + IP Cameras

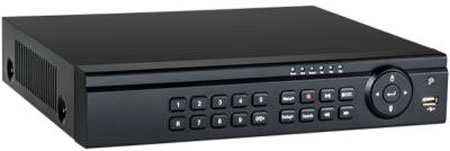

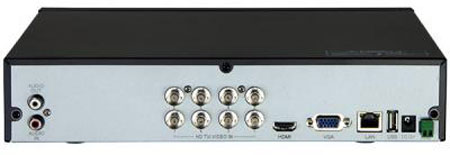

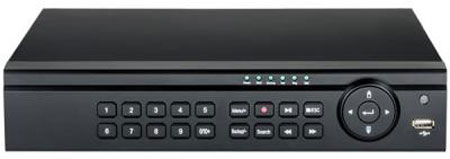

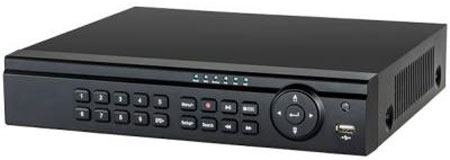

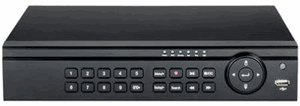

Eyemax TVST-TR2708 8CH TR Series 1080p Hybrid Security DVR System - Analog + 960H + HD-TVI + IP Cameras
TVST TR series are standard 8 CH 1080P high resolution hybrid DVRs with ability to connect analog and IP cameras simultaneously, which adopt the standard H.264 high profile compression format and the most advanced SOC technique to ensure recording in each channel and realize outstanding robustness of the system. It support 8 CH video input, 1 CH audio input, simultaneous 4 CH playback. The series of product can meet different security requirements of home, financial, commerce, enterprise, transportation and government, etc.
- 8 CH HD TVI video input, 1080P / 720P / D1 recording
- 8 CH DVR supports 8 CH IPC 3MP/1080P/960P/720P/WD1/D1 recording.
- Adopt standard H.264 high profile compression format to get high-quality video at much lower bit rate
- Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
- Multi-mode recording: manual / timer / motion
- Playback: 4 / 8 CH simultaneously playback
- Search: time / calendar, events ( motion )
- Express and flexible backup via USB, network
- Pentaplex : preview, record, playback, backup and remote access
- DHCP, DDNS, PPPoE Network protocol, IE browse and CMS supported
- Remote control via IE or CMS: preview, playback, backup, PTZ and configuration
- Dual stream technology to encode recording stream and network stream respectively. User can adjust network stream to fit bandwidth without changing recording quality
- Multi-user online simultaneously
- Authorization management, log review and device status review
- HDMI 1080P output, true high resolution display
- Support PTZ preset and auto cruise, up to 128 presets and 8 cruises
- Powerful smart phone surveillance supporting iPhone, Andriod
- Support NAT function, support QR code scanning by mobile phone
- Complete SDK software available, easy to integrate with other applications
Model | TVST-TR2708 | |
SYSTEM | ||
Compression | Standard H.264 High Profile | |
CPU | Cortex A9 | |
OS | Embedded Linux | |
VIDEO | ||
Input | BNC x 8 Support 1080P@25 / 30fps, 720P@25 / 30 / 50 / 60fps, 960H, D1 input | |
IP Input/Access Bandwidth | IPC x 4 / 24Mbps | |
Ouput | HDMI x 1: 1920 x 1080 VGA x 1: 1920 x 1080 | |
AUDIO | ||
Input | RCA x 1 | |
Output | RCA x 1 | |
2-way audio | Take up channel one audio input | |
RECORD | ||
Resolution | 1080P: 1920 x 1080, 720P: 1280 x 720, WD1, D1 | |
Frame Rate | 720P: 200 fps ( PAL ) 240 fps ( NTSC ) 1080P: 100 fps ( PAL ) 120 fps ( NTSC ) | |
Bit Rate | 1 M ~ 4 Mbps | |
Encode | VBR / CBR | |
Quality | 6 Level | |
Mode | Manual, Timer, Motion | |
File Manager | Lock, unlock, reserving time | |
IP Input | ||
Resolution | 3MP/1080P/960P/720P/WD1/D1 | |
Frame Rate | 3MP: 50 fps ( PAL ) 60 fps ( NTSC ) 1080P: 100 fps ( PAL ) 120 fps ( NTSC ) 960P/720P: 100 fps ( PAL ) 120 fps ( NTSC ) | |
PLAYBACK | ||
Playback | 8 CH | |
Search | Time / calendar search, event ( motion ) | |
Smart Search | Highlighted date and time to display the channel record | |
Function | Play, Pause, FF, FB, Digital zoom | |
ALARM | ||
Mode | Motion, Video Loss | |
Input | NO | |
Output | NO | |
Triggering | Record, PTZ move, e-mail, etc | |
NETWORK | ||
Interface | RJ45 10M/100M/1000M adaptive ethernet network port x 1 | |
Protocol | TCP / IP, UDP, DHCP, DNS, PPPOE, DDNS | |
Others | 10 users online, dual stream | |
CELLPHONE | ||
OS | iPhone, Andriod | |
Function | Multi-screen surveillance ( for certain model ) , record, snapshot, PTZ control, save the device list | |
I/O | ||
HDD | SATA x 1 | |
RS485 | RS485 x 1, one for PTZ, another for keyboard | |
USB | USB 2.0 x 2, one for mouse, another for USB backup device | |
IR Controller | Optional | |
OTHERS | ||
Power Supply | DC 12V | |
Consumption | <14W ( without HDD ) | |
Dimensions | 255 mm x 210 mm x 42 mm (W x D x H) | |
Work Environment | -10 ~ 50 °C =, 10% ~ 90% Humidity |
