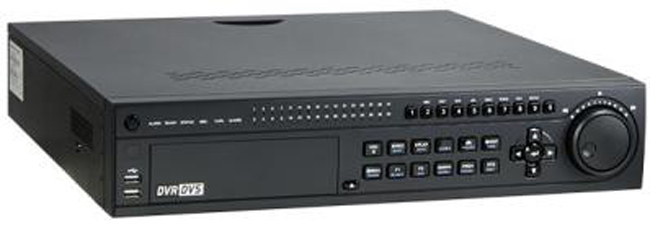

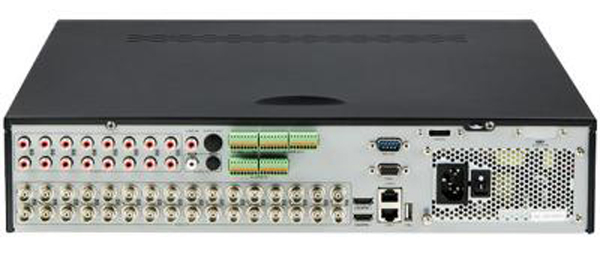

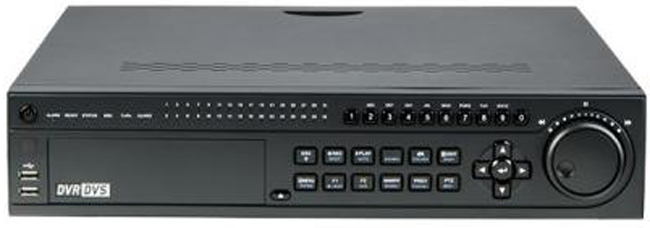

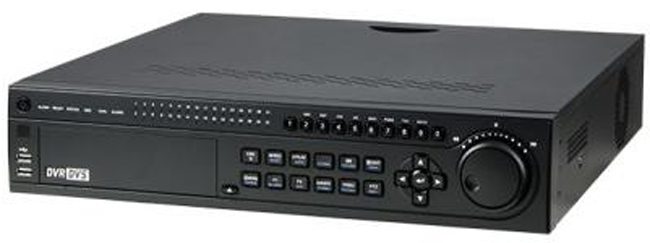

Eyemax TVST-STI832 32CH 1080p HD-TVI Security STI Series DVR System
STI series DVR (Digital Video Recorder) is a new generation recorder developed by Hikvision independently which can connect HD analog/network cameras and Coaxitron cameras and provide powerful surveillance. Combined with multiple advanced technologies, such as audio and video encoding & decoding technology, embedded system technology, storage technology, network technology and intelligent technology. It can both work alone as a recorder and cooperate with other devices to build a comprehensive surveillance system. This series DVR are widely applied in the areas of finance, public security, military, communication, transportation, education, etc.
- Connectable to HD-TVI and analog cameras
- Connectable to the Coaxitron camera/dome with long transmission distance
- Connectable to network cameras
- Simultaneous HDMI1, VGA and HDMI2 outputs; with up to 1920×1080P resolution
- New GUI and support starting record with one key
- Redundant recording, holiday recording schedule configuration
- Instant playback for assigned camera during multi-channel live view mode
- Support up to 32-ch synchronous playback; and reverse playback for multi-channel
- Smart playback to go through less effective information
- Manual video quality diagnostics
- Support VCA alarm (line crossing detection and intrusion detection)
- Customization of tags, searching and playing back by tags
- Locking and unlocking record files
- Support HDD quota and group management; different capacity can be assigned to different cameras under quota mode
- Provide up to 8 SATA interfaces and 1 eSATA interface for record and backup
- 2 self-adaptive 10M/100M/1000M network interfaces, and 3 working modes are configurable: multi-address, load balance, network fault tolerance
- Support access by EZVIZ Cloud P2P
- Support Hikvision DDNS (Dynamic Domain Name System)
- Network detection function.
Model | TVST-STI832 |
Video/Audio Input | |
Video Compression | H.264 |
Analog & HD-TVI Video Input | 32Ch BNC interface (1.0Vp-p, 75?) |
Supported Camera Types | 720P25, 720P30, 720P50, 720P60, 1080P25, 1080P30, CVBS |
IP Video Input | 16-ch (up to 32-ch) Up to 2MP Resolution |
Audio Compression | G.711u |
Audio Input | 16-ch RCA (2.0 Vp-p, 1 K?) |
Two-way Audio In | 1-ch, RCA (2.0 Vp-p, 1 K?) |
Video/Audio Output | |
HDMI 1/VGA & HDMI2 Output | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
Encoding Resolution | Main stream: 1080P(non-real-time) / 720P / VGA / WD1 / 4CIF / CIF Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA |
Frame Rate | Main stream: 1/16 fps ~ Real time frame rate Sub-stream: 1/16 fps ~ Real time frame rate |
Video Bitrate | 32 Kbps-6 Mbps |
Audio Output | 1-ch, RCA (Linear, 1K?) |
Audio Bitrate | 64 Kbps |
Dual Stream | Support |
Stream Type | Video, Video & Audio |
Synchronous Playback | 32Ch |
Playback Resolution | 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF |
Network Management | |
Remote Connections | 128 |
Network Protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS |
Hard Disk | |
SATA | 8 SATA interfaces for 8 HDDs; 1 eSATA interface |
Capacity | Up to 4TB capacity for each disk |
External Interface | |
Network Interface | 2; 10M / 100M / 1000M self-adaptive Ethernet interfaces |
Serial Interface | RS-232, RS-485, Keyboard |
USB Port | 3 × USB2.0 |
Alarm in / out | 16 / 8 |
General | |
Power Supply | 100 ~ 240VAC, 47 ~ 63HZ |
Consumption (without hard disks) | ≤ 67W |
Working Temperature | -10 °C ~+55 °C (14 °F ~ 131 °F) |
Working Humidity | 10%~90% |
Chassis | 19-inch rack-mounted 1.5U chassis |
Dimensions (W x D x H) | 445 × 470 × 90 mm (17.5 × 18.5 × 3.5 inch) |
