Home HD-TVI High Definition Cameras and DVRs HD-TVI Digital Video Recorders 4-32 Channel Eyemax TVST-STI732 32CH 1080p HD-TVI Security STI Series DVR System

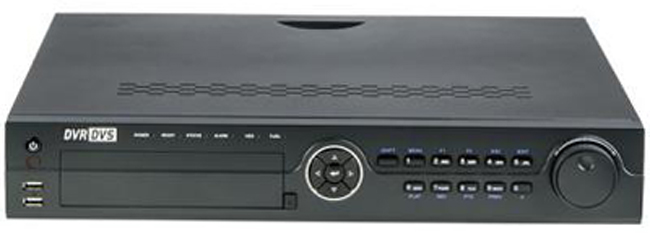

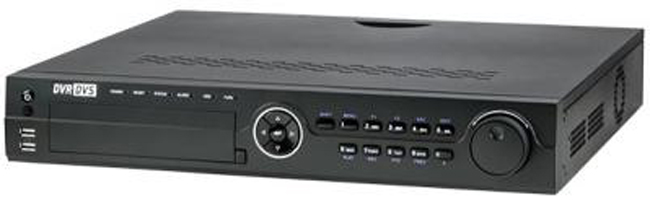

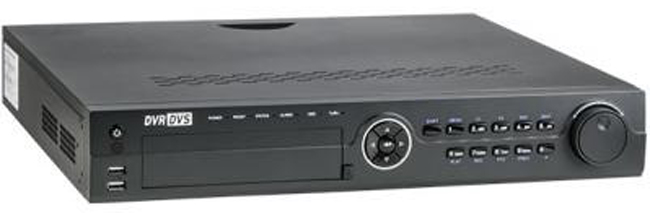

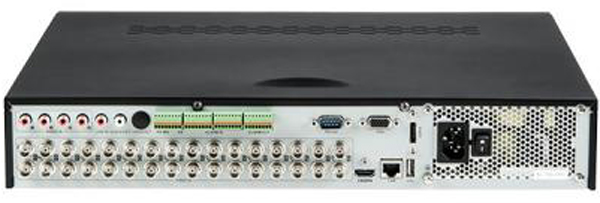

Eyemax TVST-STI732 32CH 1080p HD-TVI Security STI Series DVR System
STI series DVR (Digital Video Recorder) is a new generation recorder developed by Hikvision independently which can connect HD analog/network cameras and Coaxitron cameras and provide powerful surveillance. Combined with multiple advanced technologies, such as audio and video encoding & decoding technology, embedded system technology, storage technology, network technology and intelligent technology. It can both work alone as a recorder and cooperate with other devices to build a comprehensive surveillance system. This series DVR are widely applied in the areas of finance, public security, military, communication, transportation, education, etc.
- Connectable to TVI and analog cameras
- Connectable to the Coaxitron camera/dome with long transmission distance
- Connectable to network cameras
- Simultaneous HDMI and VGA outputs at up to 1920×1080P resolution.
- New GUI and supports starting record with one key
- Redundant recording, holiday recording schedule configuration;
- Instant playback for assigned camera during multi-channel live view mode
- Support up to 32-ch synchronous playback; and reverse playback for multi-channel
- Smart playback to go through less effective information
- Manual video quality diagnostics
- Support VCA alarm (line crossing detection and intrusion detection)
- Customization of tags, searching and playing back by tags;
- Locking and unlocking record files
- Support HDD quota and group management; different capacity can be assigned to different cameras under quota mode
- Provide 4 SATA interfaces and 1 eSATA interface for record and backup
- 1 self-adaptive 10M/100M/1000M network interface
- Support access by EZVIZ Cloud P2P
- Support Hikvision DDNS (Dynamic Domain Name System)
- Network detection function.
Model | TVST-STI732 | Video/Audio Input |
Video Compression | H.264 |
Analog & HD-TVI Video Input | 32Ch |
Supported Camera Types | 720P25, 720P30, 720P50, 720P60, 1080P25, 1080P30, CVBS |
IP Video Input | 8-ch (up to 32-ch) Up to 2MP Resolution |
Audio Compression | G.711u |
Audio Input | 1-ch, RCA (2.0 Vp-p, 1 K?) |
Two-way Audio In | 1-ch, RCA (2.0 Vp-p, 1 K?) | VIDEO/Audio Output |
HDMI/VGA Output | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
Encoding Resolution | Main stream: 1080P(non-real-time) / 720P / VGA / WD1 / 4CIF / CIF Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA |
Frame Rate | Main stream: 1/16 fps ~ Real time frame rate Sub-stream: 1/16 fps ~ Real time frame rate |
Video Bitrate | 32 Kbps-6 Mbps |
Audio Output | 1-ch, RCA (Linear, 1K?) |
Audio Bitrate | 64 Kbps |
Dual Stream | Support |
Stream Type | Video, Video & Audio |
Synchronous Playback | 32Ch |
Playback Resolution | 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF | Network Management |
Remote Connections | 128 |
Network Protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS | Hard Disk |
SATA | 4 SATA interfaces for 4 HDDs; 1 eSATA interface |
Capacity | Up to 4TB capacity for each disk | External Interface |
Network Interface | 1; 10M / 100M / 1000M self-adaptive Ethernet interface |
Serial Interface | RS-232, RS-485, Keyboard |
USB Port | 3 × USB2.0 |
Alarm in / out | 16 / 4 | General |
Power Supply | 100 ~ 240VAC, 47 ~ 63HZ |
Consumption (without hard disks) | ≤ 65W |
Working Temperature | -10 °C ~+55 °C (14 °F ~ 131 °F) |
Working Humidity | 10%~90% |
Chassis | 19-inch rack-mounted 1.5U chassis |
Dimensions (W x D x H) | 445 × 390 × 70mm (17.5 × 15.3 × 2.7 inch) |
