Surveillance Mega-Store Ultimate Destination for All CCTV Needs
Home HD-TVI High Definition Cameras and DVRs HD-TVI Digital Video Recorders 4-32 Channel Eyemax TVST-PVT-16 16Ch 1080P HD-TVI Security PVT Series DVR System

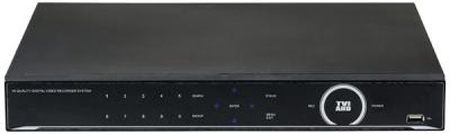

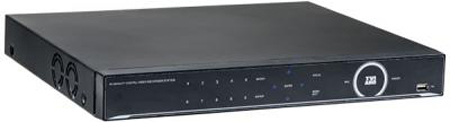

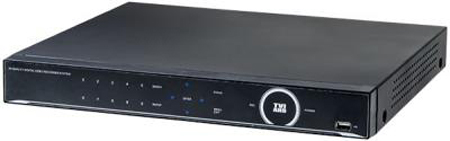

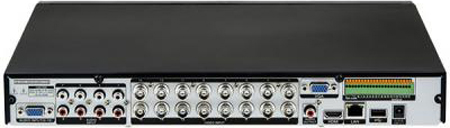

Eyemax TVST-PVT-16 16Ch 1080P HD-TVI Security PVT Series DVR System
Eyemax TVST-PVT-16 16Ch 1080P HD-TVI Security PVT Series DVR System
- Full GUI with alpha blending
- Individual setting of resolution, frame rates and picture quality
- Instant Replay
- Digital Zoom
- Mouse Control
- Weekly scheduler with holiday by 10 minutes setting
- Covert, Disable and Private function of cameras
- Motion Detection with 576 area setting
- Relay alarm output
- PTZ control by RS-485
- Daylight Saving Time and Network Time Setting
- Multi User Authority up to 8 Users
- Deinterlacer upon live and playback
- 22 languages with full graphic
- Individual Network port setting
- Auto Deletion
- Import and Export the configuration
- Interactive setup via network
- POS Interface
- Dual CODEC engine for independent video transmission
Model | TVST-PVT-16 | |
Video | ||
Camera Input | 16 BNC | |
Individual HD/Analog Selectable | All Hybrid | |
Output | 1 HDMI (Main Display) / 1 VGA (Main Display) | |
Audio | ||
Audio Input | 4 RCA | |
Audio Ouput | 1 RCA | |
Sensor In | 4 (NC, NO Selectable) | |
Alarm Out | 1 Relay | |
Operating System | Embedded Linux OS | |
Display | ||
Speed | Real-Time | |
Resolution (Pixel) | 1280X1024, 1280X720, 1920X1080 | |
Split Screen | 1,4,6,8,9,13,16 | |
Main Recording | ||
CODEC | H.264 | |
Resolution (Pixel) | 1080p (1080p25,30) 720p (720p25,30) 960H, D1 (Composite, 960H) | |
Picture Quality | 4 steps (Super, High, Medium, Low) | |
Speed | NTSC Area: 480fps@720p/240fps@1080p PAL Area: 400fps@720p/200fps@1080p | |
Dual Recording | ||
CODEC | H.264 | |
Resolution (Pixel) | 480x256 | |
Playback | ||
Display | 1,4,6,8,9,13,16 | |
Search Mode | Calendar, Event, POS, Panorama, Thumbnail | |
Speed | NTSC Area: 60fps@1080p PAL Area: 50fps@1080p | |
Fast/Slow Speed | Normal, REW & FF [Recorded speed x2, x4, x8, x16,x32,x64,x1/2,x1/4], Frame to frame, Pause | |
Network | ||
Network Interface | Gigabit Ethernet | |
Low Resolution (Pixel) | 480x256 (1080p25,30) 480x256 (720p25,30) CIF (Composite, 960H) | |
Speed | NTSC Area: 80fps@720p PAL Area: 80fps@720p | |
Protocol | TCP/IP, HTTP, DHCP | |
Application | Windows 7 / 8 (PC Client system & IE)/ MAC | |
Web Browser | Internet Explorer, Safari, Chrome, Firefox | |
Smart Phone App | Android, iPhone for Live & Search | |
Backup | ||
Interface | USB 2.0 × 2 | |
Backup Device | External HDD, CD & DVD-RW, Network, Thumb Drive | |
The Number of HDD | 2 × SATA | |
Others | ||
Operating Temperature | 5~40°C (41~104F) | |
Relative Humidity | Maximum 80% non-condensing |
