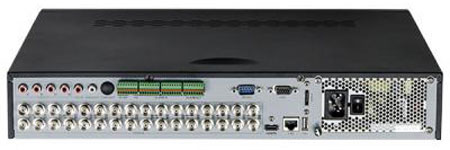

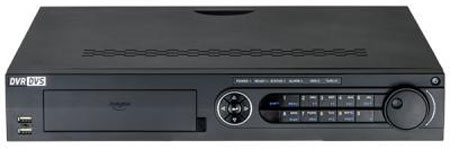

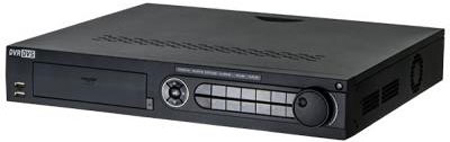

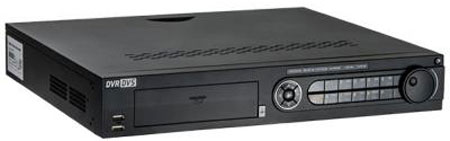

Eyemax TVST-PHD-32T 32CH 1080p HD-TVI Security PHD Series DVR System - Auto Detects Analog/960H/HD-TVI
PHD series DVR is a new generation recorder developed by company independently which can connect HD analog/network cameras and Coaxitron cameras and provide powerful surveillance. Combined with multiple advanced technologies, such as audio and video encoding & decoding technology, embedded system technology, storage technology, network technology and intelligent technology. It can both work alone as a recorder and cooperate with other devices to build a comprehensive surveillance system.
- Connectible to TVI and analog cameras
- Connectible to the Coaxitron camera/dome with long transmission distance
- Connectible to network cameras
- Simultaneous HDMI and VGA outputs at up to 1920×1080P resolution
- New GUI and supports starting record with one key
- Redundant recording, holiday recording schedule configuration
- Instant playback for assigned camera during multi-channel live view mode
- Support up to 32 -ch synchronous playback; and reverse playback for multi-channel
- Smart playback to go through less effective information
- Manual video quality diagnostics
- Support VCA alarm (line crossing detection and intrusion detection)
- Customization of tags, searching and playing back by tags
- Locking and unlocking record files
- Support HDD quota and group management; different capacity can be assigned to different cameras under quota mode
- Provide 4 SATA interfaces and 1 eSATA interface for record and backup
- 1 self-adaptive 10M/100M/1000M network interface
- Support access by EZVIZ Cloud P2P
- Support DDNS (Dynamic Domain Name System)
- Network detection function.
Model | TVST-PHD-32T | |
Video/Audio Input | ||
Video Compression | H.264 | |
Analog & HD-TVI Video Input | 32Ch / BNC Interface (1.0Vp-p, 75Ω) | |
Supported Camera Types | 720P25, 720P30, 720P50, 720P60, 1080P25, 1080P30, CVBS | |
IP Video Input | 8Ch (up to 32Ch) / Up to 2MP Resolution | |
Audio Compression | G.711u | |
Audio Input/Two-way Audio In | 4-ch, RCA (2.0 Vp-p, 1 KΩ) | |
Two-way audio in | 1-ch, RCA (2.0 Vp-p, 1 KΩ) | |
VIDEO/Audio Output | ||
HDMI/VGA Output | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 10 24 × 768 / 60 Hz | |
Encoding Resolution | Main stream: 1080P(non-real-time) / 720P / VGA / WD1 / 4CIF / CIF Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA | |
Frame Rate | Main stream: 1/16 fps ~ Real time frame rate Sub-stream: 1/16 fps ~ Real time frame rate | |
Video Bitrate | 32 Kbps-6 Mbps | |
Audio Output | 1-ch, RCA (Linear, 1KΩ) | |
Audio Bitrate | 64 Kbps | |
Dual Stream | Support | |
Stream Type | Video, Video & Audio | |
Synchronous Playback | 32Ch | |
Playback Resolution | 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF | |
Network Management | ||
Remote Connections | 128 | |
Network Protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS | |
Hard Disk | ||
SATA | 4 SATA interfaces for 4 HDDs; 1 eSATA interface | |
Capacity | Up to 4 TB capacity for each disk | |
External Interface | ||
Network Interface | 1; 10M / 100M / 1000M self-adaptive Ethernet interface | |
Serial Interface | RS-232, RS-485, Keyboard | |
USB Port | 3 x USB 2.0 | |
Alarm in/out | 16/4 | |
General | ||
Power Supply | 100 ~ 240VAC, 47 ~ 63HZ | |
Consumption (without hard disks) | ≤ 65W | |
Working Temperature | -10 °C ~+55 °C (14 °F ~ 131 °F) | |
Working Humidity | 10%~90% | |
Chassis | 19-inch rack-mounted 1.5U chassis | |
Dimensions (W x D x H) | 445 × 390 × 70 mm (17.5 × 15.3 × 2.7 inch) | |
Weight (without hard disks) | ≤ 5Kg (11.1lb) |
