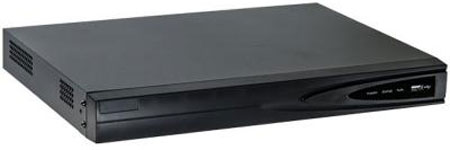

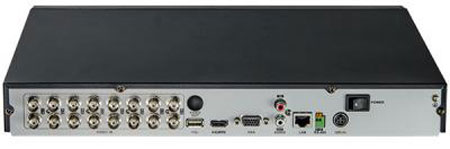

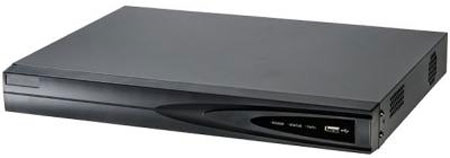

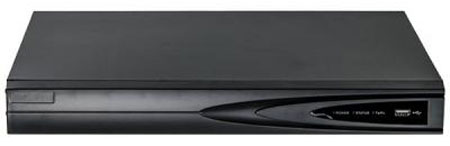

Eyemax TVST-PHD-16T 16CH 1080p HD-TVI Security PHD Series DVR System - Auto Detects Analog/960H/HD-TVI
Eyemax TVST-PHD-16T 16CH 1080p HD-TVI Security PHD Series DVR System - Auto Detects Analog/960H/HD-TVI
- H.264 & Dual-Stream Video Compression
- Support HD-TVI/Analog/IP Camera Triple Hybrid
- Support both HD-TVI & Analog cameras with adaptive access
- Full Channel@720P Resolution Real-Time Recording
- HDMI & VGA Output at up to 1920×1080P Resolution
- Long transmission distance over coax cable
- Support up to 16Ch Synchronous Playback at 1080P Resolution
Model | TVST-PHD-16T | |
Video/Audio Input | ||
Video Compression | H.264 | |
Analog & HD-TVI Video Input | 16Ch / BNC Interface (1.0Vp-p, 75?) | |
Supported Camera Types | 720P25, 720P30, 720P50, 720P60, 1080P25, 1080P30, CVBS | |
Audio Compression | G.711u | |
Audio Input/Two-way Audio In | 1-ch, RCA (2.0 Vp-p, 1 K?) | |
VIDEO/Audio Output | ||
HDMI/VGA Output | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 10 24 × 768 / 60 Hz | |
Encoding Resolution | Main stream: 1080P(non-real-time) / 720P / VGA / WD1 / 4CIF / CIF Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA | |
Frame Rate | Main stream: 1/16 fps ~ Real time frame rate Sub-stream: 1/16 fps ~ Real time frame rate | |
Video Bitrate | 32 Kbps-6 Mbps | |
Audio Output | 1-ch, RCA (Linear, 1K?) | |
Audio Bitrate | 64 Kbps | |
Dual Stream | Support | |
Stream Type | Video, Video & Audio | |
Synchronous Playback | 16Ch | |
Playback Resolution | 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF | |
Network Management | ||
Remote Connections | 128 | |
Network Protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS | |
Hard Disk | ||
SATA | 2 SATA Interfaces | |
Capacity | Up to 4 TB capacity for each disk | |
External Interface | ||
Network Interface | 1; 10M / 100M / 1000M self-adaptive Ethernet interface | |
Serial Interface | 1; standard RS-485 serial interface, half-duplex | |
USB Port | 2 x USB 2.0 | |
General | ||
Power Supply | 12V DC | |
Consumption (without hard disks) | ≤ 20W | |
Working Temperature | -10 °C ~+55 °C (14 °F ~ 131 °F) | |
Working Humidity | 10%~90% | |
Chassis | 380mm 1U chassis | |
Dimensions (W x D x H) | 380 × 290 × 48mm (15.0 × 11.4 × 1.9 inch) | |
Weight (without hard disks) | ≤ 2Kg (4.4lb) |
