Home HD-TVI High Definition Cameras and DVRs HD-TVI Digital Video Recorders 4-32 Channel Eyemax TVST-MAGIC-TP32M MAGIC Plus Series - 32CH Real-time 1080p DVR System

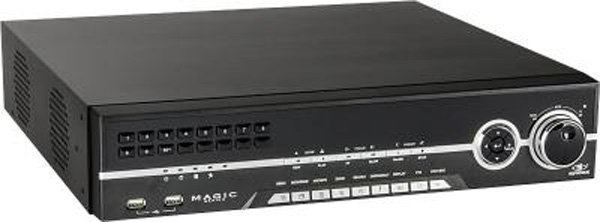

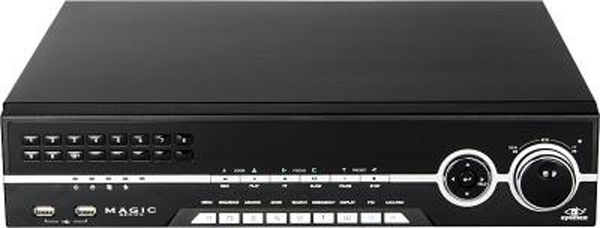

Eyemax TVST-MAGIC-TP32M MAGIC Plus Series - 32CH Real-time 1080p DVR System
What is Magic Technology?
Magic Technology is designed to adopt various video signal types in a single Digital Video Recorder. In other words, any past generation analog CCTV cameras you own, as well as HD-TVI digital CCTV-cameras will work seamlessly with the Magic DVR. Magic technology bridges the gap between analog security and the next generation high definition digital security.

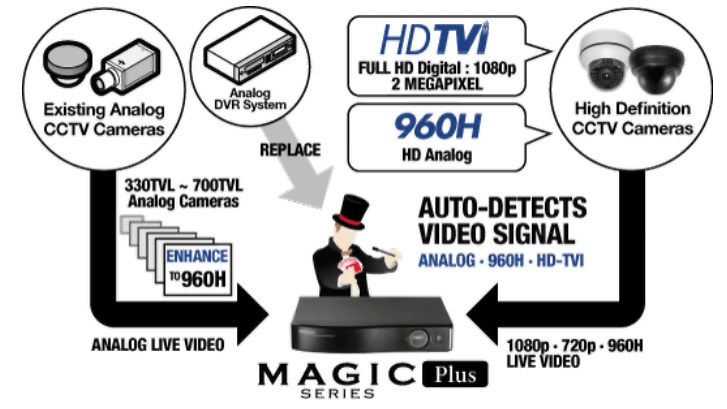

How Magic DVR Works
Upgrade just can't get any easier than this, just unplug all cameras from the old DVR and plug them back into the new Magic DVR, it will just work. Absolutely no training or knowledge is necessary. The best feature about the DVR is that both analog and HD-TVI cameras work in a single DVR. FULL HD security is not a luxury option any more, it is a must for today's security.
- Magic Plus Feature : able to assign IP Camera on a selected channel (Max 4 CH)
- Full GUI with Alpha Blending
- Individual Setting of Resolution, Frame Rates & Picture Quality
- Instant Replay
- Digital Zoom (Live & Playback)
- Mouse Control
- Weekly Scheduler with Holiday by 10 min Setting
- Covert, Disable & Private Function of Cameras
- Motion Detection with 576 Area Settings
- Relay Alarm Output
- PTZ Control by RS-485
- Daylight Saving Time and Network Time Setting
- Multi-User Authority up to 8 Users
- De-interlacer upon Live &Playback
- 22 Languages with Full Graphic
- Individual Network Port Setting
- Auto Deletion
- Import and Export the Configuration
- POS Interface
- Dual CODEC Engine for Independent Video Transmission
- Interactive Setup via Network
Model | TVST-MAGIC-TP32M |
Video | |
Camera input | 32 BNC |
Individual HD/Analog selectable | All Hybrid |
Available source | TVI 720p25,30 / 1080p25,30 / Composite / 960H / Mixed |
IP Camera Spec | ONVIF 2.3, RTSP, H.264, dual stream use gigabit ethernet switch |
Max. # of IPC Support | 4 |
IP Camera Restrictions | Cannot display HD SPOT, SPOT Cannot setup Private ZONE Cannot attach email image Cannot snapshot live image Cannot support Timestamp |
Output | 1 HDMI (Main Display or Programmable HD Spot) 1 VGA (Main Display or Programmable HD Spot) 1 VGA (Main Display or Programmable HD Spot) |
Audio & Sensor | |
Audio input | 16 RCA |
Output | 1 RCA |
Sensor In | 16 (NC, NO selectable) |
Alarm out | 2 Relay, 14 TTL |
Operating System | Embedded Linux OS |
Display | |
Speed | Real Time |
Resolution (Pixel) | 1280X1024, 1280X720, 1920X1080 |
Split screen | 1,4,6,8,9,13,16 |
Main Recording | |
CODEC | H.264 |
Resolution (Pixel) | 1080p, 720p, 960x540 (1080p25,30) 720p, 960x540 (720p25,30) 960H, D1, 480x240, CIF (Composite, 960H) |
Picture quality | 4 steps (Super, High, Medium, Low) |
Speed | 480fps@720p/480fps@1080p (NTSC) 400fps@720p/400fps@1080p (PAL) |
Dual Recording | |
CODEC | H.264 |
Condition | Main Recording is 1080p, 720p |
Resolution (Pixel) | 480x256 |
Playback | |
Display | 1,4,6,8,9,13,16,25,32 |
Search mode | Calendar, Event ,POS , Panorama, Thumbnail |
Speed | 480fps@1080p (NTSC) 400fps@1080p (PAL) |
Fast/Slow speed | Normal, REW & FF [recorded speed x2, x4, x8, x16,x32,x64,x1/2,x1/4], Frame to frame, Pause |
Network | |
Network Interface | Gigabit Ethernet x 2 |
High Resolution (Pixel) | 1080p, 720p(1080p25,30) 720p, 960x540 (720p25,30) 960H, D1 (Composite, 960H) |
Low Resolution (Pixel) | 480x256 (1080p25,30) 480x256 (720p25,30) CIF (Composite, 960H) |
Speed | 180fps@1080p (NTSC) 140fps@1080p (PAL) |
Protocol | TCP/IP, HTTP, DHCP |
Application | Windows 7 / 8 or later (PC Client system& IE) / MAC |
Web Browser | Internet Explorer, Safari, Chrome, Firefox |
Smart phone App | Android, iPhone for live and search |
Backup | |
Interface | USB 2.0 × 3 |
Backup device | External HDD, CD&DVD-RW, Network, USB Thumb Drive |
The # of HDD | 4 SATA + 1 eSATA(upto 12 bays, No capacity limit ; 4TB or more) |
Etc. | |
Power Consumption | 150W |
Operating Temperature | 5~40°C(41~104°F) |
Relative Humidity | Maximum 80% non-condensing |
Dimensions | 430(W)×420(D)×88(H)mm |
