Surveillance Mega-Store Ultimate Destination for All CCTV Needs
What is Magic Technology?
Magic Technology is designed to adopt various video signal types in a single Digital Video Recorder. In other words, any past generation analog CCTV cameras you own, as well as HD-TVI digital CCTV-cameras will work seamlessly with the Magic DVR. Magic technology bridges the gap between analog security and the next generation high definition digital security.
How Magic DVR Works?
Upgrade just can't get any easier than this, just unplug all cameras from the old DVR and plug them back into the new Magic DVR, it will just work. Absolutely no training or knowledge is necessary. The best feature about the DVR is that both analog and HD-TVI cameras work in a single DVR. FULL HD security is not a luxury option any more, it is a must for today's security.
- Full GUI with Alpha Blending
- Individual Setting of Resolution, Frame Rates & Picture Quality
- Instant Replay
- Digital Zoom (Live & Playback)
- Mouse Control
- Weekly Scheduler with Holiday by 10 min Setting
- Covert, Disable & Private Function of Cameras
- Motion Detection with 576 Area Settings
- Relay Alarm Output
- PTZ Control by RS-485
- Daylight Saving Time and Network Time Setting
- Multi-User Authority up to 8 Users
- De-interlacer upon Live & Playback
- 22 Languages with Full Graphic
- Individual Network Port Setting
- Auto Deletion
- Import and Export the Configuration
- POS Interface
- Dual CODEC Engine for Independent Video Transmission
- Interactive Setup via Network

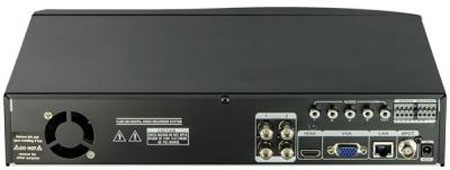

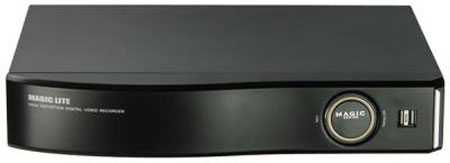

Model | TVST-MAGIC-TL04 | |
Video | ||
Camera Input | 4 BNC | |
Individual HD/Analog | All Hybrid | |
Available Source | TVI 720p25,30/1080p25,30/Composite/960H/Mixed | |
Output | 1 HDMI (Main Display) 1 VGA (Main Display) 1 Composite (Programmable SPOT) | |
Audio | ||
Audio Input | 4 RCA | |
Output | 1 RCA | |
Display | ||
Speed | Real Time | |
Resolution (Pixel) | 1280×1024, 1280×720, 1920×1080 | |
Screen Split | 1/4 | |
Recording | ||
CODEC | H.264 / JPEG for 3G, Dual CODEC | |
Resolution (Pixel) | 1080p (1080p25,30) 720p (720p25,30) 960H, 720H (Composite, 960H) | |
Picture Quality | 4 Steps (Super, High, Medium, Low) | |
Speed | NTSC : 120fps@720p / 50fps@1080p PAL : 100fps@720p / 50fps@1080p | |
Playback | ||
Display | 1/4 | |
Search Mode | Calendar, Event ,POS , Panorama, Thumbnail | |
Speed | NTSC : 30fps@1080p PAL : 25fps@1080p | |
Fast/Slow speed | Normal, REW & FF [recorded speed ×2, ×4, ×8,×16,×32,×64,×1/2,×1/4], Frame to frame, Pause | |
Network | ||
Network Interface | Gigabit Ethernet | |
Speed | NTSC : 20fps@720p PAL : 20fps@720p | |
Protocol | TCP/IP, HTTP, DHCP | |
Application | Windows 7 / 8 (PC Client system & IE)/MAC | |
Web Browser | Internet Explorer, Safari, FireFox, Chrome | |
Smart phone App | MR. Patrol : Android, iPhone for Live & Search | |
Backup | ||
Interface | USB 2.0 × 2 | |
Backup device | External HDD, CD & DVD-RW, Network, Thumb Drive | |
Others | ||
Power Consumption | 60W | |
Operating Temperature | 5 ~40°C(41~104°F) | |
Relative Humidity | Maximum 80% non-condensing | |
Dimension | 13.39(W)×9.84(D)×2.36(H)inches / 340(W)×250(D)×60(H)mm | |
The Number of HDD | 2 SATA | |
Sensor In | 4 (NC, NO selectable) | |
Alarm out | 1 Relay | |
Operating System | Embedded Linux OS |
