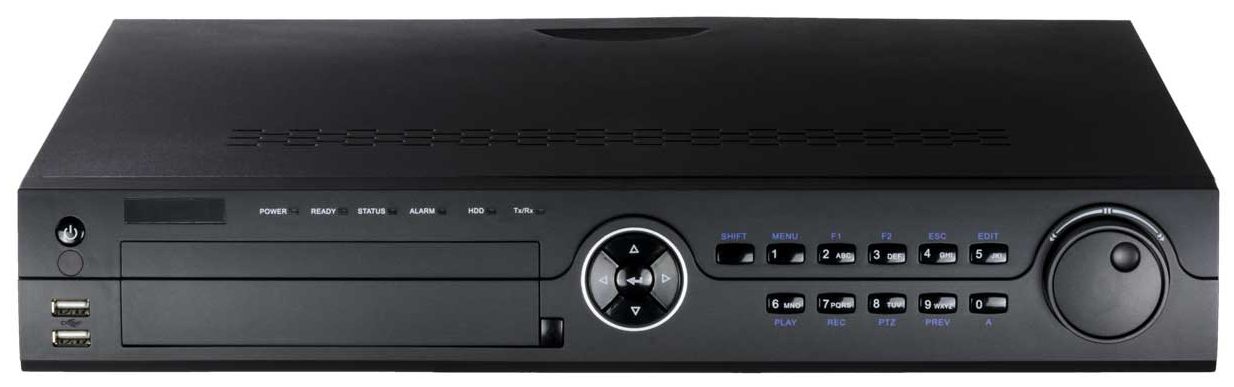

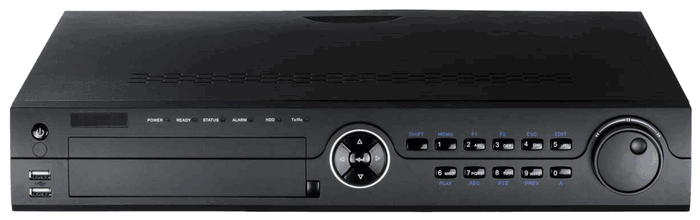

Telpix TVST-AR504-32 32CH 1080P HD-TVI + IP + Analog Digital Video Recorder / P2P EZ setup
- H.264 & Dual-stream video compression
- Support HD-TVI/analog/IP camera triple hybrid
- Support 8 IP Cameras, up to 2 MP
- Disable TVI in order to add more IP
- Support both HD-TVI and analog cameras with adaptive access
- HDMI and VGA output are up to 1920 × 1080P resolution
- Connectable to the Coaxitron camera/dome with long transmission distance
- Support up to 16 Ch. synchronous playback
Model | TVST-AR504-32 | |
Video compression | H.264, H.264+ | |
HD-TVI/ Analog Video Input | 32 Ch. BNC input, 1Vp-p, 75Ω | |
Supported camera types | 720P25, 720P30, 720P50, 720P60, 1080P25, 1080P30, CVBS | |
Audio compression | G.711u | |
Audio Input/ Two-way audio in | 4 Ch. input/1 Ch. two way audio RCA (2.0 Vp-p, 1kΩ) | |
Video output | 1 HDMI, 1 VGA, 1 CVBS, up to 1920 x 1080 | |
Encoding resolution | Main stream: 1080P (non-real-time) / 720P / VGA / WD1 / 4CIF / CIF, Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA | |
Frame rate | Main stream: 1/16 fps ~ Real time frame rate Sub-stream: 1/16 fps ~ Real time frame rate | |
Video bitrate | 32 Kbps to 6 Mbps | |
Audio output | 1 Ch., RCA (Linear, 1KΩ, for VGA output and CVBS output) | |
Audio bitrate | 64 Kbps | |
Dual-stream | Support | |
Stream type | Video & Audio | |
Synchronous playback | 16 Ch. | |
Playback resolution | 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF | |
Remote connections | 128 | |
Type | 4 SATA interfaces for 4 HDDs; 1 eSATA interface | |
Network protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS | |
Capacity | Up to 8 TB capacity for each disk | |
Network interface | 1; 10M / 100M / 1000M | |
self-adaptive Ethernet interface | ||
Serial interface | RS-232, RS-485, Keyboard | |
USB Interface | 3 × USB2.0 | |
Power | 100 ~ 240VAC, 47 ~ 63HZ, <=65W | |
Working temperature | -10°C ~+55°C (14 °F ~ 131 °F) | |
Working humidity | 10% ~ 90% | |
Chassis | 19-inch rack-mounted 1.5U chassis | |
Dimensions (W × D × H) | 17.5"W × 15.3"D × 2.7"H | |
Weight (Without hard disks) | 17.6 lbs |
