Home HD-TVI High Definition Cameras and DVRs HD-TVI Digital Video Recorders 4-32 Channel Telpix TVST-AR326-8 8CH DVR / H.265+ / 5MP TVI / CVI / AHD / 6MP IP / 960H / 4K out / 2CH IP / 2xSATA

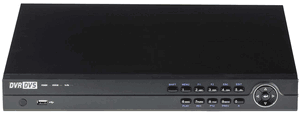

Telpix TVST-AR326-8 8CH DVR / H.265+ / 5MP TVI / CVI / AHD / 6MP IP / 960H / 4K out / 2CH IP / 2xSATA
Telpix TVST-AR326-8 8CH DVR / H.265+ / 5MP TVI / CVI / AHD / 6MP IP / 960H / 4K out / 2CH IP / 2xSATA
- H.265+/H.265/H.264+/H.264 Video Compression
- Support HDCVI, HDTVI, AHD, and Analog Cameras with adaptive access
- 2-Ch, 6 MP IP cameras input, 8-Ch 5MP TVI Input
- Full Channel@1080P resolution real-time recording
- HDMI output up to 4K
- VGA output up to 1080P
- Long transmission distance over coax cable
- Support up to 8 Ch. synchronous playback
Model | TVST-AR326-8 |
Video compression | H.264 / H.264+ /H.265 / H.265+ |
Analog, AHD, HD-TVI and HD-CVI video input | 8 Ch., BNC interface (1.0Vp-p, 75O) |
HDTVI Input | 5MP, 3 MP, 1080p, 720p |
AHD Input | 1080p, 720p |
HDCVI Input | 1080p, 720p |
CVBS Input | PAL/NTSC |
IP Video Input | 2CH, Up to 6MP Resolution / Supports H.265+/H.265/H.264+/H.264 IP cameras |
Audio compression | G.711u |
Audio input | 4-ch, RCA (2.0 Vp-p, 1 KO) |
Video Output | 1 HDMI, 1 VGA, 1 CVBS |
CVBS Output | PAL/NTSC |
VGA output | 1920×1080@60Hz, 1280×1024@60Hz, 1280×720@60Hz, 1024×768@60Hz |
HDMI output | 4K(3840 x 2160)@30Hz, 2K(2560 x 1440)@60Hz, 1920×1080@60Hz, 1280×1024@60Hz, 1280×720@60Hz, 1024×768@60Hz |
Encoding resolution | Up to 5MP @ 12fps for HD-TVI, and up to 6MP @ 20fps for IP camera. |
Frame rate | Up to 20fps @ 5MP TVI, and 20fps @ 6MP IP camera |
Video bitrate | 32 Kbps to 10 Mbps |
Audio output | 1 Ch., RCA (Linear, 1KO) |
Audio bitrate | 64 Kbps |
Dual-stream | Support |
Stream type | Video & Audio |
Synchronous playback | 8 Ch. |
Alarm I/O | 43316 |
Remote connections | 128 Streams |
Network protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
SATA | 2 SATA interface |
Capacity | Up to 10TB capacity |
Network interface | 1; 10M / 100M / 1000M self-adaptive Ethernet interface |
Serial interface | 1 x RS-485 serial interface |
USB port | 1 × USB2.0, 1 x USB3.0 |
Power supply | 12 VDC |
Consumption (without hard disks) | = 10W |
Working temperature | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF) |
Working humidity | 10% ~ 90% |
Dimensions | 380 × 320 × 48 mm (15 × 12.6 × 1.9 inch) |
Weight (without hard disks) | 3.9 lb |
