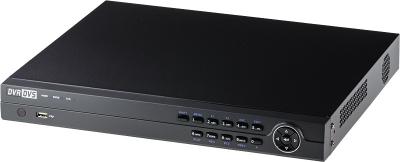

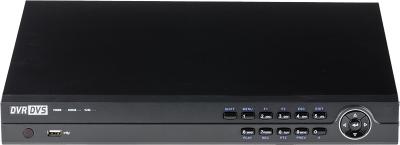

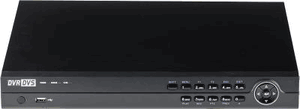

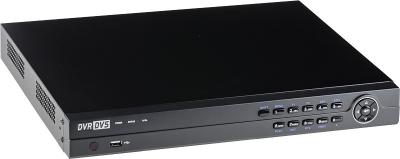

Telpix TVST-AR315-8 AR Series 8CH Quad-brid DVR System supports 3MP/5MP HD-TVI
- 8 Ch Video & 4 Ch audio input
- HD-TVI / AHD / IP / Analog Quad-brid
- 12fps recording at 5MP and 15fps recording at 3MP
- Full channel recoding at 1080P resolution
- HDMI output at up to 4K (3840Χ2160) resolution
- Support CVBS output
- Long transmission distance over coax cable

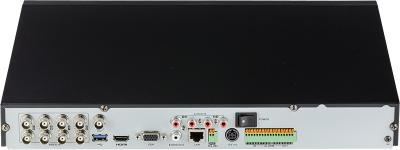

- Front panel and alarm I/O
- 2ΧSATA, 1 USB 2.0 on the front / 1 USB 3.0 on the rear
Model | TVST-AR315-8 | |
Video/Audio input | ||
Video Input | 8Ch BNC interface (1.0Vp-p, 75Ω), supporting coaxitron connection | |
Supported HDTVI input | 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz, 3MP, 5MP | |
Supported AHD input | 720p/25Hz, 720p/30Hz | |
CVBS input | Support | |
IP video input | 2-ch Up to 4.0 MP resolution | |
Audio compression | G.711u | |
Audio input | 4-ch, RCA (2.0 Vp-p, 1 KΩ) | |
Video/Audio output | ||
CVBS output | Support | |
HDMI/VGA output | VGA: 1-ch, 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI: 1-ch, 4K (3840x2160)/30Hz, 2K (2560x1440)/60Hz, 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
Encoding resolution | 5MP@12fps/3MP@15fps/1080p/720p/WD1/4CIF/VGA/CIF | |
Frame rate | Main stream: 25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF@12fps (non-real-time); CIF/QVGA/QCIF (real time) | |
Video bit rate | 32 Kbps to 10 Mbps | |
Audio output | 1-ch, RCA (Linear, 1 KΩ) | |
Audio bit rate | 64 Kbps | |
Dual-stream | Support | |
Stream type | Video, Video & Audio | |
Synchronous playback | 8-ch | |
Network Management | ||
Remote connections | 128 | |
Network protocols | TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF | |
Hard disk | ||
SATA | 2 SATA interface | |
Capacity | Up to 12 TB capacity | |
External interface | ||
Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input) | |
Network interface | 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface | |
USB interface | 1 USB 2.0 on the front panel 1 USB 3.0 on the rear panel | |
Serial interface | 1; RS-485 serial interface, half-duplex | |
Alarm in/out | 8/4 | |
General | ||
Power supply | 12 VDC | |
Consumption (without HDD) | 20 W | |
Working temperature | -10°C to +55°C (14°F to 131°F) | |
Working humidity | 10% to 90% | |
Dimensions (W x D x H) | 380x320x48 mm (15.0x12.6x1.9 inch) | |
Weight (without HDD) | 2 kg (4.4 lb) |
