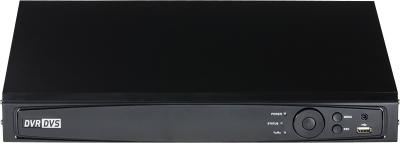

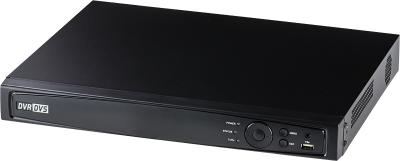

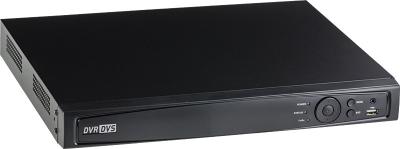

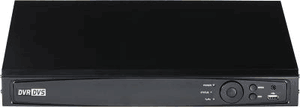

Telpix TVST-AR314-16 AR Series – 16CH Quad-brid DVR System supports 1080P HD-TVI -4K Output

Additional View

Model	TVST-AR314-16
Video/Audio input
Video compression	H.264+/H.264
Analog video input	16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input	1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
AHD input	1080p25, 1080p30, 720p25, 720p30
CVBS input	Support
IP video input	2-ch Up to 1080p resolution
Audio compression	G.711u
Audio input/Two-way audio input	1-ch, RCA (2.0 Vp-p, 1 KΩ)
Video/Audio output
CVBS output	1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 x 576, NTSC: 704 x 480
HDMI/VGA output	HDMI: 1-ch, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz VGA: 1-ch, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Encoding resolution	When 1080p Lite mode not enabled: 1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode enabled: 1080p lite/720p/VGA/WD1/4CIF/CIF
Frame rate	Main stream: When 1080p Lite mode not enabled: For 1080p stream access: 1080p/720p@12fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 1080p lite/720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF/2CIF@12fps; CIF/QVGA/QCIF@25fps (P)/30fps (N)
Video bit rate	32 Kbps to 6 Mbps
Audio output	1-ch, RCA (Linear, 1 KΩ)
Audio bit rate	64 Kbps
Dual stream	Support
Stream type	Video, Video & Audio
Synchronous playback	16-ch
Network Management
Remote connections	128
Network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Hard disk
SATA	2 SATA interface
Capacity	Up to 6 TB capacity for each disk

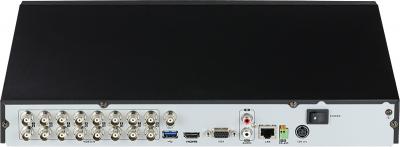

External interface
Network interface	1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
USB interface	Front panel: 1 x USB 2.0 / Rear panel: 1 x USB 3.0
Serial interface	RS-485 (half-duplex)
General
Power supply	12 VDC
Consumption (without HDD)	≤30 W
Working temperature	-10°C to +55°C (14°F to 131°F)
Working humidity	10% to 90%
Dimensions (W x D x H)	315 x 242 x 45 mm (12.4 x 9.5 x 1.8 inch)
Weight (without HDD)	≤2 kg (4.4 lb)
