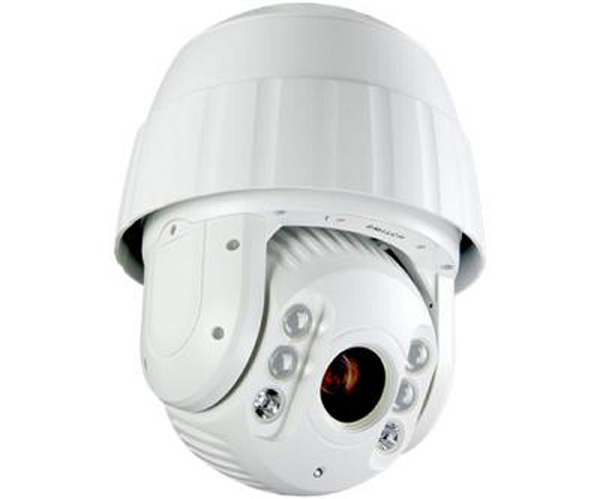

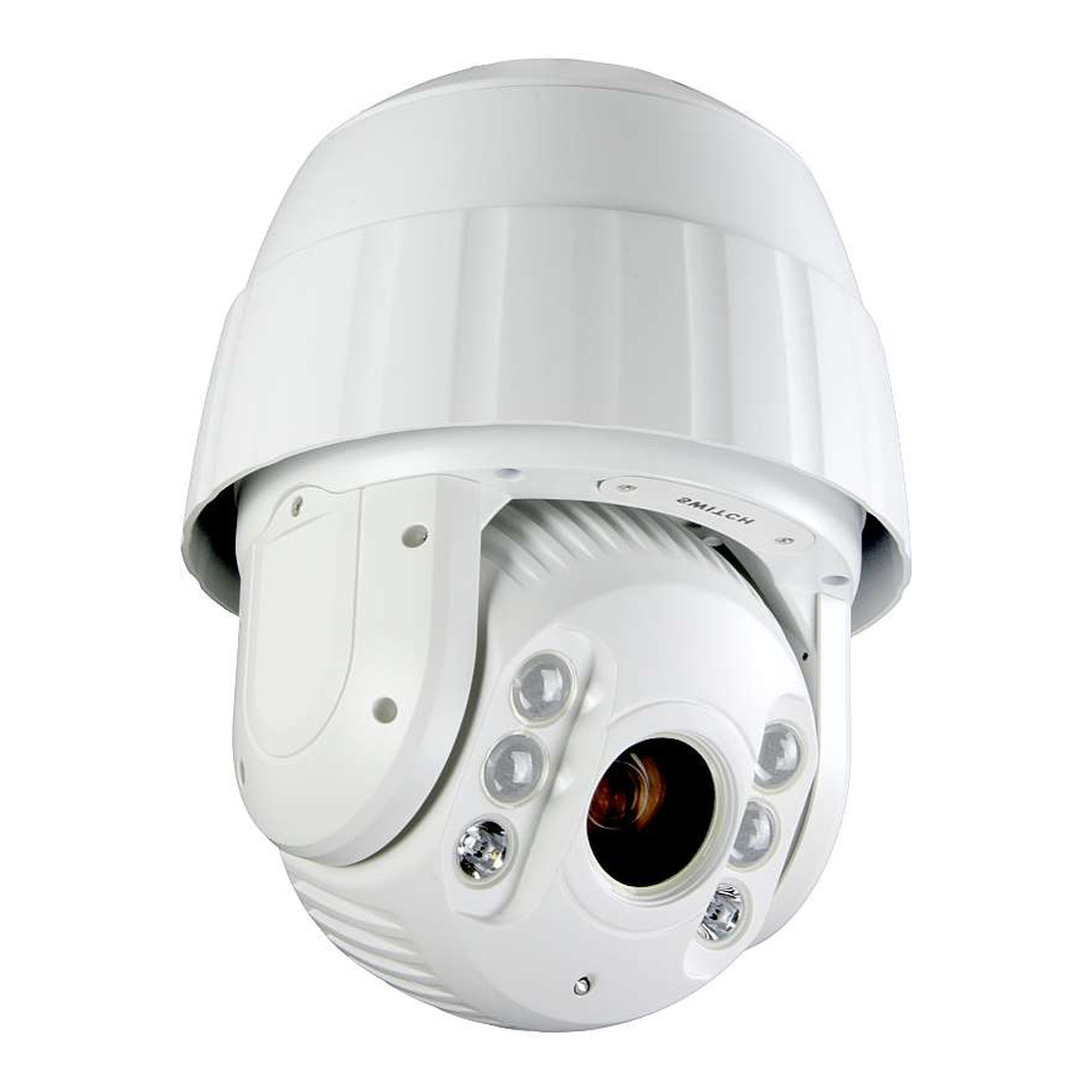

Eyemax TPT-IR-A1230 HD-TVI 1080p(2MP) Outdoor Infrared PTZ Speed Dome Camera
It can be widely applied to places requiring wide-area monitoring display, such as rivers, forests, highways, railways, airports, ports, sentries, squares, parks, scenic sites, streets, stations, large venues, outside of residential areas, etc., and the auto tracking function can be applied to the perimeter protection scenes, e.g., the perimeter of airport, harbor, and residential community.
- 0 Lux minimum illumination
- Up to 120m IR distance
- IR light MTBF reaching up to 30,000 hours
- 1/3” high performance CMOS, up to 1920x1080 resolution
- ±0.1° Preset Accuracy
- Self-adaptive to HIKVISION, Pelco-P/D protocol
- 3D intelligent positioning function
- Power-off memory function: restore PTZ & Lens status after reboot
- Built-in temperature sensor, with display of internal temperature
- Lightning protection, surge protection and voltage transient protection
- IP66 standard (outdoor dome)
- Impact Protection: IEC60068-2-75 test, Eh, 20J; EN50102, up to IK10
- RS-485 communication diagnosis
- Scheduled PTZ movement
- UTC (Up the Coax) function
- Auto focus, auto white balance, backlight compensation and auto/manual day & night switch
- Privacy masks programmable
- 3D DNR, digital WDR
- 360° endless pan range and -5°-90° tilt range
- 300°/s Pan Preset Speed and 200?/s Tilt Preset Speed
- 0.1°-250°/s Manual Pan Speed and 0.1°-150°/s Manual Tilt Speed
- 256 presets programmable; preset image freezing capability
- 8 patrols, up to 32 presets per patrol
- 4 patterns, with the total recording time not less than 10 minutes
- Proportional zoom function
- Park action: auto call up of PTZ movement, after a defined time of inactivity
Model | TPT-IR-A1230 | |
Camera | ||
Image Sensor | 1/3” CMOS | |
Max. Image Resolution | 1920x1080 | |
Frame Rate | 50Hz:25fps(1280×1080) 60Hz:30fps(1280×1080) | |
Min.Illumination | Color: 0.02Lux@(F1.6,AGC ON) B/W: 0.002Lux@(F1.6,AGC ON) 0 lux with IR | |
White Balance | Auto / Manual / ATW / Indoor / Outdoor | |
AGC | Auto / Manual | |
S/N Ratio | ≥50dB | |
3D DNR | Support | |
Backlight Compensation | Support | |
WDR | Digital WDR | |
Shutter Time | PAL: 1-1/10,000s NTSC: 1-1/10,000s | |
Day & Night | IR Cut Filter | |
Digital Zoom | 16x | |
Privacy Mask | 8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen | |
Focus Model | Auto / Semiautomatic / Manual | |
Lens | ||
Focal Length | 4-120mm, 30× | |
Zoom Speed | Approx.3.0s(Optical Wide-Tele) | |
Angle of View | 58-21.7 degree(Wide-Tele) | |
Min. Working Distance | 10-1500mm (Wide-Tele) | |
Aperture | F1.6-F4.4 | |
Pan & Tilt | ||
Pan Range | 360° endless | |
Pan Speed | Pan Manual Speed: 0.1°-160°/s Pan Preset Speed: 240°/s | |
Tilt Range | -15°-90° (Auto Flip ) | |
Tilt Speed | Tilt Manual Speed: 0.1°-120°/s Tilt Preset Speed: 200°/s | |
Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples | |
Number of Preset | 256 | |
Patrol | 8 patrols, up to 32 presets per patrol | |
Pattern | 4 patterns, with the total recording time not less than 10 minutes | |
Power-off Memory | Support | |
Park Action | Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan | |
PTZ Position Display | On / Off | |
Preset Freezing | Support | |
Scheduled Task | Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan | |
RS-485 communication diagnosis | Support | |
Infrared | ||
IR Distance | 120m | |
IR Intensity | Automatically adjusted, depending on the zoom ratio | |
Input / Output | ||
Monitor Output | 1 turbo HD 1080p output 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC | |
RS-485 Interface | Half-duplex mode, Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol | |
UTC function | HIKVISION_C *Need UTC controller if DVR does not support UTC function | |
General | ||
Menu Language | English, Chinese | |
Power | AC 24V Max. 30W(IR: 9W, Heater: 6W) | |
Working Temperature / Humidity | -30°C-65°C(-22°F-149°F)(outdoor dome) 90% or less | |
Protection Level | IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection | |
Mounting | Various mounting modes optional | |
Dimensions | ø220×353.4mm (ø8.66”×13.91”) |
