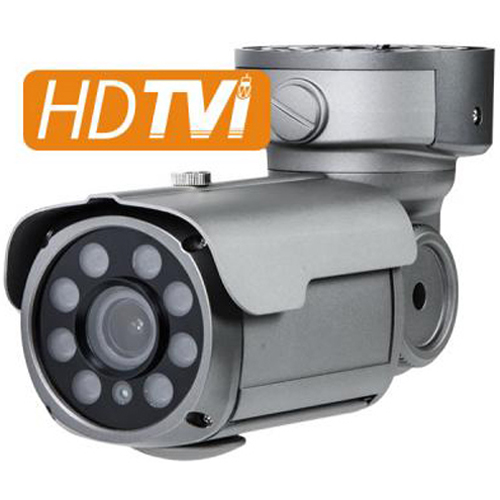

Eyemax TIR-2342FV HD-TVI 1080p(2MP) IR Bullet Camera with 8 COB IR & 2.8~12mm Lens
Eyemax TIR-2342FV HD-TVI 1080p(2MP) IR Bullet Camera with 8 COB IR & 2.8~12mm Lens

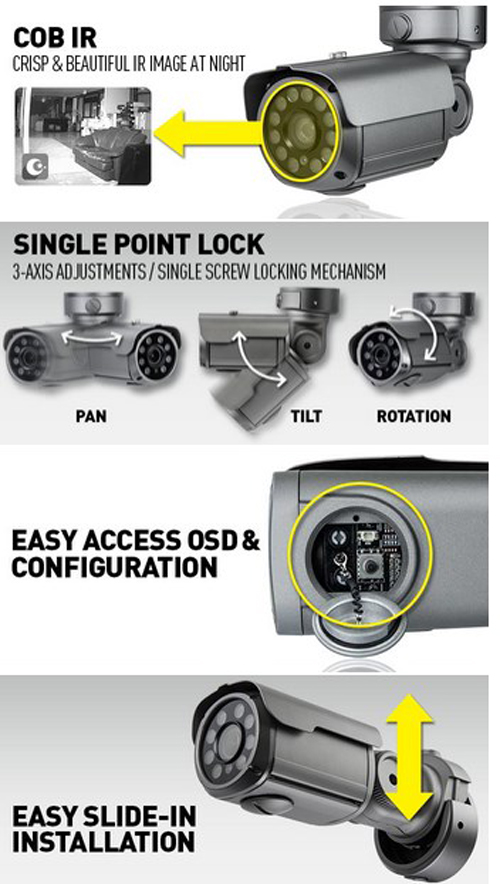

- HD-TVI - High Definition Transport Video Interface 1080p FULL HD Flawless Video
- 1/2.9” Sony CMOS
- 2.8~12mm Auto-Iris Vari-Focal Lens
- 0 Lux at IR On (8 pcs of COB IR LED)
- Upgraded Waterproof Housing (IP68 Rating)
- Smart IR / DNR (Digital Noise Reduction) / True Day & Night (ICR)
- RS-485 Option
- Easy Installation
- DC 12V
Model | TIR-2342FV |
Resolution | 1080p, 720p, 720p CROP |
Sensor | 1/2.9 inch Sony CMOS |
Total Pixels | 2000(H) × 1241(V) = 2,482,000 |
Effective Pixels | 1944(H) × 1092(V) = 2,122,648 |
Scanning System | Progressive |
S/N (Y Signal) | More then 52 dB (AGC Off) |
Video Output | TVI / CVBS: 1.0Vp-p (75ohm) |
Min. Illumination | IR Product: 0 Lux at IR On General Product: 1 Lux at F1.2/0.1 Lux (B/W) |
White Balance | Auto / Auto Ext / Preset / Manual |
Shutter | Auto / Manual (1/30sec ~ 1/60,000sec) |
Brightness | Adjustable (0~20 Step) |
Sens Up | OFF / X2 / X3 / X4 / X5 / X6 / X7 / X8 |
DNR | OFF / Low / Middle / High |
Backlight | OFF / WDR / BLC / HLM |
ACE | OFF / Low / Middle / High |
Day & Night | Auto (Day <--> Night Time Change), Color, B/W, Extern, MDIR (Search Option) |
Privacy | OFF / ON (16 Zone) |
Motion | OFF / SET |
Digital Zoom | 0~127 |
Flip | OFF / ON |
Freeze | OFF / ON |
Language | English, Chinese, Chinese(S), Japanese, Korean |
Sharpness | Adjustable (0~10 Step) |
Defog | OFF / SET |
Communication Port | RS-485 (Pelco-D) |
Smart IR | Adjustable (0~20 Step) |
Operating Temp / Humidity | -10°C ~ +50°C(14°F ~ 122°F) / 30%~80% RH |
Storage Temp / Humidity | -20°C ~ +60°C(-4°F ~ 140°F) / 20%~90% RH |
Power | DC 12V |
Signal Transmission | The distant difference is occurred according to cable option and other circumstances. (Coaxial Cable 300M) |
