Home CCTV Cameras - Analog Spy, Covert and Special Use Cameras Eyemax SQ-PM-60P Sony 620 TVL High Resolution Square Case Camera

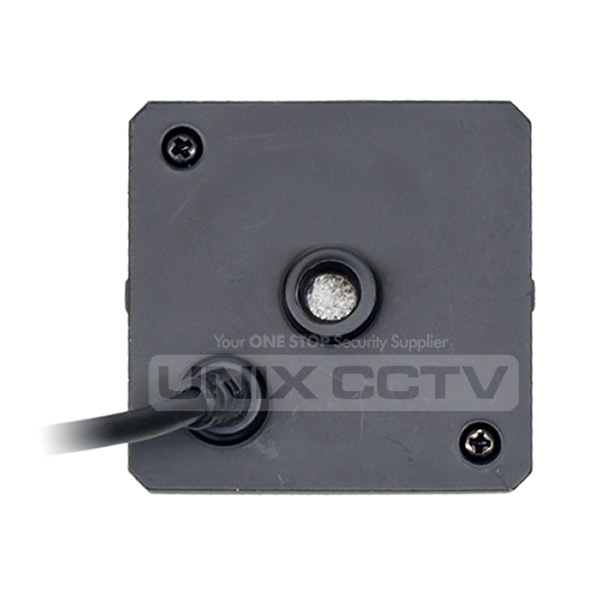

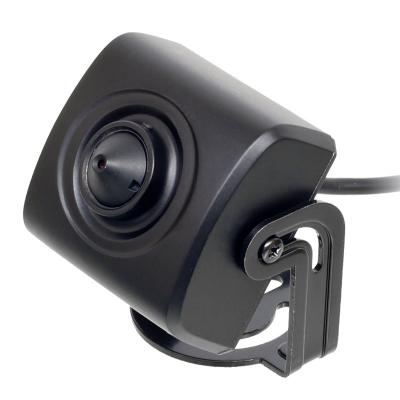

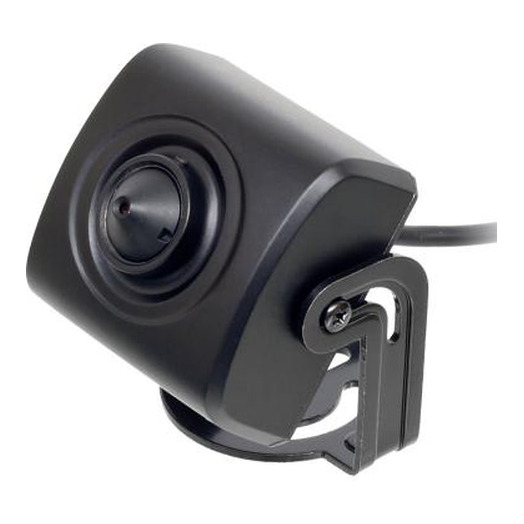

Eyemax SQ-PM-60P Sony 620 TVL High Resolution Square Case Camera
High-Res 620 TV Line
The camera is powered by NEXT chipset that is embodied the top grade of the world at 620 TVL resolution be own image signal technology which is to change the frequency of luminance signal adaptively by a monitoring sector.
FEATURES
- 1/3? Sony Super HAD II CCD
- 3.7mm Hidden Pin-hole Lens
- 620 TVL : Razor sharp high resolution
- 0.1 Lux at F1.2 (Color) / 0.01 Lux (B/W)
- DC 12V
Model | SQ-PM-41 | |
Resolution | 620 TV Line | |
Sensor | 1/3 inch Sony Super HAD II CCD | |
Total Pixels | 811(H) x 508(V) 410K pixels (NTSC) | |
Effective Pixels | 768(H) x 494(V) 380K pixels (NTSC) | |
Scanning System | 2:1 Interface | |
S/N (Y signal) | More than 50 dB (AGC Off) | |
Frequency | Horizontal : 15.734KHz / Vertical : 59.94Hz (NTSC) | |
Video Output | CVBS : 1.0 Vp-p Comp. 75Ω | |
Minimum Illumination | 0.1 Lux at F1.2 (Color) / 0.01 Lux (B/W) | |
White Balance | ATW | |
Electronic shutter speed | Auto (1/60sec ~ 1/100,000sec) (NTSC) | |
Day & Night | Auto | |
Operating Temp. / Humidity | -10°C ~ 50°C / 30%~80% RH | |
Storage Temp. / Humidity | -20°C ~ 60°C / 20%~90% RH | |
Power Source | DC 12V |
