Home CCTV Cameras - Analog Spy, Covert and Special Use Cameras Eyemax SQ-PM-27P Sony Square Case Super HAD Color CCD Camera

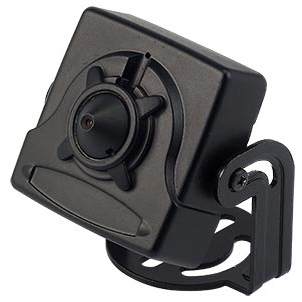

Eyemax SQ-PM-27P Sony Square Case Super HAD Color CCD Camera
The SQ PM 27P is a affordable square cased board camera. It is a high quality camera. The advanced CCD sensor delivers 380 lines of resolution. The 0.4 low light lux is excellent in most lighting conditions including office and retail stores. The built-in electronic iris will keep your picture clear and crisp.
FEATURES
- 1/3? Sony Color CCD with NEXT Image process Chip
- Normal Resolution : 380 TV Line
- Day & Night
- DC 12V
- 3.7mm Pin-Hole Fixed Lens
- Low Light, High Sensitivity
- Low Power Consumption
Model | SQ-PM-27P | |
Image Sensor | 1/3” Super HAD Color CCD | |
Picture elements | 537(H) x 505(V) 270K pixels | |
Effective Pixels | 510(H) x 492(V) 250K pixels | |
Sensing Area | 3.65(H) x 2.74(V) mm | |
Scanning System | 2:1 Interlace / 525 Lines / 60 Fields / 30 Frames | |
Day & Night | Yes | |
Horizontal Resolution | 380 (H) TV Line (Color) / 420 (H) TV Line (B/W) | |
S/N Ratio | More than 48dB | |
Video Output | 1.0Vp-p, 75 Ω | |
Lens | 3.7mm Pin-Hole Fixed Lens | |
Minimum Illumination | 0.3 Lux (Color) / 0.03 Lux (B&W) | |
White Balance | AWB | |
Shutter Speed | 1/60 ~ 1/100,000 Sec. (NTSC) | |
Gamma Characteristic | 0.45 | |
Operational Temperature | -10°C ~ 50°C (14°F ~ 122°F) RH 95% Max | |
Storage Temperature | -20°C ~ 60°C (14°F ~ 122°F) RH 95% Max | |
Power | 12V DC / ±10% | |
Power Consumption | 150mA |
