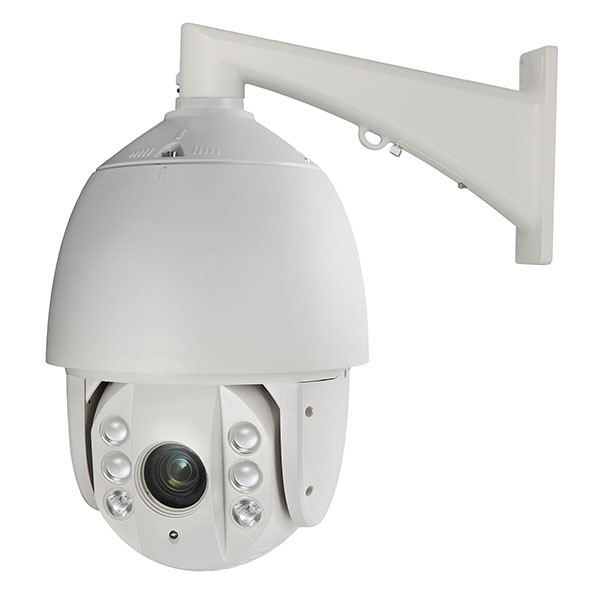

LTS PTZIP772X30IR 1080P 2MP Full HD Resolution 30X Optical Zoom PTZ IP Camera

Call Toll Free 866-446-CCTV (2288) Mon-Fri 9am-6PM EST

0 Items $0.00

free shipping

to USA & CANADA

orders $500 and up

Click For Details

Search Product

Surveillance Mega-Store Ultimate Destination for All CCTV Needs

Lifetime technical support.

One year warranty on all products

Home

IP Cameras and Network Video Recorders NVRs

IP Cameras and NVR's by LTS

LTS Platinum Series IP Surveillance Cameras, All Models

LTS Platinum Series Pan Tilt Zoom PTZ Speed Dome Cameras

LTS PTZIP772X30IR 1080P 2MP Full HD Resolution 30X Optical Zoom PTZ IP Camera

1/2.8�sensor
1080P Full HD resolution
30X optical zoom (4.3-129mm)
6 IR LEDs up to 328ft
True Day/Night, 3D DNR, D-WDR
3D intelligent positioning
Privacy Masking
24VAC /High-PoE power supply

Model	PTZIP772X30IR
Camera
Image Sensor?	1/2.8?? sensor
Effective Pixel	2230K pixels
Min. Illumination	Color: 0.05Lux@F1.6, AGC ON; B/W: 0.01Lux@F1.6, AGC ON; 0 Lux with IR
White Balance	Auto / Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC	Auto / Manual
S / N Ratio	≥50dB
Digital Noise Reduction	3D DNR
Backlight compensation	BLC
Wide Dynamic Range	128X Digital WDR
Shutter Speed	1 ~ 1/10,000s
Day & Night	IR Cut Filter
Focus Mode	Auto / Semiautomatic / Manual
Lens
Focal Length	4.3 ~ 129mm, 30x
Zoom Speed	Approx 3s(Optical Wide-Tele)
Angle of View	65.1 ~2.34 degree (Wide-Tele)
Min. Working Distance	10 ~ 1500mm(Wide-Tele)
Aperture Range	F1.6 ~F5.0
Pan and Tilt
Pan / Tilt Range	Pan: 360? endless; Tilt: -15? ~ 90? (Auto Flip )
Pan / Tilt Speed	Pan Manual Speed: 0.1? ~ 160?/s, Pan Preset Speed: 240?/s Tilt Manual Speed: 0.1? ~ 120?/s, Tilt Preset Speed: 200?/s
Proportional Zoom	Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset	256
Park action	Pattern/Pan scan/Tilt scan/Frame scan/Panorama scan/Random scan
Patrol	8 patrols, up to 32 presets per patrol
Power-off Memory	Support
Infrared
IR Distance	Up to 328ft
IR Intensity	Automatically adjusted, depending on the zoom ratio
Input/ Output
Audio Input	Audio input (Line input), 2 ~ 2.4V[p-p]; output impedance: 1KΩ?10%
Audio Output	Line level, impedance: 600Ω
Network
Ethernet	10Base-T / 100Base-TX, RJ45 connector
Max. Image Resolution	1920?1080
Frame Rate	60Hz: 30 fps (1920?1080),30 fps (1280?960) , 30 fps (1280?720) 50Hz: 25 fps (1920?1080),25 fps (1280?960) , 25 fps (1280?720)
Image Compression	H.264/MPEG4
Audio Compression	G.711u /G.711a /G.726
Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Simultaneous Live View	Up to 6
Streams	Dual Streams
Mini SD Memory Card	Micro SD Slot, up to 32GB
User/Host Level	Up to 32 users, 3 Levels: Administrator, Camera control, Live view only
Security Measures	User authentication (ID and PW), Host authentication (MAC address), IP address filtering
Integration
Application programming	Open-ended API, support Onvif, PSIA and CGI
Web Browser	IE 7, IE 8, IE 9, Chrome 8 +, Firefox 3.5 +, Safari 5 +
General
Working Temperature	-30 ?C ~ 65?C(-22?F ~ 149?F)
/Humidity	90% or less
Power Supply	24 VAC / PoE+;
Power Consumption	Max. 30W / 21W (IR On / Off )
Ingress protection level	IP66 standard TVS 4,000V lightning protection, surge protection and voltage transient protection
Dimension?	Ω220?353.4mm (Ω8.66??13.91? without bracket)
Weight	5.5kg(12.13Ibs without bracket)
