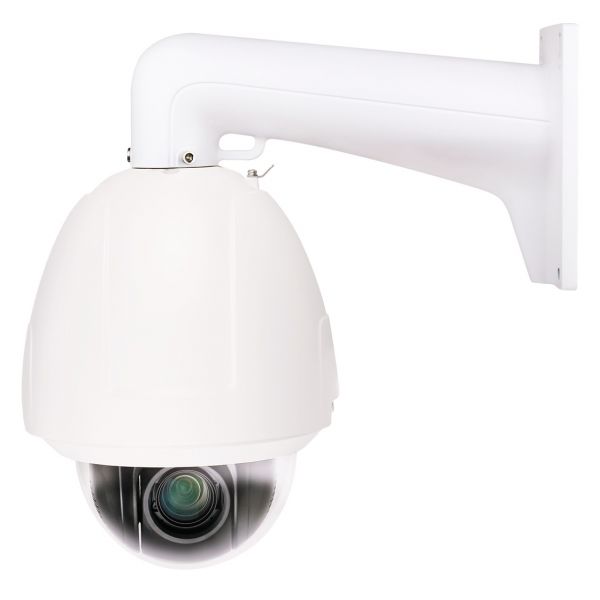

LTS PTZIP752X20 3D DNR Smart Tracking Network PTZ Dome Camera

Model	PTZIP752X20
Camera
Image sensor?	1/3" Progressive Scan CMOS
E ffective pixel?	2230K pixels
Min. illumination?	Color: 0.05Lux@F1.6, B/W: 0.005Lux@F1.6
White balance?	Auto / manual / one touch wb / atw
AGC?	Auto / manual
S / N ratio	≥ 50dB
DNR?	Off / normal / expert
BLC	On / Off
Shutter time?	50Hz: 1/25-1/100,000s, 60Hz: 1/30-1/100,000s
Day & night?	IR Cut Filter
Privacy mask?	24 privacy masks programmable; a max. of 8 zones can be masked simultaneously on the same video screen
Focus mode?	Auto / semiautomatic / manual
Lens
Focal length?	4.7 - 94mm, 20x
Zoom speed?	Approx.2.7s (Optical Wide-Tele)
Angle of view?	58.3 - 3.2 degree (Wide-Tele)
Min. working distance?	10 - 1,500mm (Wide-Tele)
Aperture range?	F1.6 - F3.5
Pan and Tilt
Pan range?	360? endless
Pan speed?	Pan manual speed: 0.1? -300?/s, pan preset speed: 540?/s
Tilt range?	-5? - 90? (Auto Flip)
Tilt speed?	Tilt manual speed: 0.1?-240?/s, tilt preset speed: 400?/s
Proportional zoom?	Rotation speed can be adjusted automatically according to zoom multiples
Number of preset?	256
Patrol?	8 patrols, up to 32 presets per patrol
Pattern?	4 patterns, with the recording time not less than 10 minutes per pattern
Power-o memory?	Support
Park action?	Preset / patrol / pattern / pan scan / tilt scan / random scan / frame scan / panorama scan
PTZ position display?	On / Off?
Preset freezing?	Support
Alarm
Alarm input?	7
Alarm output	2 relay outputs,alarm response actions configurable
Alarm actions	Preset, Patrol, Pattern, SD/SDHC card record, Relay output, Notication on client
Input/output
Monitor output?	1.0V[p-p] / 75 , NTSC (or PAL) composite, BNC
Audio input?	Audio input (Line input), 2-2.4V[p-p]; output impedance: 1K , ?10%
Audio output?	Line level, impedance: 600?
Network
Ethernet?	10Base-T / 100Base-TX, RJ45 connector
Max.image resolution?	1920?1080
Frame rate?	50Hz: 25 fps (1920?1080), 25 fps (1280?960) , 25 fps (1280?720); 60Hz: 30 fps (1920?1080), 30 fps (1280?960), 30 fps (1280?720)
Image compression?	H.264 / MJPEG / MPEG4
Audio compression?	G.711ulaw / G.711alaw / G.726
Protocols?	IPv4, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Number of Simultaneous?	Live View Up to 10
Dual streams?	Support
Mini SD memory card?	Manual REC / Alarm REC. Built-in SD/SDHC Slot, up to 32GB
User / host level?	Up to 16 users,3 Levels: Administrator, Camera control, Live view only
Security measures?	User authentication (ID and PW), Host authentication (MAC address)
System Integration
Interface for application programming?	Open-ended API, support Onvif, PSIA and CGI
Client GUI
Camera control?	Pan / tilt, zoom, focus, click centering, drag zoom, iris, preset position call and program, auto mode.
Camera name?	Up to 18 characters
Date & time display?	Time: week: date, 6 formats on the client
Reading patrol message?	Display and reading of preset message contained in each patrol via client software
General
Menu language?	English
RS-485 protocols (optional)	?LTS, Pelco-P, Pelco-D, self-adaptive
Power supply?	24VAC / 3A
Power consumption?	Max. 40W (Heater On), Max. 20W(Heater Off)
Working temperature / humidity?	-30 ?C ~ 65 ?C (-22 ?F ~ 149 ?F) (outdoor) / -10 ?C ~ 50 ?C (14 ?F ~ 122 ?F) (indoor) 90% or less
Protection level?	IP66 standard (outdoor dome); TVS 4,000V lightning protection, surge protect & voltage transient protection
Impact Protection	IEC60068-275Eh, 20J; EN50102, up to IK10
Dimensions?	Φ220 ? 325.5mm ( 8.66" ? 12.81")?
Weight (approx.)?	5Kg (11.02Ibs)
