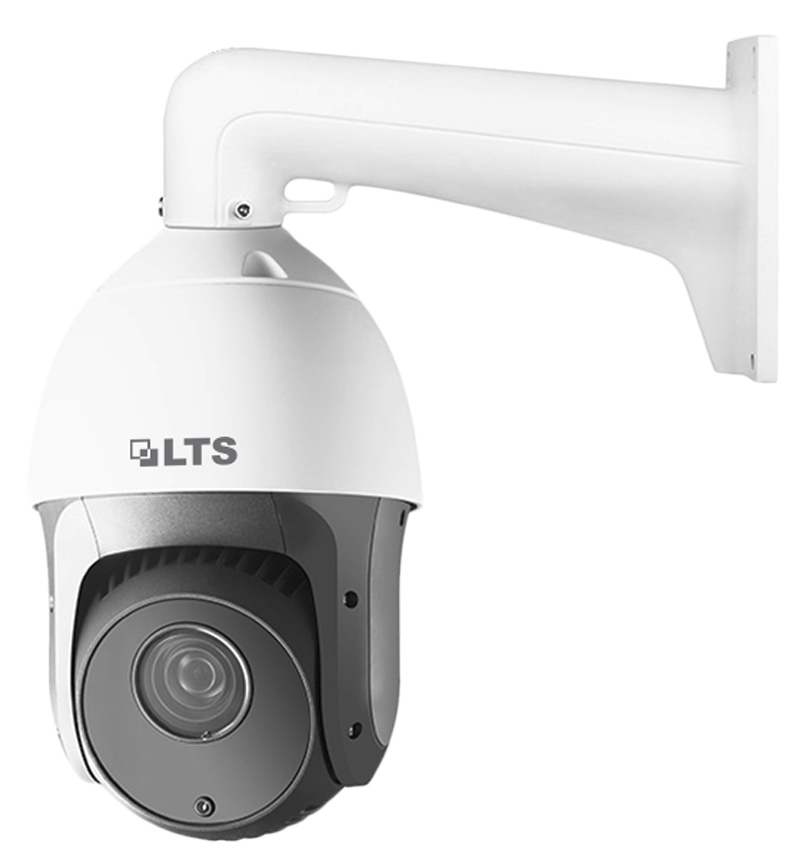

LTS PTZIP512X20IR Platinum IP PTZ High Speed Dome Camera 2.1MP

Model	PTZIP512X20IR
Camera Series	Platinum Series
Camera Resolution	2.1MP / 1080P
Camera Technology	IP / Network
Camera Housing	PTZ
Featured Product	No
Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Min. Illumination	F1.5, AGC On: color: 0.02 Lux, 0 Lux with IR
White Balance	Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC	Auto / Manual
S / N Ratio	≥ 52dB
3D DNR	Support
BLC	Support
HLC	Support
DWDR	Support
Defog	Support
Shutter Time	1/1~ 1/10,000s
Day and Night	IR Cut Filter
Digital Zoom	16X
Privacy Mask	8 Privacy Masks Programmable
Focus Mode	Auto/Semiautomatic/Manual
Lens
Focal Length	4.7-94mm, 20x
Zoom Speed	Approx.3s (Optical Wide-Tele)
Angle of View	58.3 ~ 3.2 degree (Wide-Tele)
Min. Working Distance	10 ~1000mm (Wide-Tele)
Aperture Range	F1.6 ~ F3.5
Pan and Tilt
Pan Range	Pan: 360� endless
Pan Speed	Pan Manual Speed: 0.1� ~ 400�/s, Pan Preset Speed: 400�
Tilt Range	-15� - 90� (Auto Flip)
Tilt Speed	Tilt Manual Speed: 0.1� - 200�/s, Tilt Preset Speed: 200�/s
Number of Preset	300
Park Action	Preset/Patrol/Pattern/Pan scan/Tilt scan/Random Scan/Frame scan/Panorama scan
Patrol	8 Patrols, Up to 32 Presets Per Patrol
Scheduled Task	Auto scan / Frame scan / Random scan / Patrol / Pattern / Preset / Panorama scan / Tilt scan / Dome reboot / Dome adjust / Aux output
Features
Detection	Intrusion detection, Line crossing detection, Audio exception detection, Motion detection
ROI Encoding	Support 4 areas with adjustable levels
Infrared
IR Distance	492ft (150m)
IR Intensity	Automatically Adjusted, depending on the Zoom Ratio
Input/ Output
Alarm Input	2
Alarm Output	1
Alarm Trigger	Intrusion detection, Line crossing detection, Motion detection, Audio Exception Detection, Dynamic analysis, Tampe ring alarm, Network disconnect, IP address conflict, Storage exception
Alarm Actions	Preset, Patrol, Pattern, Recording, Relay output, Upload center, upload FTP, email linkage
Audio Input	1 Mic in/Line in interface, line input: 2-2.4V[p-p]; output impedance: 1KΩ, �10%
Audio Output	1 Audio output interface, line level, impedance: 600Ω
Network
Ethernet	10Bas e-T / 100Base-TX, RJ45 connector
Max. Image Resolution	1920�1080
Frame Rate	60Hz: 30 fps (1920�1080), 30 fps (1280�720) 50Hz: 25 fps (1920 �1080 ), 25 fps (1280�720)
Sub Stream	60Hz:30fps(704�480), 30fps(352�240), 30fps(320�240) 50Hz:25fps(704�576), 25fps(352�288), 25fps(320�240)
Image Compression	H.264/MJPEG
Audio Compression	G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, IC MP, D HCP, PPPoE
Number of Simultaneous Live View	Up to 20 users
Mini SD Memory Card	Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
User/Host Level	Up to 32 users,3 Levels: Administrator, Operator and User
Security Measures	User authentication (ID and PW),Host authentication (MAC address),IP address filtering
General
Interface for Application Programming	Open-Ended API, support ONVIF Profile S, Profile G, PSIA and CGI
Power	24 VAC & Hi-PoE , Max. 30W
Working Temperature/ Humidity	-22�F ~ 149�F(-30 �C ~ 65�C),90% or less
Security Measures	User authentication (ID and PW),Host authentication (MAC address),IP address filtering
Weatherproof Rating	IP66 standard
Surge Protection Level	TVS 4,000V lightning protection, surge protection and voltage transient protection
Dimensions	Φ10.5��14.4�(Φ266.6�365.2mm)
Weight	8.8lbs(4.0kg)

free shipping

orders $500 and up

Search Product

Products

customer services

By Manufacturer

By Price

Surveillance Mega-Store Ultimate Destination for All CCTV Needs

Lifetime technical support.

LTS PTZIP512X20IR Platinum IP PTZ High Speed Dome Camera 2.1MP

SKU#

:

PTZIP512X20IR

Regular Price

:

$799.95

Sale Price

:

$749.95

You Save

$50.00(6.25% )

Availability

:

Usually ships the next business day
