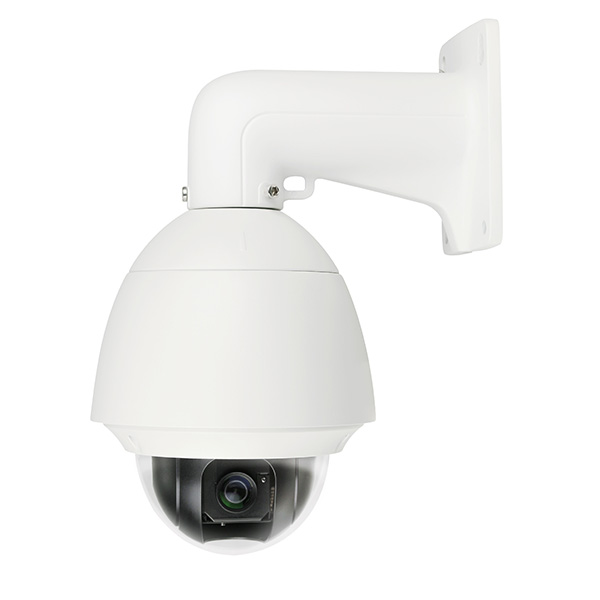

LTS PTZIP212X20 1080p Full HD Resolution 3D Intelligent Network PTZ Dome Camera

Model	PTZIP212X20
Camera
Image Sensor?	1/2.8" Progressive Scan CMOS
Effective Pixel	1920(H) ?1080(V)
Min. Illumination	Color: 0.05Lux @ (F1.6, AGC On), B/W: 0.01Lux @ (F1.6, AGC On)
White Balance	Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC	Auto / Manual
S / N Ratio	≥ 52dB
Digital Noise Reduction	3D DNR
Backlight compensation	BLC
Wide Dynamic Range	Digital WDR
Defog	Support
Shutter Speed	1 ~ 1/10,000s
Day & Night	IR Cut Filter
Digital zoom	16X
Focus Mode	Auto / Semiautomatic / Manual
Privacy Mask	2 privacy masks programmable
Lens
Focal Length	4.7-94mm, 20x
Zoom Speed	Approx 3s(Optical Wide-Tele)
Angle of View	58.3 ~ 3.2 degree (Wide-Tele)
Min. Working Distance	10 ~1000mm (Wide-Tele)
Aperture Range	F1.6 ~ F3.5
Pan and Tilt
Pan / Tilt Range	Pan: 360? endless; Tilt: -2? ~ 90? (Auto Flip )
Pan / Tilt Speed	Pan manual speed: 0.1? ~ 160?/s, Pan preset speed: 160?/s Tilt manual speed: 0.1? ~ 120?/s, Tilt preset speed: 120?/s
Proportional Zoom	Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset	256
Park action	Pattern/Pan scan/Tilt scan/Frame scan/Panorama scan/Random scan
Patrol	8 patrols, up to 32 presets per patrol
Power-off Memory	Support
PTZ position display	On / off
Preset freezing	Support
Local Video and Audio
Alarm input / output	1 input 0-5V DC/1 relay output,alarm response actions configurable
Audio input / putput	1 mic/Line in, 2-2.4V[p-p]; output impedance: 1KΩ, ?10% / 1 output, Line level, impedance: 600Ω
Network
Ethernet	10Base-T / 100Base-TX, RJ45 connector
Max. Image Resolution	1920?1080
Frame Rate	60Hz: 30 fps (1920?1080), 30 fps (1280?720) 50Hz: 25 fps (1920?1080), 25 fps (1280?720)
Image Compression	H.264/MPEG4
ROI encoding	Support 2 areas with adjustable levels
SVC	Support
Audio Compression	G.711u /G.711a /G.726 /MP2L2
Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Simultaneous Live View	Up to 6
Streams	Dual Streams
SD Memory Card	Built-in micro SD card slot, up to 64GB, support edge recording
User/Host Level	Up to 32 users, 3 Levels: Administrator, Camera control, Live view only
Security Measures	User authentication (ID and PW), Host authentication (MAC address), IP address filtering
Integration
Application programming	Open-ended API, support Onvif, PSIA and CGI
Web Browser	IE 7, IE 8, IE 9, Chrome 8 +, Firefox 3.5 +,? Safari 5.02+
General
Working Temperature /Humidity	-22?F ~ 149?F (-30?C ~ 65?C), 90% or less?
Power Supply	24VAC/PoE+(802.3at), Max18W
Ingress protection level	IP66(PTZIP212X20),TVS 4,000V lightning protection, surge protection and voltage transient protection
Dimension?	Φ7.06"?9.43"(Φ179.4?239.5mm )
Weight	Approx. 4.41Ibs (2Kg)

free shipping

orders $500 and up

Search Product

Products

customer services

By Manufacturer

By Price

Surveillance Mega-Store Ultimate Destination for All CCTV Needs

Lifetime technical support.

LTS PTZIP212X20 1080p Full HD Resolution 3D Intelligent Network PTZ Dome Camera

SKU#

:

PTZIP212X20

Regular Price

:

$599.95

Sale Price

:

$459.95

You Save

$140.00(23.34% )

Availability

:

Usually ships the next business day

Quantity

:
