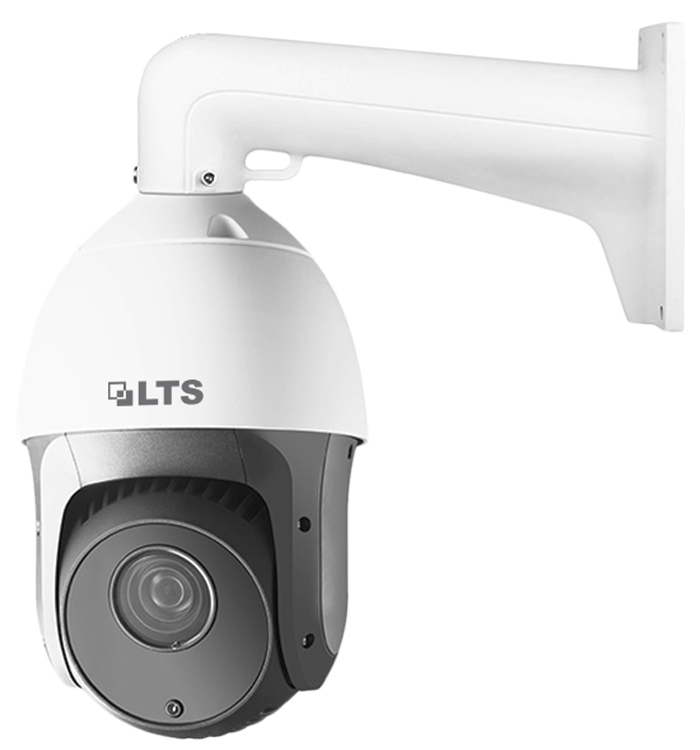

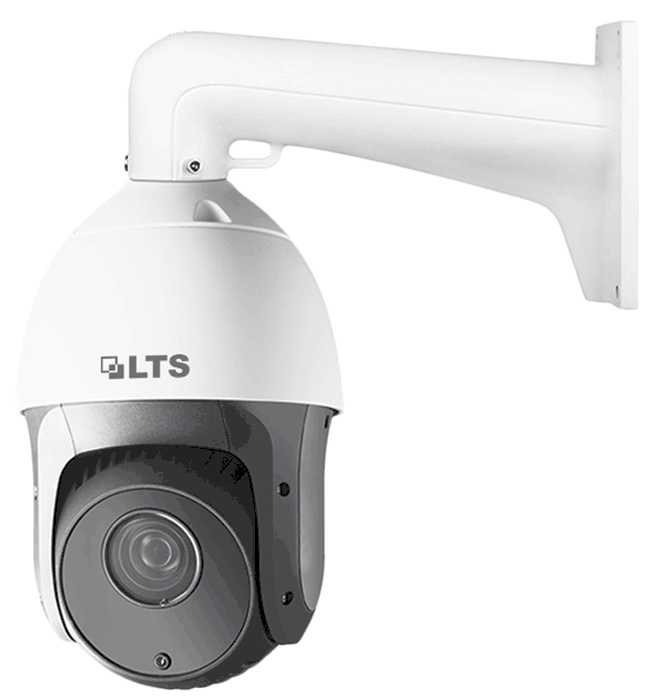

LTS PTZH512X30IR Platinum HD-TVI PTZ High Speed Dome Camera 2.1MP

Model	PTZH512X30IR
Camera Series	Platinum Series
Camera Resolution	2.1MP / 1080P
Camera Technology	TVI
Camera Housing	PTZ
Featured Product	No
Camera
Image Sensor	1/3" Progressive Scan CMOS
Min. Illumination	Color: 0.05Lux@(F1.4, AGC ON); B/W: 0.005Lux@(F1.4, AGC ON)
Max. Image Resolution	1920x1080
White Balance	Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC	Auto / Manual
S / N Ratio	≥50dB
3D DNR	Support
DWDR	Support
Shutter Time	1/1~ 1/10,000s
Day and Night	IR Cut Filter
Privacy Mask	8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen
Lens
Focal Length	4-120mm, 30x
Digital Zoom	16x
Zoom Speed	Approx.3s (Optical Wide-Tele)
Angle of View	49 ~ 2.2 degree (Wide-Tele)
Min. Working Distance	10 ~1000mm (Wide-Tele)
Aperture Range	F1.4 ~ F3.5
Focus Mode	Auto / Semiautomatic / Manual
Pan and Tilt
Pan Range	Pan: 360� endless
Pan Speed	Pan Manual Speed: 0.1� ~ 400�/s, Pan Preset Speed: 400�
Tilt Range	-15� - 90� (Auto Flip)
Tilt Speed	Tilt Manual Speed: 0.1� - 200�/s, Tilt Preset Speed: 200�/s
Number of Preset	256
Patrol	8 Patrols, Up to 32 Presets Per Patrol
Pattern	4 Patterns, with the total recording time not less than 10 minutes
Park Action	Preset/Patrol/Pattern/Pan scan/Tilt scan/Random Scan/Frame scan/Panorama scan
RS-485 Communication Diagnosis	Support
Input/Output
HD Output	10Bas e-T / 100Base-TX, RJ45 connector
CVBS Output	1920�1080
Alarm Input	60Hz: 30 fps (1920�1080), 30 fps (1280�720) 50Hz: 25 fps (1920 �1080), 25 fps (1280�720)
Alarm Output	60Hz:30fps(704�480), 30fps(352�240), 30fps(320�240) 50Hz:25fps(704�576), 25fps(352�288), 25fps(320�240)
RS-485 Interface	H.264/MJPEG
Infrared
IR Distance	492ft (150m)
IR Intensity	Automatically adjusted, depending on the zoom ratio
General
Power	24 VAC & Hi-PoE , Max. 30W
Working Temperature/ Humidity	-30 �C-65�C(-22�F-149�F)/90% or less
Weatherproof Rating	IP66 standard, TVS 4,000V lightning protection, surge protection and voltage transient protection
Dimensions	Φ7.3��13.0�(Φ185�330mm)
Weight	8.8lbs(4.0kg)
