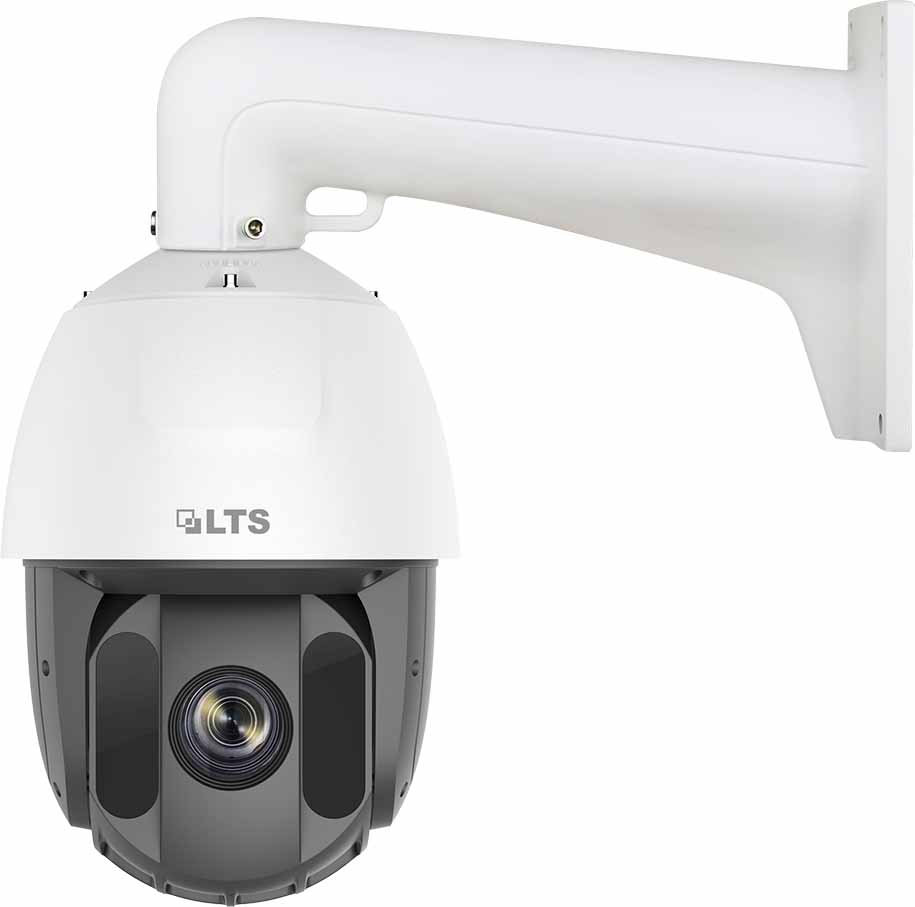

LTS PTZH512X25WIR Platinum 2 MP IR TVI 5-Inch Speed Dome

SKU#

:

PTZH512X25WIR

Regular Price

:

$699.95

Sale Price

:

$599.95

You Save

$100.00(14.29% )

Availability

:

Usually ships the next business day

Mounting Bracket

:

Power Supply

:

Pre-Made Ethernet Cable

:

Quantity

:

LTS PTZH512X25WIR Platinum 2 MP IR TVI 5-Inch Speed Dome

Model	PTZH512X25WIR
Camera Series	Platinum Series
Camera Resolution	2.1MP / 1080P
Camera Technology	IP / Network
Camera Housing	Dome
Featured Product	No
Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Effective Pixel	1920(H) �1080(V)
Min. Illumination	Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
White Balance	Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor
AGC	Auto / Manual
WDR	= 120dB
Digital Noise Reduction	3D DNR
Backlight compensation	BLC
Shutter Speed	PAL: 1/1 s to 1/10,000 s NTSC: 1/1 s to 1/10,000 s
Day & Night	IR Cut Filter
Focus Mode	Auto / Semiautomatic / Manual
Privacy Mask	8 programmable privacy masks
Regional Exposure	Support
Regional Focus	Support
Rapid Focus	Support
Lens
Focal Length	4.8 mm to 120 mm, 25� optical
Zoom Speed	Approx. 3.2 s (optical, wide to tele)
Angle of View	Horizontal: 57.6�to 2.5� (wide to tele)
Min. Working Distance	10 mm to 1500 mm (wide to tele)
Aperture Range	F1.6 ~ F3.5
Pan and Tilt
Pan / Tilt Range	Pan: 360� endless; Tilt: -15� ~ 90� (Auto Flip )
Pan / Tilt Speed	Pan manual speed: 0.1�to 120�/s Pan preset speed: 120�/s
Proportional Zoom	Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset	256
Patrol Scan	10 patrols, up to 32 presets per patro
Pattern Scan	5 patterns, with the total recording time no less than 10 minutes
Power-off Memory	Support
Park Action	Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
3D Positioning	Support
PTZ Position Display	ON/OFF
Scheduled Task	Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
Preset freezing	Support
Input/Output
Video Output	1 turbo 1080p output/1 CVBS output, (NTSC or PAL composite, BNC)
RS-485 Interface	Half-duplex mode Self-adaptive Pelco-P, Pelco-D protocols
UTC function	UTC protocol
General
Working Temperature/Humidity	-30� C to 65� C (-22� F to 149� F)
Power Supply	24 VAC Max.30 W (IR:10 W)
Protection Level	IP66 standard (outdoor dome) TVS 4,000 V lightning protection, surge protection and voltage transient protection
Dimension	ϕ 208 mm � 305 mm (ϕ 8.19" �12.01")
Weight	3.3 kg (7.28 lb.)
