Home HD-TVI High Definition Cameras and DVRs HD-TVI Security Cameras Pan Tilt Zoom, PTZ Speed Dome HD TVI Cameras LTS PTZH213X23-C 720P HD TVI PTZ in-Ceiling Mount Dome Camera

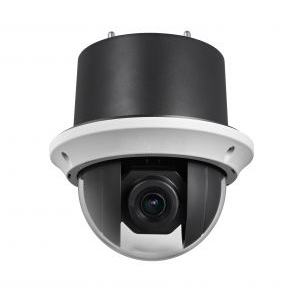

LTS PTZH213X23-C 1.3MP CMOS Image Sensor 720P TVI PTZ Dome Camera
LTS PTZH213X23-C 1.3MP CMOS Image Sensor 720P TVI PTZ Dome Camera
- 1.3MP CMOS Image Sensor
- 720P Video Output
- Adopts HDTVI Technology
- 23X optical zoom, 16X digital zoom
- OSD Menu via UTC technology
- Privacy Masking, 3D DNR, D-WDR, EIS
- 3D intelligent positioning
- True Day&Night
- 4-inch bubble
Model | PTZH213X23-C |
Camera | |
Image Sensor? | 1 / 3"Sensor |
Effective Pixel | 1400K |
Max. Image Resolution | 1280?720 |
Resolution | 60Hz: 60fps(1280?720), 30fps(1280?720) 50Hz: 50fps(1280?720), 25fps(1280?720) |
Min. Illumination | Color: 0.05Lux@( F1.6,AGC ON) B/W: 0.01Lux@( F1.6,AGC ON) |
White Balance | Auto / Manual / ATW / Indoor / Outdoor |
AGC | Auto / Manual |
S / N Ratio | ≥ 50dB |
3D DNR | Support |
Digital WDR | Support |
EIS | Support |
Backlight compensation | Support |
Shutter Time | 1-1/10,000s |
Day & Night | IR Cut Filter |
Digital Zoom | 16X |
Privacy Mask | 8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen |
Focus Mode | Auto / Semiautomatic / Manual |
Lens | |
Focal Length | 4-92mm, 23X |
Zoom Speed | Approx.4.0s(Optical Wide-Tele) |
Angle of View | 49-2.2 degree(Wide-Tele) |
Min. Working Distance | 10-1000mm (Wide-Tele) |
Aperture Range | F1.6-F3.7 |
Pan and Tilt | |
Pan / Tilt Range | Pan: 360? endless; Tilt: -2? ~ 90? (Auto Flip ) |
Pan / Tilt Speed | Pan Manual Speed: 0.1? ~160?/s, Pan Preset Speed: 160?/s Tilt Manual Speed: 0.1? ~120?/s, Tilt Preset Speed: 120?/s |
Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
Number of Preset | 256 |
Patrol | 8 patrols, up to 32 presets per patrol |
Pattern | 4 patterns, with the total recording time not less than 10 minutes |
Power-off Memory | Support |
Park Action | Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan |
PTZ Position Display | On / Off |
Preset Freezing | Support |
Scheduled Task | Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan |
RS-485 communication diagnosis | Support |
Input/output | |
Monitor Output | 1 HD TVI output , (1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC) |
RS-485 Interface | Half-duplex mode, Pelco-P, Pelco-D protocol |
UTC function | Self-adaptive PELCO_C |
General | |
Menu Language | English, Chinese |
Power? | 24 VAC ,Max.12W |
Working Temperature | 14?F-122?F(-10?C-50?C), 90% or less |
Dimension? | Φ6.50"?6.61"(Φ165?168mm) |
Weight (approx.) | 4.41Ibs (2Kg) |
